Specifications
MOQ :
1
Supply Ability :
500000 pcs/month
PoE Ports :
Port 1-4
Payment Terms :
T/T,Western Union
Input Voltage :
AC100-240V
Delivery Time :
2-8 work days
Max PoE Power :
30W per port
Packaging Details :
Packaging dimensions: 250*205*45mm, weight: 0.8kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 17kg
Model Number :
ONV-H3064P
Certification :
CE, FCC, RoHS
Place of Origin :
China
Total Power :
65W
Brand Name :
ONV
Switching Capacity :
12Gbps
Forwarding Rate :
8.93Mpps
Description
6-port Gigabit PoE Switch
Overview

The ONV-H3064P is a Gigabit PoE switch independently developed by ONV. It features 6×10/100/1000Base-T RJ45 ports, with ports 1-4 supporting IEEE802.3af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes standard power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and video access control intercoms via network cable, meeting high-density PoE power supply requirements. Ideal for hotels, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specifications
Model ONV-H3064P ONV-H3108P
Interface Characteristics
Fixed Port 4×10/100/1000Base-T PoE ports (Data/Power)
2×10/100/1000Base-T uplink RJ45 ports (Data)		 8×10/100/1000Base-T PoE ports (Data/Power)
2×10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port Port 1-6 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation Ports 1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (non-blocking) 20Gbps (non-blocking)
Forwarding Rate@64byte 8.93Mpps 14.88Mpps
MAC 2K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power: PWR (Green), Network: Link (Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port Port 1-4 Port 1-8
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR/ Input Voltage 65W/ (AC100-240V) 120W/ (AC100-240V)
Power Consumption Standby <5W, full load<65W Standby <6W, full load<120W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 1.0A Built-in power supply, AC100~240V 50-60Hz, 2.2A
Physical Parameter
Operation TEMP/ Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension 142×115×40mm 195×130×40mm
Net /Gross Weight 0.55kg/0.8kg 0.75kg/1.0kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Features
  • Gigabit rate, RJ45 ports uplink
    • Support IEEE802.3x full-duplex flow control and Backpressure.
    • Support non-blocking wire-speed forwarding for smoother transmission.
    • Provides Gigabit RJ45 ports and dual RJ45 ports uplink for flexible networking
  • Smart PoE power supply
    • Comply with IEEE802.3af/at PoE standard, automatically identify PoE devices.
    • 4×10/100/1000Base-T RJ45 ports support PoE power for security monitoring and wireless coverage
  • Stable and reliable, easy to use
    • CE, FCC, and RoHS certified.
    • Plug and play, no configuration required
    • User-friendly panel with LED indicators for PWR, Link, and PoE status
    • Self-developed power supply with a high redundancy design for stable PoE output
    • Low power consumption, fanless operation, galvanized steel casing for excellent heat dissipation

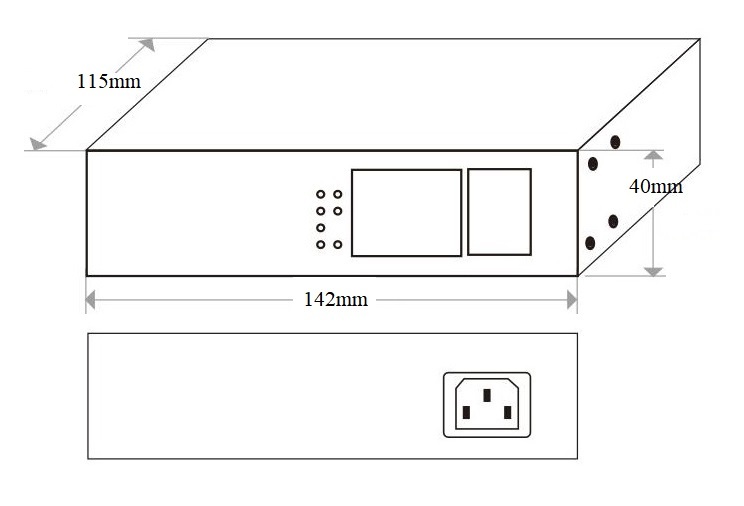

Dimensions
Unmanaged 6 Port Gigabit PoE Switch With 30W Per Port And IEEE802.3af/At

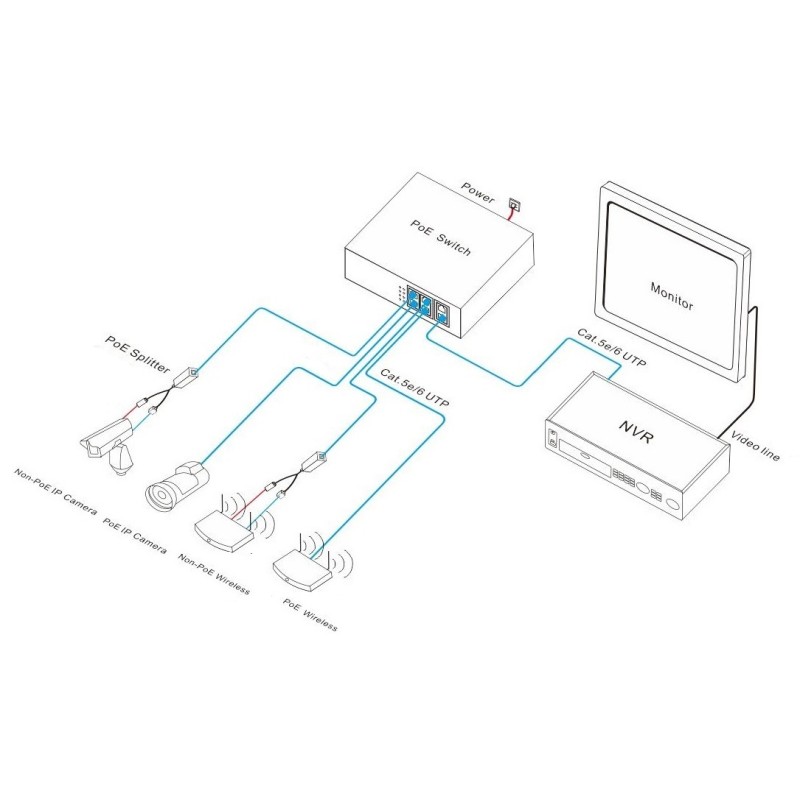

Application
Unmanaged 6 Port Gigabit PoE Switch With 30W Per Port And IEEE802.3af/At
Ordering Information
Model Description Built-in power supply
ONV-H3064P PoE switch with 6×10/100/1000M RJ45 ports. Ports 1-4 support the IEEE 802.3af/at PoE standard. Built-in power supply. 65W
ONV-H3108P PoE switch with 10×10/100/1000M RJ45 ports. Ports 1-8 support the IEEE802.3af/at PoE standard. Built-in power supply. 120W
Packing List
Packing List Qty Unit
6-port Gigabit PoE switch 1 Set
AC Power Line 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
