Specifications
Buffer memory :
768K
Operating temperature :
0°C~+55°C
Power consumption :
Standby<1W, full load<3W
MOQ :
1
Delivery Time :
2-8 work days
Switching capacity :
1.6Gbps
Port type :
10/100Base-TX RJ45
Model Number :
ONV-H1008S
MAC table :
1K
Supply Ability :
500000 pcs/month
Input voltage :
DC5V
Place of Origin :
China
Payment Terms :
T/T,Western Union
Certification :
CE, FCC, RoHS
Packaging Details :
Packaging dimensions: 141*80*84mm, weight: 0.26kg, Carton dimensions: 595*445*390mm, 80 pcs/carton, weight: 22.5kg
Port count :
8
Forwarding rate :
1.19Mpps
Brand Name :
ONV
Dimensions :
140*77.5*34mm
Description
8-port 10/100M Ethernet Switch
Overview

The ONV-H1008S is a 10/100M Ethernet switch independently developed by ONV. It features 8×10/100Base-TX adaptive RJ45 ports. Utilizing a large backplane and cache switching chip design enhances the forwarding rate for large files and effectively resolves video freeze and picture loss issues in high-definition surveillance environments. Ideal for hotels, banks, campuses, factory quarters, and small to medium-sized enterprises seeking cost-effective networking solutions. Unmanaged mode ensures plug-and-play operation with no configuration required.

Technical Specifications
Interface Characteristics
Model ONV-H1005ES ONV-H1008ES
Fixed Port 5×10/100Base-TX RJ45 ports (Data) 8×10/100Base-TX RJ45 ports (Data)
Ethernet Port 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameters
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 1Gbps (Non-blocking) 1.6Gbps (Non-blocking)
Forwarding Rate@64byte 0.74Mpps 1.19Mpps
Buffer Memory 512K 768K
MAC 1K
Jumbo Frame 1536byte
LED Indicator Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/Input Voltage 5W/(DC5V)
Power Consumption Standby<1W, full load<2W Standby<1W, full load<3W
Power Supply External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameters
Operation TEMP/Humidity 0°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H) 99.5×69.5×28.2mm 140×78×34mm
Net/Gross Weight 0.1kg/0.2kg 0.2kg/0.26kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Key Features
  • 10/100M line speed transmission
    Support non-blocking wire-speed forwarding and full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
  • Stable and reliable
    CE, FCC, RoHS certified. Plug and play operation with no configuration required. Low power consumption, fanless design with flame retardant plastic casing. User-friendly panel with LED indicators for Link/Act and PWR status.

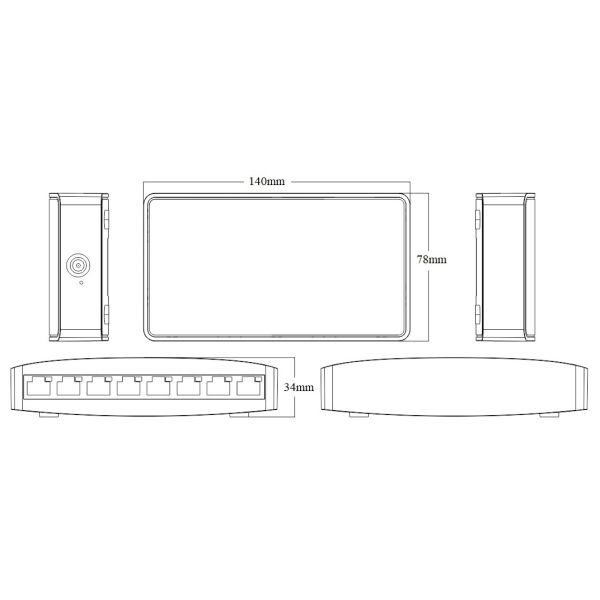

Dimensions
8-port 10/100M Ethernet switch with 1.6Gbps switching capacity for reliable network performance

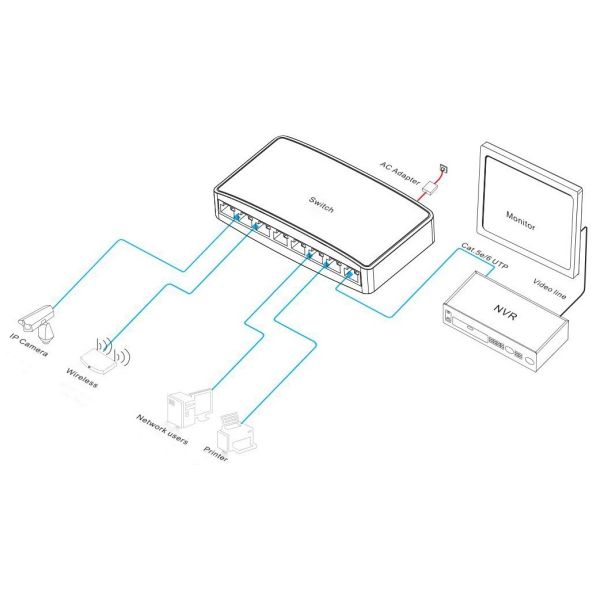

Application
8-port 10/100M Ethernet switch with 1.6Gbps switching capacity for reliable network performance
Ordering Information
Model Description External Power Adapter
ONV-H1005S Ethernet switch with 5×10/100M RJ45 ports. External power adapter. 5W
ONV-H1008S Ethernet switch with 8×10/100M RJ45 ports. External power adapter.
Packing List
Packing List Qty Unit
8-port 10/100M Ethernet switch 1 Set
Power Adapter 5V/1A 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
