Specifications
Supply Ability :
500000 pcs/month
Model Number :
ONV-IPS3021PF
Optical Cable Distance :
20km
MOQ :
1
Packaging Details :
Packaging dimensions: 170*150*50mm, weight: 0.35kg, Carton dimensions: 515*505*337mm, 50 pcs/carton, weight: 19kg
Max Power Per Port :
30W
Payment Terms :
T/T
Operation Voltage :
DC44-56V
Certification :
CE, FCC, RoHS
Switching Capacity :
12Gbps
Place of Origin :
China
Forwarding Rate :
2.98Mpps
Delivery Time :
2-7 work days
Brand Name :
ONV
Uplink Port :
1*1.25G SC fiber port
Description

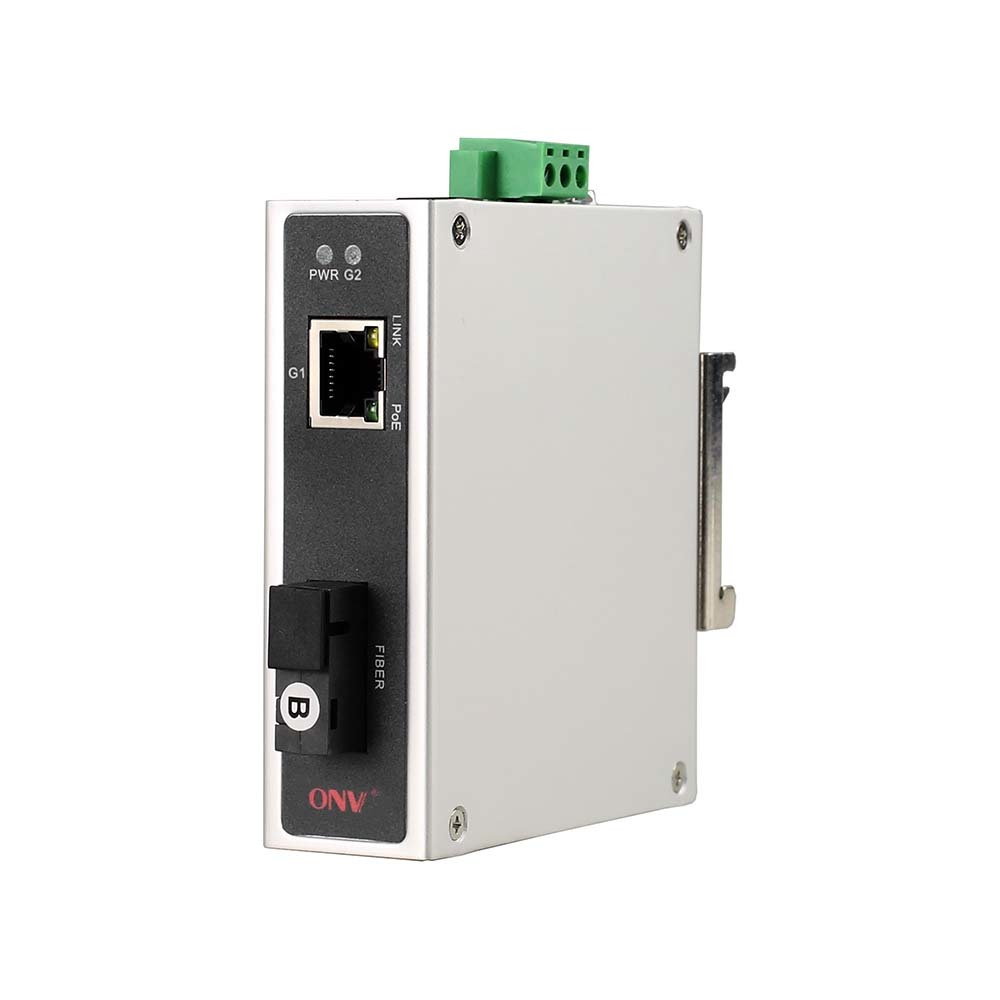

2-port Gigabit Industrial PoE Switch

The ONV-IPS3021PF is a Gigabit industrial PoE fiber switch independently developed by ONV. It features 1*10/100/1000Base-T adaptive RJ45 port and 1*1.25G uplink SC fiber port. Port 1 supports the IEEE 802.3af/at PoE standard with single-port PoE power up to 30W.

As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables to PoE terminal devices such as wireless APs, IP cameras, and industrial sensors. Ideal for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation, metallurgy, green energy, and construction applications.

2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Technical Specifications
Model ONV-IPS3021PF ONV-IPS3021PF-A ONV-IPS3021PF-B
Interface Characteristics
Fixed Port 1*DC5521 power socket, 1*1.25G uplink SC fiber port (Data), 1*10/100/1000Base-T PoE port (Data/Power), 1 V+, V- (3P Phoenix terminal) DC power interface. Dual power interfaces support reverse-connection protection.
Ethernet Port Port 1 supports 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5 or later UTP (≤100m), 1000BASE-T: Cat5e or later UTP (≤100m)
Optical Fiber Port Single-mode dual-fiber, 20 km, SC port Single-mode single-fiber, 20km, SC port
Optical Cable/Distance 20km, 1310nm 20km, TX1310nm/RX1550nm 20km, TX1550nm/RX1310nm
Chip Parameters
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (non-blocking)
Forwarding Rate@64byte 2.98Mpps
MAC 2K
Buffer Memory 2M
Jumbo Frame 9216bytes
LED Indicator Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: 2 (Green)
PoE & Power Supply
PoE Port Port 1
Power Supply Pin 1/2(+) 3/6 (-)
Max Power Per Port 30W, IEEE 802.3 af/at
Power Consumption Standby<3W, full load af<15, at<30W
Operation Voltage DC44-56V
Power Supply No, optional 48V/36W industrial power supply
Physical Parameters
Operation Temp/Humidity -40~+75°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40~+85°C, 5%~95% RH non-condensing
Dimension (L*W*H) 98*88*30mm
Net /Gross Weight 0.25kg/ 0.35kg
Installation Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection

IEC61000-4-3 (RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22 (EN55022): Class A

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnetic field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m 1MHz

IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV

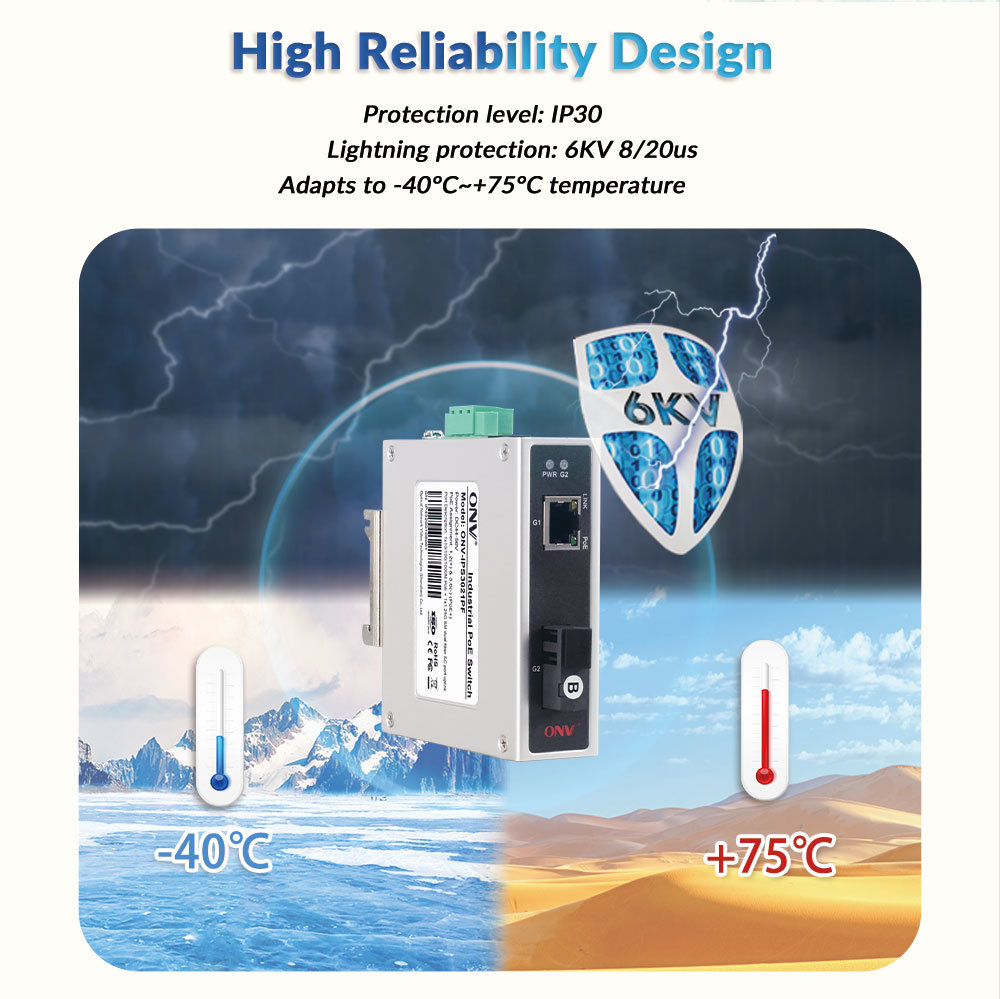

Protection level: IP30, Lightning protection: 6KV 8/20us

IEC61000-4-4(EFT): Power cable: ±4 kV, data cable: ±2 kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150 kHz- 80 MHz)

IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s

IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties IEC 60068-2-6 (Anti vibration), IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Anti shock)
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty 5 years, lifelong maintenance
2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Key Features
Gigabit Access with Uplink SC Fiber Port
  • Supports non-blocking wire-speed forwarding.
  • Supports full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
  • Supports a combination of Gigabit RJ45 port and 1.25G SC fiber port for flexible network building
2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable

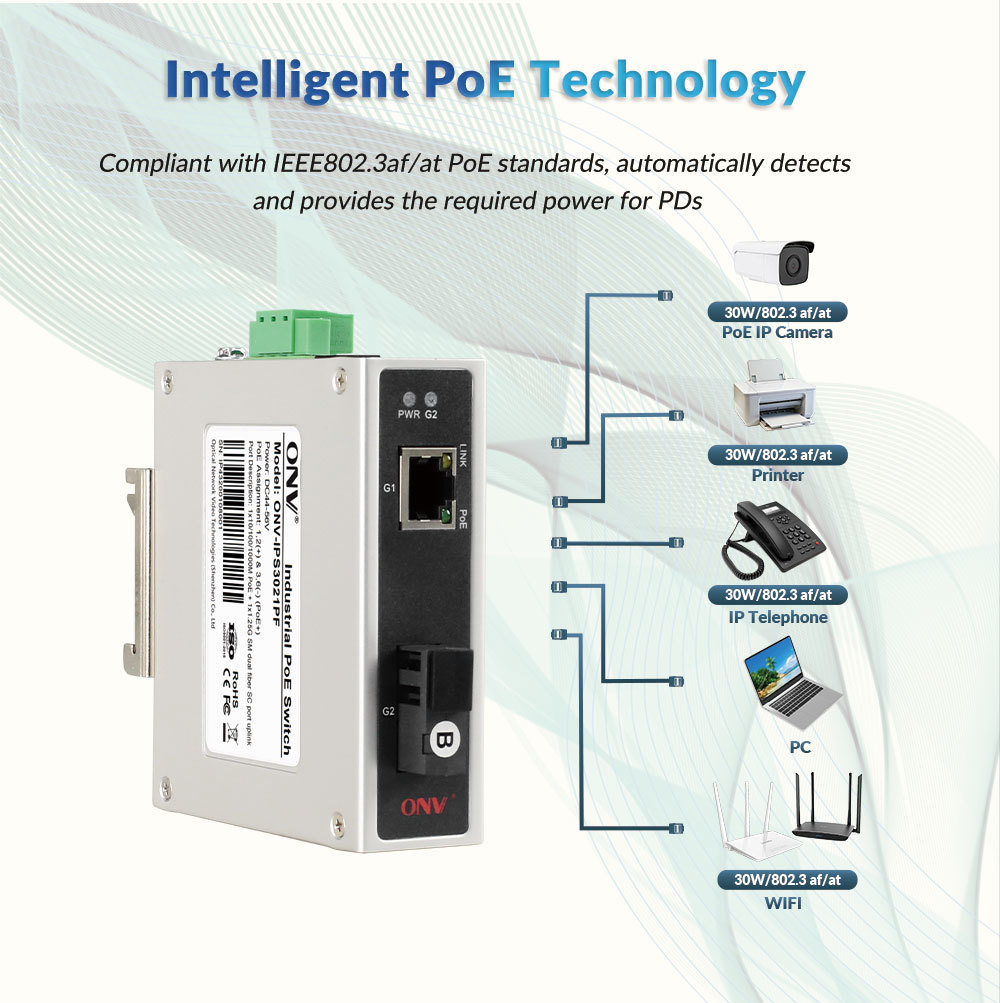

Smart PoE Power Supply
  • Complies with IEEE 802.3 af/at PoE standard
  • Automatically identifies PoE devices for power supply without damaging non-PoE devices.
  • 1*10/100/1000Base-T RJ45 port supports PoE power supply for various industrial scenarios
2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Stable and Reliable Performance
  • CE, FCC, RoHS certified
  • User-friendly panel with LED indicators for PWR, Link, and PoE status
  • Low power consumption, fanless design, aluminum alloy housing with excellent heat dissipation
Dimensions
2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Application Scenarios
2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Ordering Information
Model Description Recommended Power Supply
ONV-IPS3021PF Industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1.25G uplink SC fiber port (1310nm/20km single-mode dual-fiber optical module). Port 1 supports IEEE 802.3 af/at PoE standard. Supports dual DC power input and DIN rail mounting. 36W
ONV-IPS3021PF-A Industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1.25G uplink SC fiber port (1310nm/20km single-mode single-fiber optical module). Port 1 supports IEEE 802.3 af/at PoE standard. Supports dual DC power input and DIN rail mounting. 36W
ONV-IPS3021PF-B Industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1.25G uplink SC fiber port (1550nm/20km single-mode single-fiber optical module). Port 1 supports IEEE 802.3 af/at PoE standard. Supports dual DC power input and DIN rail mounting. 36W

Note: The power supply is not included and needs to be purchased separately.

2-Port Gigabit Industrial PoE Switch with 30W PoE Power 1.25G SC Fiber Port and DIN Rail Mountable
Packing List
Packing List Qty Unit
2-port Gigabit industrial PoE switch 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Recommended Power Supply
Product Model Description Unit
36W DIN Rail industrial power supply GWS-DP36-48

DIN Rail 36W single-set output power supply

Output voltage: DC48V, 0.75A

Input voltage: AC100V~240V, 50- 60 Hz, 0.56A

Operation temperature: -40℃ to +70℃

 PC
