Specifications
Power consumption :
Standby<20W, full load<250W
Dimensions :
330*204*44mm
PoE standard :
IEEE802.3af/at
Forwarding rate :
38.69Mpps @64byte
Model Number :
ONV-H3024PF
Switching capacity :
52Gbps
Delivery Time :
2-8 work days
Input voltage :
AC100-240V
Certification :
CE, FCC, RoHS
Port count :
24*10/100/1000M RJ45, 2*1000M SFP
Supply Ability :
500000 pcs/month
Max PoE power :
30W per port
Packaging Details :
Packaging dimensions: 410*242*90mm, weight: 2.4kg, Carton dimensions: 470*425*525mm, 10 pcs/carton, weight: 25kg
Brand Name :
ONV
MAC table size :
8K
Place of Origin :
China
MOQ :
1
Operating temperature :
-20°C~+55°C
Description
26-port Gigabit PoE Switch
Overview

The ONV-H3024PF is a Gigabit PoE switch independently developed by ONV. It features 24×10/100/1000M adaptive RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-24 support the IEEE802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables.

This switch can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and video access control intercoms via network cable, meeting high-density PoE power supply requirements. Ideal for hotels, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Features unmanaged mode with plug-and-play functionality for easy use.

Technical Specifications
Model ONV-H3016PF ONV-H3024PF
Interface Characteristics
Fixed Port 16×10/100/1000Base-T PoE ports (Data/Power)
2×1000Base-X uplink SFP fiber ports (Data)		 24×10/100/1000Base-T PoE ports (Data/Power)
2×1000Base-X uplink SFP fiber ports (Data)
Ethernet Port Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Optical Fiber Port Default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module. LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 52Gbps (non-blocking)
Forwarding Rate@64byte 26.78Mpps 38.69Mpps
MAC 8K
Buffer Memory 4M
LED Indicator Power: PWR (Green), Network: Link (Green), PoE: PoE (Green), Fiber port: G1/G2 (Green)
PoE & Power Supply
PoE Port Port 1-16 Port 1-24
Power Supply Pin 1/2 (+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR/ Input Voltage 250W /(AC100-240V)
Power Consumption Standby<15W, full load<240W Standby<20W, full load<250W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40°C~+75°C, 5%~95% RH non condensing
Dimension (L×W×H) 270×181×44.5mm 330×204×44mm
Net /Gross Weight 1.6kg /2.0kg 1.9kg /2.4kg
Installation Desktop, wall mount, 1U/19" cabinet
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
26 Port Gigabit PoE Switch With 30W PoE Per Port Gigabit Uplink SFP Ports
Key Features
  • Gigabit Access
    • Support IEEE802.3x full-duplex flow control and Backpressure
    • Support non-blocking wire-speed forwarding for smoother transmission
    • Provide Gigabit RJ45 ports and SFP fiber port uplink for flexible networking
  • Smart PoE Power Supply
    • Comply with IEEE802.3af/at PoE standard
    • Automatically identify PoE devices for power supply without damaging non-PoE devices
    • 24×10/100/1000Base-T RJ45 ports support PoE power
  • Stable and Reliable
    • CE, FCC, RoHS certified
    • User-friendly panel with LED indicators for PWR, Link, PoE status
    • Self-developed power supply with high redundancy for stable PoE power output
    • Low power consumption with galvanized steel housing and excellent heat dissipation

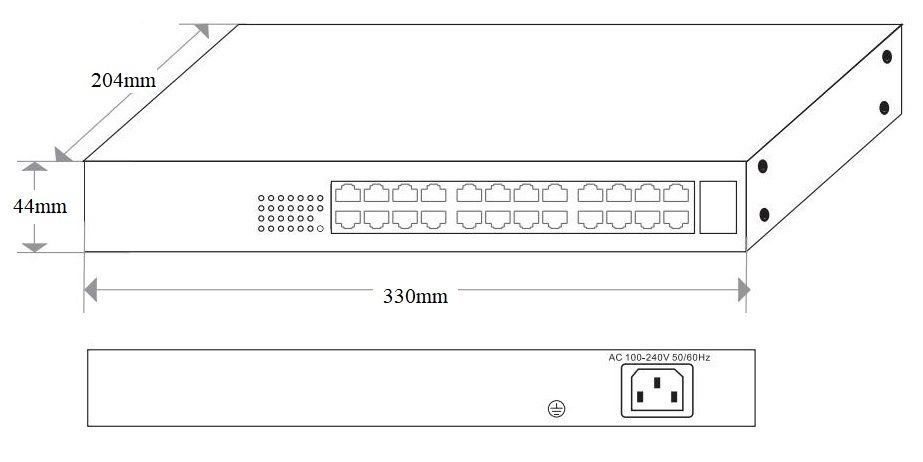

Dimensions
26 Port Gigabit PoE Switch With 30W PoE Per Port Gigabit Uplink SFP Ports

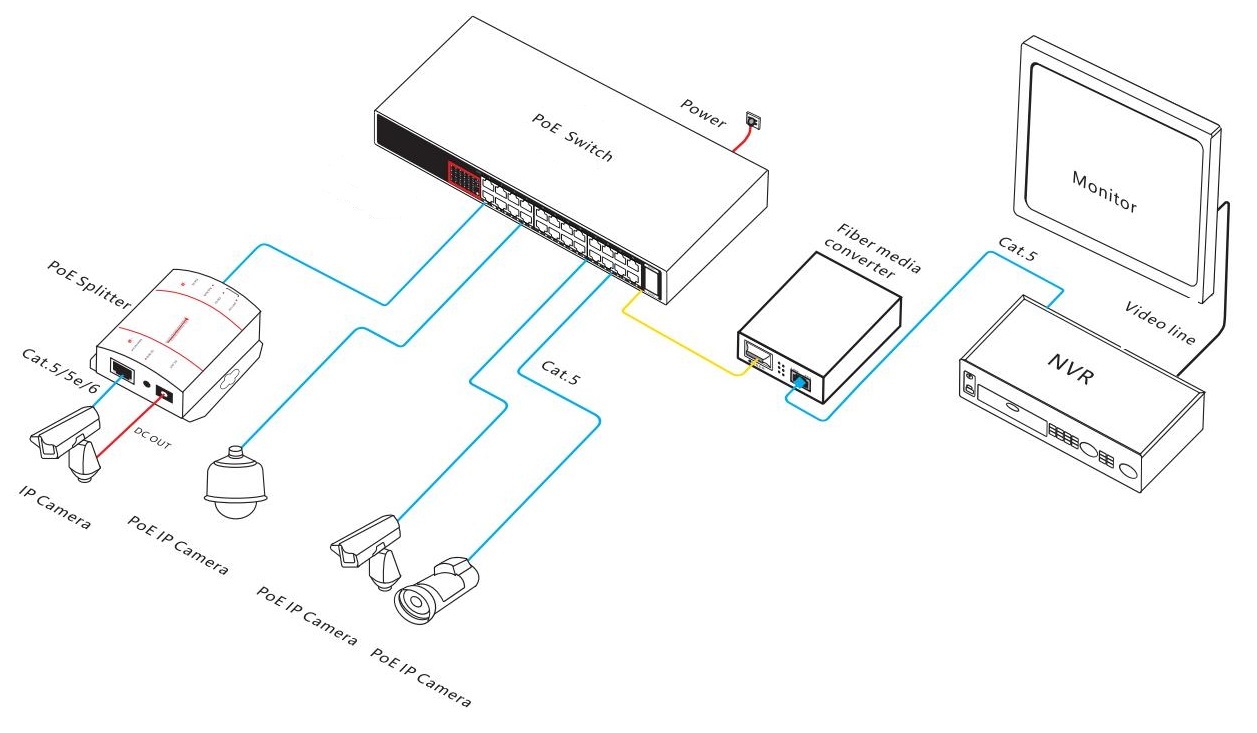

Application
26 Port Gigabit PoE Switch With 30W PoE Per Port Gigabit Uplink SFP Ports
Ordering Information
Model Description Built-in Power Supply
ONV-H3016PF PoE switch with 16×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-16 support IEEE802.3af/at PoE standard. Built-in power supply with 1U/19" cabinet installation. 250W
ONV-H3024PF PoE switch with 24×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-24 support IEEE802.3af/at PoE standard. Built-in power supply with 1U/19" cabinet installation. 250W
Note: The optical module is not included and needs to be purchased separately.

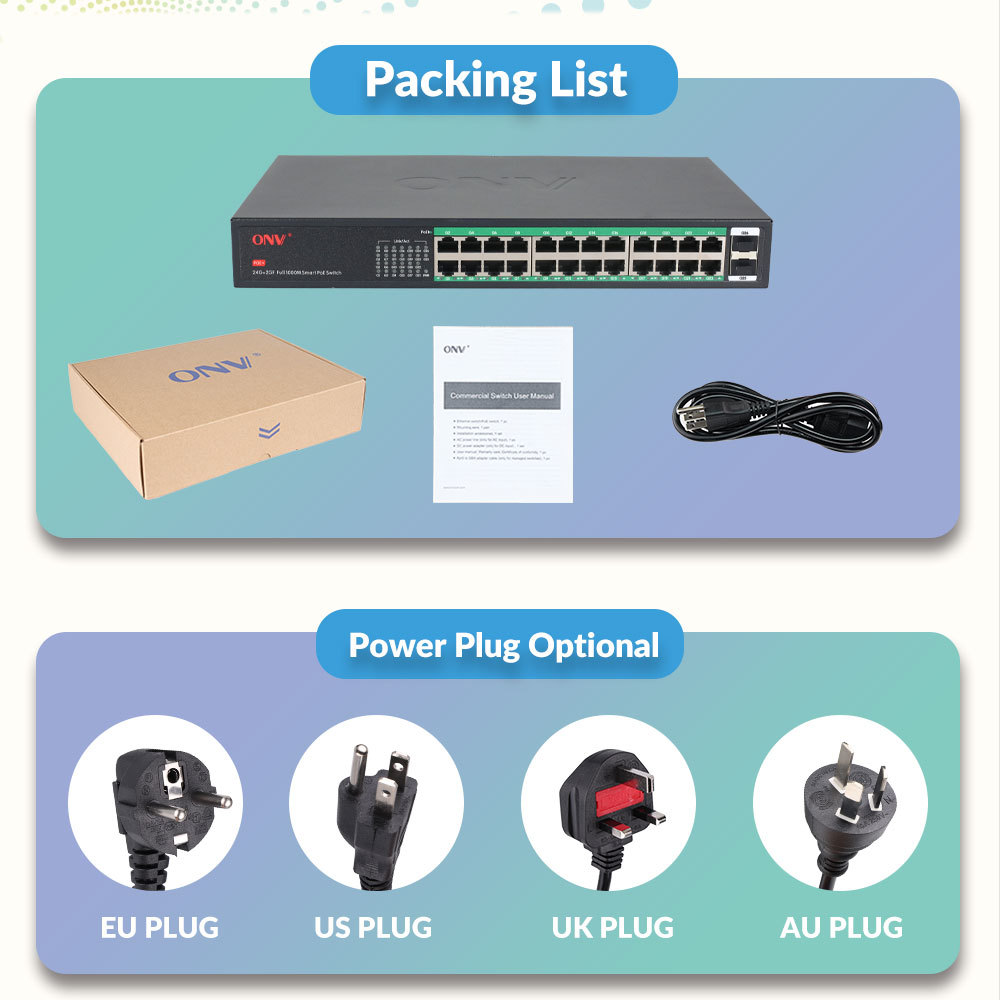

Packing List
Packing List Qty Unit
26-port Gigabit PoE switch 1 Set
AC Power Cable 1 PC
Mounting Kits 1 Set
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 0.55km, 2*LC interface. Support DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, 2*LC interface. Support DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm, transmission distance: 20km, LC interface. Support DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm, transmission distance: 20km, LC interface. Support DDM function and hot plugging. PC
Power Module 2633 1.25G SFP optical module transfers to 10/100/1000M RJ45 port. PC
