Specifications
Max PoE power :
30W per port
PoE ports :
4
MAC table :
2K
Port count :
6
Forwarding rate :
8.93Mpps
Brand Name :
ONV
Buffer memory :
2M
MOQ :
1
Packaging Details :
Packaging dimensions: 250*205*45mm, weight: 0.8kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 17kg
Total power :
65W/110W
Payment Terms :
T/T,Western Union
Switching capacity :
12Gbps
Model Number :
ONV-POE33064PFG
Supply Ability :
500000 pcs/month
Delivery Time :
2-8 work days
Dimensions :
118*95*28mm
Operating temperature :
-20°C~+55°C
Certification :
CE, FCC, RoHS
Place of Origin :
China
Description
6-port Gigabit PoE Switch
Overview

The ONV-POE33064PFG is a Gigabit PoE fiber switch independently developed by ONV. It features 5×10/100/1000M adaptive RJ45 ports and 1×1000M uplink SFP fiber port. Ports 1-4 support IEEE802.3af/at PoE standard with single-port PoE power reaching 30W.

As a PoE power supply device, it automatically detects and recognizes standard power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and visual intelligent building intercoms, meeting high-density PoE power supply network environments. Ideal for hotels, campuses, factory dormitories, and small-to-medium enterprises. Unmanaged model with plug-and-play operation requires no configuration.

Technical Specifications
Model ONV-POE33064PFG ONV-POE33064PFG-at
Interface Characteristics
Fixed Port 1×1000Base-X uplink SFP fiber port (Data)
1×10/100/1000Base-T uplink RJ45 port (Data)
4×10/100/1000Base-T PoE ports (Data/Power)
Ethernet Port Port 1-5 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Optical Fiber Port Gigabit optical fiber interface, optical module not included (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (non-blocking)
Forwarding Rate@64byte 8.93Mpps
MAC 2K
Buffer Memory 2M
LED Indicator Power: PWR (Green), Network: Link (Yellow), POE: PoE (Green)
PoE & Power Supply
PoE Port Port 1-4
Power Supply Pin 1/2(+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR/Input Voltage 65W/DC52V 110W/DC52V
Power Consumption Standby<5W, full load<65W Standby<6W, full load<110W
Power Supply External power adapter, AC100~240V 50-60Hz, 1.1A External power adapter, AC100~240V 50-60Hz, 2.0A
Physical Parameter
Operation TEMP/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension 118×95×28mm
Net/Gross Weight 0.35kg/0.8kg 0.35kg/0.85kg
Installation Desktop, wall mount
Certification & Warranty
Lightning Protection Lightning protection: 6KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance

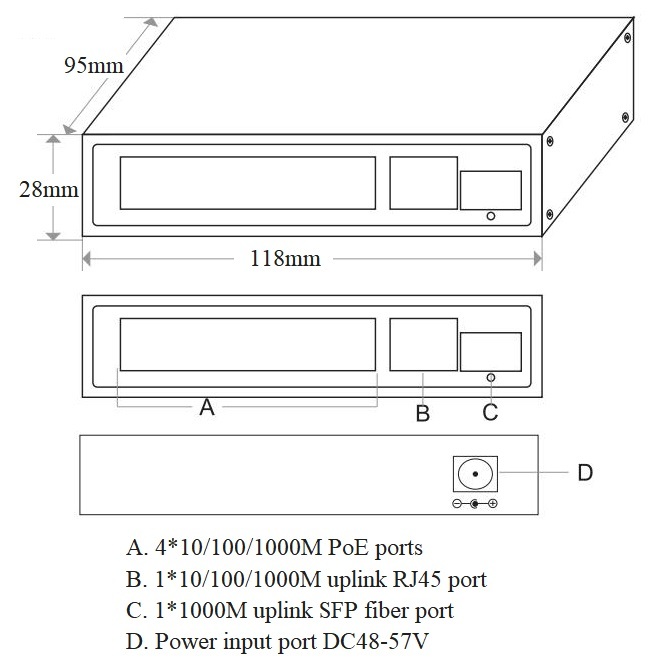

Dimension
6 Port Gigabit PoE Switch 30W Per Port 12Gbps Switching Capacity For IP Surveillance
Key Features
  • Gigabit Access with Uplink SFP Fiber Port - Supports non-blocking wire-speed forwarding, full-duplex based on IEEE802.3x and half-duplex based on backpressure. Gigabit RJ45 port and uplink SFP port combination enables flexible networking for various scenarios.
  • Smart PoE Power Supply - Complies with IEEE 802.3af/at PoE standard, automatically identifies PoE devices for power supply without damaging non-PoE devices. 4×10/100/1000Base-T RJ45 ports meet security monitoring, teleconferencing, and wireless coverage needs. Priority system for PoE ports ensures high-priority ports receive power first when budget is insufficient.
  • Stable and Reliable - CE, FCC, RoHS certified. Plug-and-play operation with no configuration required. Self-developed power supply with high redundancy provides long-term stable PoE power output. User-friendly panel with LED indicators for PWR, Link, L/A, and PoE status. Low power consumption with fan, galvanized steel metal shell, and excellent heat dissipation.
6 Port Gigabit PoE Switch 30W Per Port 12Gbps Switching Capacity For IP Surveillance

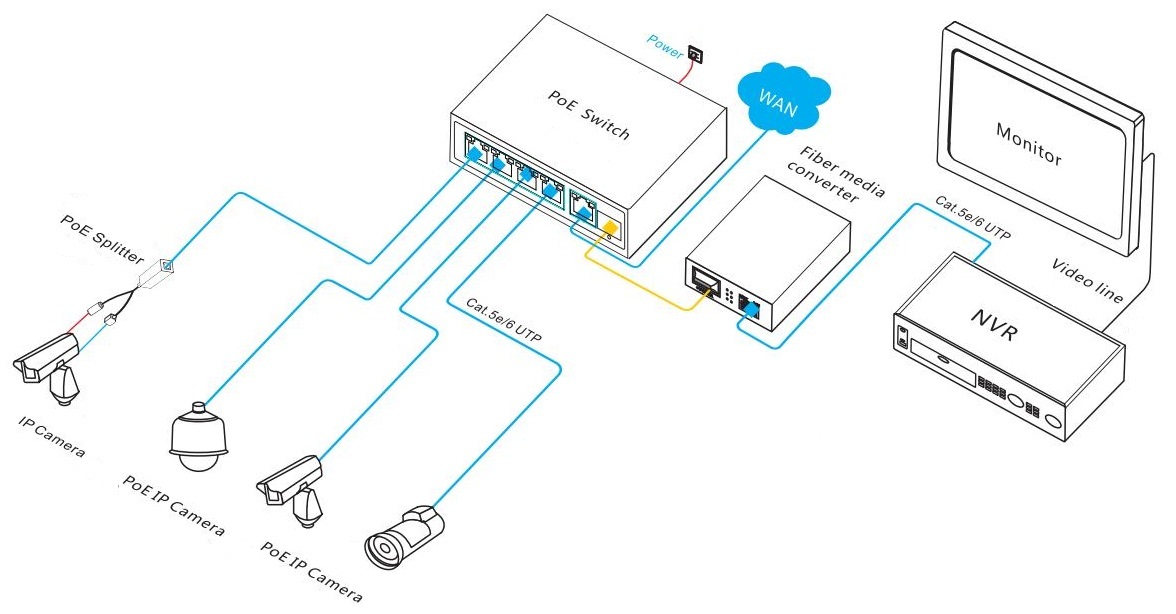

Application
6 Port Gigabit PoE Switch 30W Per Port 12Gbps Switching Capacity For IP Surveillance
Ordering Information
Model Description External Power Supply
ONV-POE33064PFG PoE switch with 5×10/100/1000M RJ45 ports and 1×1000M uplink SFP fiber port. Port 1-4 support IEEE802.3af/at PoE standard. External power supply. 65W
ONV-POE33064PFG-at 110W

Note: The optical module is not included and needs to be purchased separately.

Packing List
Packing List Qty Unit
6-port Gigabit PoE switch 1 Set
Power supply kit 1 Set
Mounting kit 1 Set
User guide 1 PC
Warranty card and certificate of conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. Supports DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2612-T-SC SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface. Supports DDM function and hot plugging. PC
2613-R-SC SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface. Supports DDM function and hot plugging. PC
Power Module 2633 1.25G SFP optical module transfers to 10/100/1000M RJ45 port. PC
