Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Specifications
Certification :
CE, FCC, RoHS
Place of Origin :
China
PoE Ports :
8
Switching Capacity :
20Gbps
Dimensions :
190.5*105*29mm
Input Voltage :
AC100~240V
MOQ :
1
Supply Ability :
500000 pcs/month
Forwarding Rate :
14.88Mpps
Delivery Time :
2-8 work days
Brand Name :
ONV
Power Consumption :
Standby<6W, full load<110W
Payment Terms :
T/T,Western Union
Port Count :
10
Model Number :
ONV-POE33108P
PoE Standard :
IEEE802.3af/at
Max PoE Power :
30W per port
Packaging Details :
Packaging dimensions: 250*205*87mm, weight: 1.15kg, Carton dimensions: 470*425*525mm, 20 pcs/carton, weight: 24.5kg
Net Weight :
0.5kg
Description
10-port Gigabit PoE Switch
Overview

The ONV-POE33108P is a Gigabit PoE switch independently developed by ONV. It features 10×10/100/1000Base-T adaptive RJ45 ports, with ports 1-8 supporting IEEE802.3af/at PoE standard and single-port PoE power reaching 30W. As a PoE power supply device, it automatically detects and recognizes standard power-receiving equipment and supplies power through network cables. It can power PoE terminal equipment such as wireless APs, IP cameras, VoIP systems, and visual intelligent building intercoms via network cable, meeting high-density PoE power supply network environments. Ideal for hotels, campuses, factory dormitories, and small-to-medium enterprises. Unmanaged model, plug and play, no configuration required, easy to use.

Technical Specifications
Model ONV-POE33108P ONV-POE33108P-at
Interface Characteristics
Fixed Port 8×10/100/1000Base-T PoE ports (Data/Power)
2×10/100/1000Base-T uplink RJ45 ports (Data)		 Same as ONV-POE33108P
Ethernet Port Port 1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Chip Parameters
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 20Gbps (non-blocking)
Forwarding Rate@64byte 14.88Mpps
MAC 8K
Buffer Memory 2M
Jumbo Frame 9.6K
LED Indicator Power: PWR (Green), Rate: 1000M (Green), PoE: PoE (Green), Network: Link (Yellow)
PoE & Power Supply
PoE Port Port 1-8
Power Supply Pin 1/2(+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR/ Input Voltage 110W / DC52V 250W / DC52V
Power Consumption Standby <6W, full load <110W Standby <8W, full load <240W
Power Supply External power supply, AC100~240V 50-60Hz, 2.0A External power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameters
Operation Temp/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension 190.5×105×29mm
Net /Gross Weight 0.5kg / 1.15kg 0.55kg / 1.6kg
Installation Desktop, wall mount
Certification & Warranty
Lightning Protection Lightning protection: 6KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
  • Gigabit Access, Full-Line Speed Forwarding
    • Support for non-blocking wire-speed forwarding
    • Full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
    • All-line high-speed forwarding for flexible networking in various scenarios
  • Smart PoE Power Supply
    • Compliant with IEEE802.3af/at PoE standard, automatically identifies PoE devices for power supply without damaging non-PoE devices.
    • 8×10/100/1000Base-T RJ45 ports for security monitoring, teleconferencing systems, wireless coverage, and other scenarios
    • Priority system for PoE ports ensures high-priority ports receive power first when the power budget is insufficient.
  • Stable and Reliable
    • CE, FCC, RoHS certified
    • Plug-and-play operation with no configuration required.
    • Self-developed power supply with high redundancy for long-term stable PoE power output
    • User-friendly panel with LED indicators for PWR, Link, and PoE status
    • Low power consumption with fan, galvanized steel housing, and excellent heat dissipation

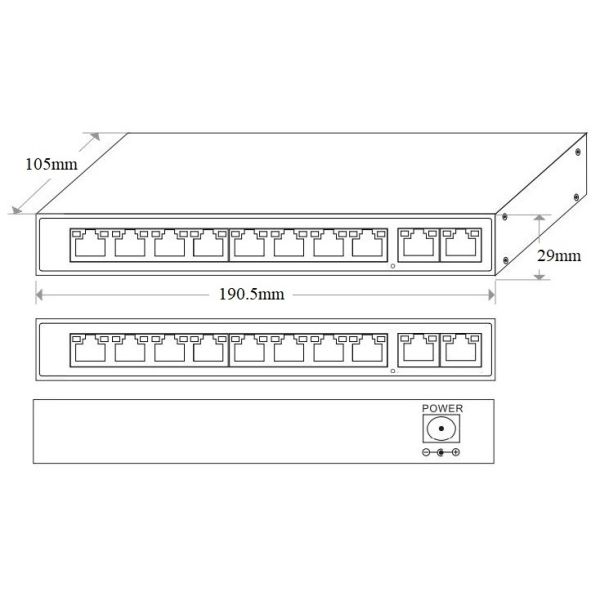

Dimensions
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity

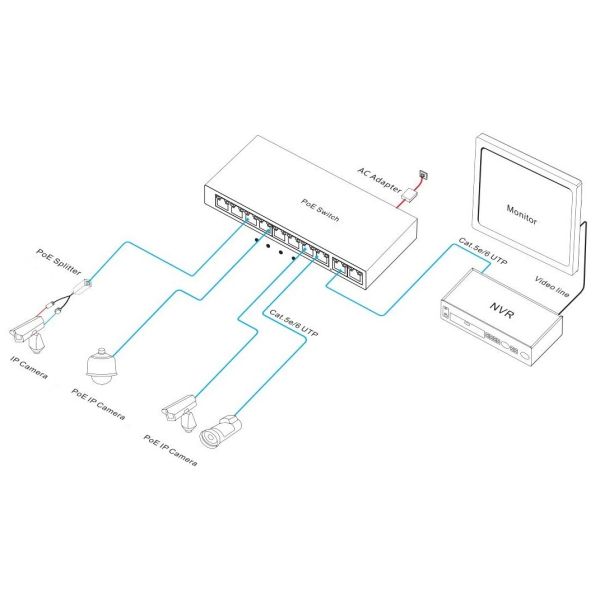

Applications
Unmanaged Model 10 Port Gigabit PoE Switch With 20Gbps Switching Capacity
Ordering Information
Model Description External Power Supply
ONV-POE33108P PoE switch with 10×10/100/1000M RJ45 ports. Port 1-8 supports the IEEE802.3af/at PoE standard. External power supply. 110W
ONV-POE33108P-at Same as ONV-POE33108P with higher power capacity 250W
Packing List
Packing List Qty Unit
10-port Gigabit PoE switch 1 Set
AC power line + power adapter 1 Set
Mounting Ear 1 Pair
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Related Products
Model Description
ONV-POE33128PF PoE switch with 10×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-8 supports the IEEE802.3af/at PoE standard. Built-in 130W power supply and 1U/19" cabinet installation.
ONV-POE33016PF PoE switch with 16×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-16 supports the IEEE802.3af/at PoE standard. Built-in 250W power supply and 1U/19" cabinet installation.
ONV-POE33020PF PoE switch with 18×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-16 supports the IEEE802.3af/at PoE standard. Built-in 250W power supply and 1U/19" cabinet installation.
ONV-POE33024PF PoE switch with 24×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-24 supports the IEEE802.3af/at PoE standard. Built-in 400W power supply and 1U/19" cabinet installation.
ONV-POE33028PF PoE switch with 26×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Port 1-24 supports the IEEE802.3af/at PoE standard. Built-in 400W power supply and 1U/19" cabinet installation.
