Specifications
Model Number :
ONV-H3016PF
Place of Origin :
China
PoE Port :
Port 1-16
Delivery Time :
2-8 work days
Switching Capacity :
52Gbps
Operation Temperature :
-20°C~+55°C
Supply Ability :
500000 pcs/month
Input Voltage :
AC100-240V
Dimension :
270*181*44.5mm
Packaging Details :
Packaging dimensions: 311*245*74mm, weight: 2.0kg, Carton dimensions: 480*430*352mm, 10 pcs/carton, weight: 21kg
Forwarding Rate :
26.78Mpps
MOQ :
1
Max Power Per Port :
30W
Brand Name :
ONV
Certification :
CE, FCC, RoHS
Fixed Port :
16*10/100/1000Base-T PoE ports, 2*1000Base-X SFP fiber ports
Payment Terms :
T/T,Western Union
Total Power :
250W
Net Weight :
1.6kg
Description

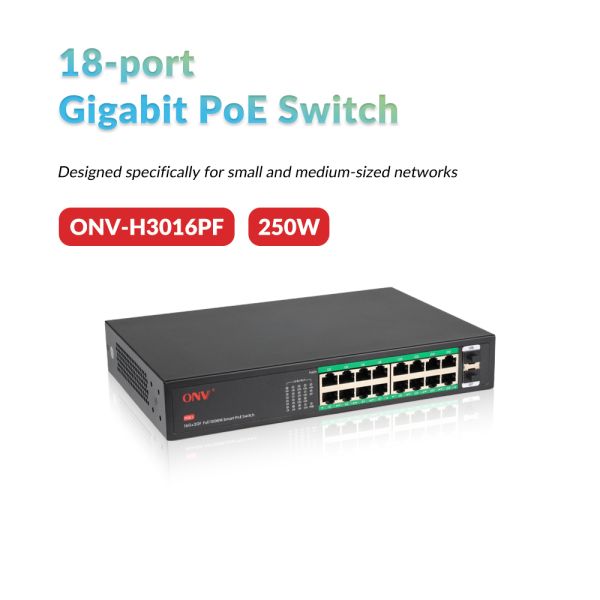

18-port Gigabit PoE Switch
Overview

The ONV-H3016PF is a Gigabit PoE switch independently developed by ONV. It features 16×10/100/1000M adaptive RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-16 support IEEE802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables.

This switch can power PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, and video access control intercoms via network cable, meeting high-density PoE power supply requirements. Ideal for hotels, campuses, factory quarters, and small-to-medium enterprises seeking cost-efficient networking solutions. Plug-and-play operation for easy use.

Technical Specifications
Model ONV-H3016PF ONV-H3024PF
Interface Characteristics
Fixed Port 16×10/100/1000Base-T PoE ports (Data/Power)
2×1000Base-X uplink SFP fiber ports (Data)		 24×10/100/1000Base-T PoE ports (Data/Power)
2×1000Base-X uplink SFP fiber ports (Data)
Ethernet Port Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Optical Fiber Port Optical module not included (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 52Gbps (non-blocking)
Forwarding Rate@64byte 26.78Mpps 38.69Mpps
MAC 8K
Buffer Memory 4M
LED Indicator Power: PWR (Green), Network: Link (Green), PoE: PoE (Green), Fiber port: G1/G2 (Green)
PoE & Power Supply
PoE Port Port 1-16 Port 1-24
Power Supply Pin 1/2 (+) 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR/ Input Voltage 250W /(AC100-240V)
Power Consumption Standby<15W, full load<240W Standby<20W, full load<250W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/ Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity -40°C~+75°C, 5%~95% RH non condensing
Dimension (L×W×H) 270×181×44.5mm 330×204×44mm
Net /Gross Weight 1.6kg /2.0kg 1.9kg /2.4kg
Installation Desktop, wall mount, 1U/19" cabinet
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Features

Gigabit Access

  • Support IEEE802.3x full-duplex flow control and Backpressure.
  • Non-blocking wire-speed forwarding for smoother transmission.
  • Gigabit RJ45 ports and SFP fiber port uplink for flexible networking.
  • Smart PoE Power Supply
  • 16×10/100/1000Base-T RJ45 ports support PoE power for security monitoring, teleconferencing systems, and wireless coverage.
  • Compliant with IEEE802.3af/at PoE standard, automatically identifies PoE devices for power supply without damaging non-PoE devices.
  • Stable and Reliable
  • CE, FCC, RoHS certified.
  • User-friendly panel with LED indicators for PWR, Link, and PoE status.
  • Low power consumption, galvanized steel housing, and excellent heat dissipation.
  • Self-developed power supply with high redundancy for long-term stable PoE power output.

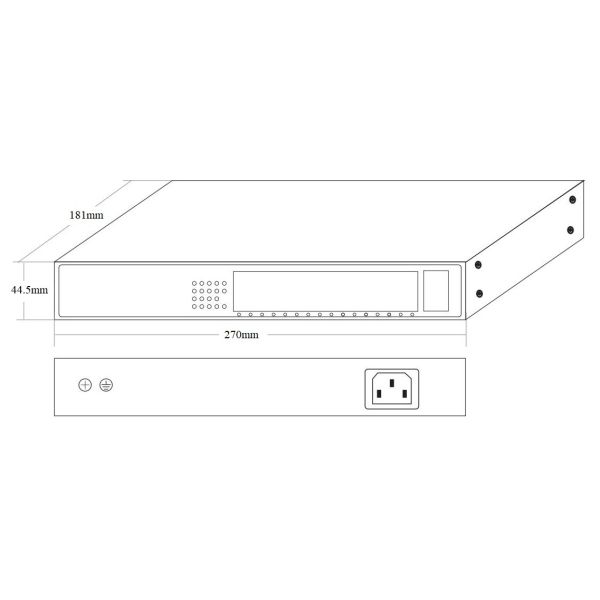

Dimensions
18 Port Gigabit PoE Switch Unmanaged With 30W Per Port Plug And Play Design

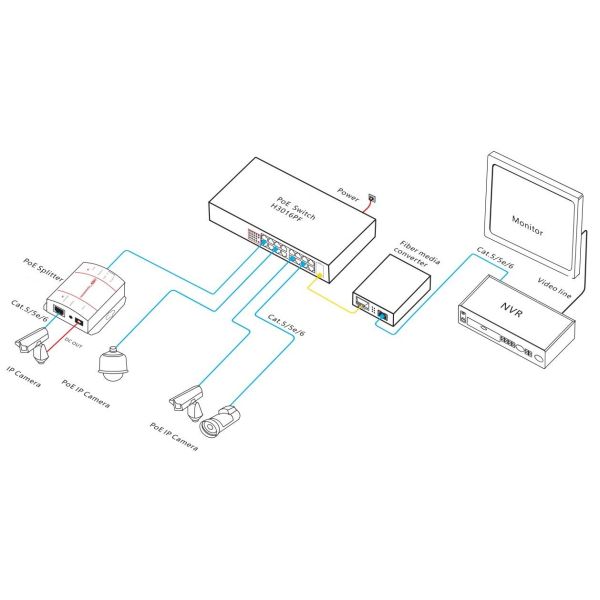

Application
18 Port Gigabit PoE Switch Unmanaged With 30W Per Port Plug And Play Design
Ordering Information
Model Description Built-in Power Supply
ONV-H3016PF PoE switch with 16×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-16 support the IEEE 802.3af/at PoE standard. Built-in power supply and 1U/19" cabinet installation. 250W
ONV-H3024PF PoE switch with 24×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-24 support the IEEE 802.3af/at PoE standard. Built-in power supply and 1U/19" cabinet installation. 250W
Note: The optical module is not included and needs to be purchased separately.
Packing List
Packing List Qty Unit
18-port Gigabit PoE switch 1 Set
AC Power Cable 1 PC
Mounting Kit 1 Set
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 0.55km, 2*LC interface. Supports DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, 2*LC interface. Supports DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
Power Module 2633 1.25G SFP optical module transfers to 10/100/1000M RJ45 port. PC
