6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
Specifications
Delivery Time :
2-8 work days
Brand Name :
ONV
Switch capacity :
12Gbps
Input voltage :
DC44-57V
Packaging Details :
Packaging dimensions: 170*150*50mm, weight: 0.5kg, Carton dimensions: 520*355*320mm, 40 pcs/carton, weight: 21kg
Model Number :
ONV-IPS33064P
Power consumption :
Standby<5W, Full load<60W,
Payment Terms :
T/T,Western Union
MOQ :
1
PoE ports :
4*10/100/1000Base-T
Certification :
CE, FCC, RoHS
Place of Origin :
China
Supply Ability :
500000pcs/month
Max power per port :
30W
Function :
POE
Description
6-port Gigabit Industrial PoE Switch
Overview

The ONV-IPS33064P is a Gigabit industrial PoE switch independently developed by ONV. It features 6×10/100/1000M adaptive RJ45 ports, with ports 1-4 supporting the IEEE 802.3af/at PoE standard and single-port PoE power up to 30W.

Ideal for industrial scenarios including intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy to build economical, efficient, stable, and reliable communication networks. Plug-and-play design ensures simple and convenient operation.

Technical Specifications
ModelONV-IPS33064P
Fixed Port4×10/100/1000Base-T PoE ports (Data/Power)
2×10/100/1000Base-T uplink RJ45 ports (Data)
2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet PortPorts 1-6 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
Switching Capacity12Gbps (non-blocking)
Forwarding Rate@64byte8.93Mpps
PoE PortPort 1-4
Max Power Per Port30W, IEEE802.3af/at
Power ConsumptionStandby <5W, full load <60W
Input Voltage/InterfaceDC44-57V, 5P industrial Phoenix terminal with anti-reverse protection
Operating Temperature/Humidity-40~+80°C, 5%~90% RH non-condensing
Dimension119×100×30mm
InstallationDesktop, 35mm DIN Rail
Warranty5 years, lifelong maintenance
Key Features
  • Gigabit Wire-Speed Forwarding: Non-blocking wire-speed forwarding, full-duplex based on IEEE802.3x and half-duplex based on Backpressure, Gigabit RJ45 ports for high-speed, high-bandwidth connections
  • Smart PoE Power Supply: Complies with IEEE 802.3af/at PoE standard, automatically identifies PoE devices for power supply without damaging non-PoE devices, priority system for PoE ports ensures optimal power distribution
  • Stable and Reliable: CE, FCC, RoHS certified, user-friendly LED indicators for PWR, Link, and PoE status, low power consumption with aluminum alloy housing for excellent heat dissipation

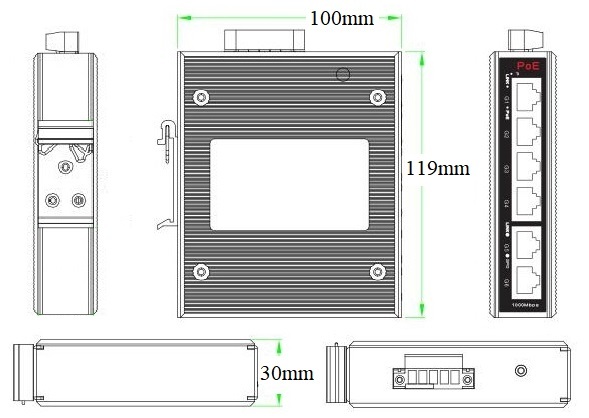

Dimensions
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable

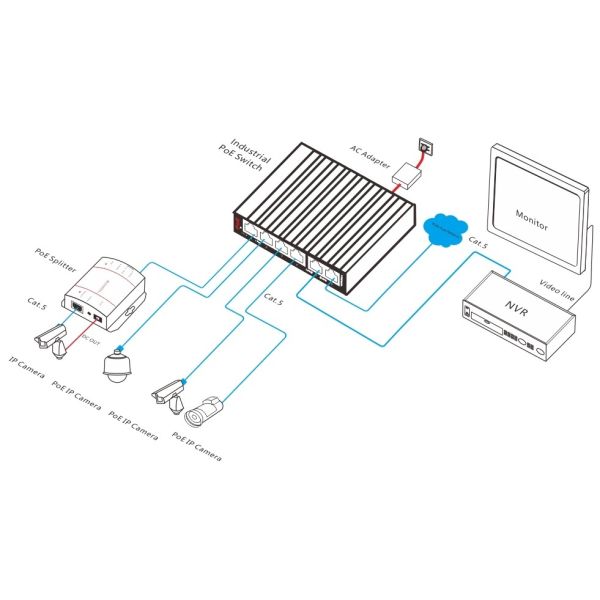

Application
6-port Gigabit Industrial PoE Switch with 30W per Port and DIN Rail Mountable
Ordering Information
ModelDescriptionRecommended Power Supply
ONV-IPS33064PIndustrial PoE switch with 6×10/100/1000M RJ45 ports. Ports 1-4 support the IEEE 802.3af/at PoE standard. Supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting.60W/120W

Note: Power supply is not included and needs to be purchased separately.

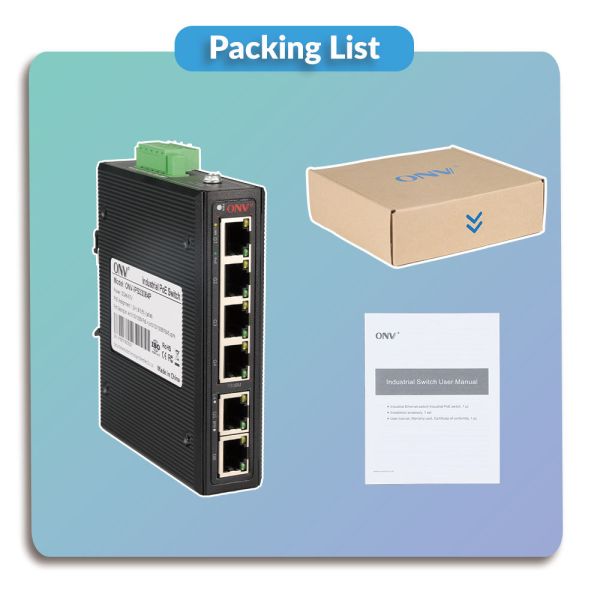

Packing List
ContentQtyUnit
6-port Gigabit industrial PoE switch1Set
User Guide1PC
Warranty Card and Certificate of Conformity1PC
Power Supply Options
ProductModelDescriptionUnit
60W DIN Rail industrial power supplyGWS-DP60-48DIN Rail 60W single set output power supply
Input: AC100V~240V 50-60Hz, 1.6A
Output: DC48V, 1.25A
Operation temperature: -40℃ to +70℃		PC
120W DIN Rail industrial power supplyGWS-DP120-48DIN Rail 120W single-set output power supply
Input: AC100V~240V 50-60Hz, 2.3A
Output: DC48V, 2.5A
Operation temperature: -40℃ to +70℃		PC
Related Products
ModelDescription
ONV-IPS33064PFIndustrial PoE switch with 4×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-4 support the IEEE 802.3af/at PoE standard.
ONV-IPS33064PFGIndustrial PoE switch with 5×10/100/1000M RJ45 ports and 1×1000M uplink SFP fiber port. Ports 1-4 support the IEEE 802.3af/at PoE standard.
ONV-IPS33108PIndustrial PoE switch with 10×10/100/1000M RJ45 ports. Ports 1-8 support IEEE 802.3af/at PoE standard.
ONV-IPS33108PFIndustrial PoE switch with 8×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-8 support the IEEE 802.3af/at PoE standard.
ONV-IPS33128PFIndustrial PoE switch with 10×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-8 support the IEEE 802.3af/at PoE standard.
