Specifications
Model Number :
ONV-H2024PFG-YS
Max Power Per Port :
18W
MOQ :
1
Packaging Details :
Packaging dimensions: 410*242*90mm, weight: 2.45kg, Carton dimensions: 470*425*260mm, 5 pcs/carton, weight: 14kg
Switching Capacity :
12Gbps
Supply Ability :
500000 pcs/month
Brand Name :
ONV
PoE Port :
Port 1-24
Payment Terms :
T/T
Forwarding Rate :
8.04Mpps
Delivery Time :
2-7 work days
Certification :
CE, FCC, RoHS
Total Power :
250W
Place of Origin :
China
Input Voltage :
AC100-240V
Description
27-port Gigabit Uplink Non-Standard PoE Switch

The ONV-H2024PFG-YS is a Gigabit uplink non-standard PoE switch independently developed by ONV. It features 24*10/100M RJ45 ports, 2*10/100/1000M uplink RJ45 ports, and 1*1000M uplink SFP fiber port. Ports 1-24 support 24V non-standard PoE+ with single-port PoE power up to 18W. As a non-standard PoE power supply device, it must be connected to compatible non-standard electrical equipment (such as wireless bridges, building visual intercoms) or to a non-standard PoE splitter for conversion to provide PoE power. It can supply power to various adaptable terminals through network cables, meeting the demand for high-density PoE power-supply network environments. Suitable for hotels, campuses, factory dormitories, and small-to-medium enterprises to establish cost-effective networks. Plug-and-play operation ensures easy use.

Technical Specifications
Model ONV-H2024PFG-YS
Interface Characteristics
Fixed Port 24*10/100Base-TX PoE ports (Data/Power)
1*1000Base-X uplink SFP fiber port (Data)
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port Port 1-24 support 10/100Base-T(X) and port 25-26 support 100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-TX: Cat5 or later UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port Gigabit optical fiber port, default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-500m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Function Switch (100m/250m) When switched to the 250m position, the port 17-24 rate is 10M, transmission distance up to 250 meters
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (non-blocking)
Forwarding Rate@64byte 8.04Mpps
MAC 2K
Buffer Memory 2.75M
Jumbo Frame 9216B
LED Indicator Power: PWR (Green), Network: Link (Green), PoE: PoE(Red), Fiber port: L/A (Green), Function switch: 100m/250m (Green)
PoE & Power Supply
PoE Port Port 1-24
Power Supply Pin 4/5(+) 7/8(-)
Max Power Per Port 18W, non-standard PoE+
Total PWR/ Input Voltage 250W /(AC100-240V)
Power Consumption Standby<8W, full load<250W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP/ Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity -40°C~+80°C, 5%~95% RH non-condensing
Dimension (L*W*H) 350*215*44mm
Net /Gross Weight 1.9kg/2.45kg
Installation Desktop, Rack-mounted
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Key Features
  • 10/100M access, uplink Gigabit RJ45/SFP port
    ◇ Support non-blocking wire-speed forwarding.
    ◇ Supports full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
    ◇ Provides 10/100M RJ45 port and Gigabit RJ45 and SFP port for flexible setup to meet various network requirements.
  • Smart PoE power supply
    ◇ PoE port has short-circuit protection function to prevent accidental contact and short-circuit burns.
    ◇ 24*10/100Base-TX RJ45 ports support 24V PoE power supply for security monitoring, teleconferencing systems, wireless coverage, and other scenarios.
    ◇ Quickly implement PoE network cable power supply through direct connection to non-standard electrical equipment or non-standard PoE splitter cable.
    ◇ (8 ports in a group, each group has 4 ports at the end) The 12 ports have delayed start function to avoid power overload protection at power-on.
  • Stable and reliable
    ◇ CE, FCC, RoHS certified.
    ◇ Plug and play, no configuration required.
    ◇ User-friendly panel with LED indicators for device status monitoring.
    ◇ Low power consumption, galvanized steel casing, and excellent heat dissipation ensure stable operation.
    ◇ Long-distance mode (250m): When switched to 250m position, port 17-24 rate is 10M with transmission distance up to 250 meters.

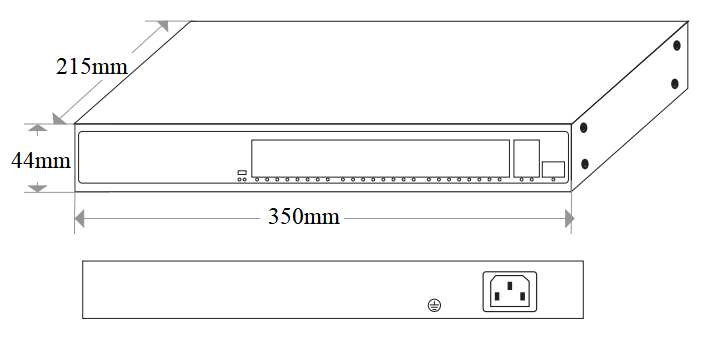

Dimensions
27-Port Gigabit Uplink Unmanaged PoE Switch with 24V Non-Standard PoE+ and 250m Extended Range

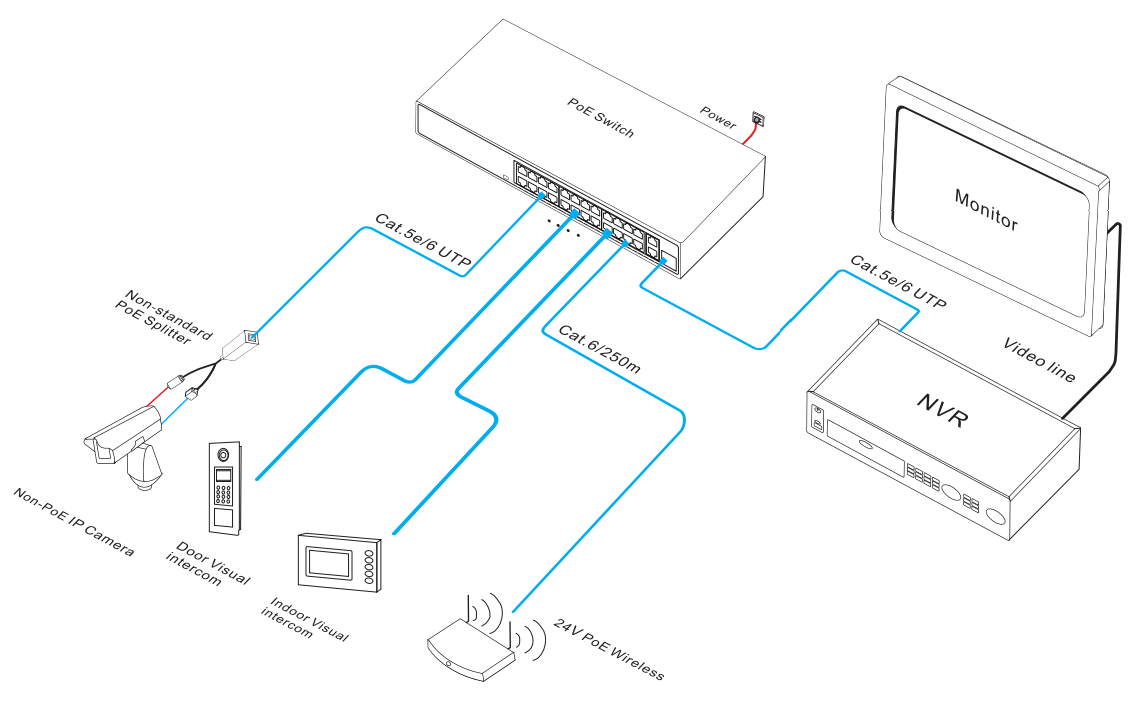

Application
27-Port Gigabit Uplink Unmanaged PoE Switch with 24V Non-Standard PoE+ and 250m Extended Range
Ordering Information
Model Description Built-in Power Supply
ONV-H2024PFG-YS PoE switch with 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Ports 1-24 support 24V non-standard PoE+. Adjust function switch to 250m position; ports 17-24 support 10M/250 meters transmission. Built-in power supply. 24V/250W
Note: The optical module is not included and needs to be purchased separately.
Packing List
Packing List Qty Unit
27-port Gigabit uplink non-standard PoE switch 1 PC
AC Power Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 0.55km, LC interface. Supports DDM function and hot-plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot-plugging. PC
Power Module 2633 1.25G SFP optical module transfers to 10/100/1000M RJ45 port. PC
