ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
Specifications
Brand Name :
HuaWei
Model Number :
ET1D2X32SSC0
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Brand :
HuaWei
Product name :
ET1D2X32SSC0
Dimensions :
100mm× 208mm × 40mm
Weight :
0.5kg
Maximum power consumption :
18.83W
STORAGE TEMPERATURE :
-40C TO 70C
RELATIVE HUMIDITY :
5%RH TO 95%RH
Warranty :
1 Year
Description

ES5D21Q04Q01 HuaWei 4-port 40GE QSFP+ interface board S6720EI switch dedicated

Software companion relationships

Card model

Version description
ES5D21Q04Q01

S5730-SI and S5730S-EI: V200R011C10 to V200R019C10 version support.

S5736-S: V200R020C00 and later release support.

Card overview

Card

The device model
ES5D21Q04Q01
  • S5730-48C-SI-AC
  • S5730-48C-PWR-SI-AC
  • S5730S-48C-EI-AC
  • S5730S-48C-PWR-EI
  • S5730-68C-SI-AC
  • S5730S-68C-EI-AC
  • S5730-68C-PWR-SI-AC
  • S5730-68C-PWR-SI
  • S5730S-68C-PWR-EI
  • S5736-S24UM4XC

The functions and features of the card

Features and features

Description

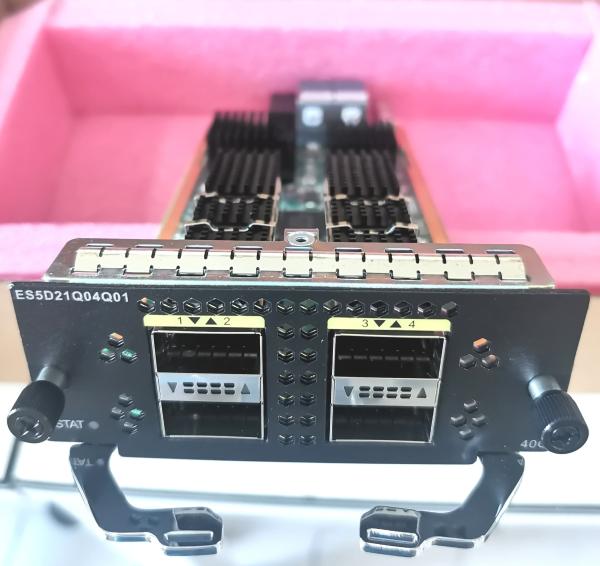

Basic features PROVIDES 4 40GE QSFP PLUS OPTICAL INTERFACE DATA ACCESS AND LINE SPEED EXCHANGE. EACH 40GE INTERFACE SUPPORTS SPLITTING INTO 4 10GE USES.
Hot-swap Backing
Business mouth stacking

Can be used for stacking interfaces for devices.

Illustrate:

THE 40GE INTERFACE IS SPLIT INTO 4 10GE INTERFACES AND CANNOT BE STACKED AS A BUSINESS PORT AFTER USE.

40GE QSFP PLUS OPTICAL INTERFACE

The 40GE QSFP-optical interface is used to receive and send 40GE services, and when the interface is split into 4 10GE interfaces, a QSFP-optical module and fiber optics of 1 minute, a QSFP-AOC light cable (V200R009C00 version and later version support) or a 1-minute QSFP-plus cable are required.

The four optical interfaces provided by the card can only support QSFP-light modules, QSFP-AOC light cables (V200R009C00 version and later version support; 10m; QSFP-<-> QSFP plus or QSFP-<->4 x SFP) and QSFP plus cables (1m, 3m, 5m; QSFP plus <-> QSFP plus or QSFP plus <->4 x SFP plus).

QSFP-optical interface properties

Attribute

Description
The connector type LC/MPO
Optical interface properties Depending on the light module selected, see the"40GE QSFP plus Packaged Optical Module" section for details.
Meet the criteria IEEE 802.3ba

Specification parameters

The parameter item

Description
Physical parameters
  • Size (wide × depth× height): 100mm× 208mm × 40mm
  • Weight: 0.5kg
  • MAXIMUM POWER CONSUMPTION: 18.83W
Environment parameters
  • OPERATING TEMPERATURE: 0C TO 45C
  • RELATIVE HUMIDITY: 5%RH TO 95%RH
  • STORAGE TEMPERATURE: -40C TO 70C
Illustrate:

The ES5D21Q04Q01 operates at an operating temperature of 0C to 40C when the QSFP-light module is optional on S5730-SI and S5730S-EI devices.

ES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface BoardES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface BoardES5D21Q04Q01 HuaWei GPON Optical Line Terminal 4 Port 40GE QSFP+ Interface Board
