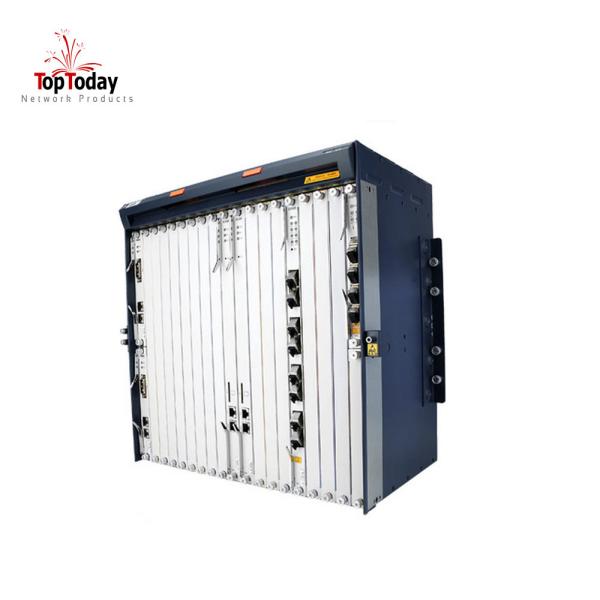

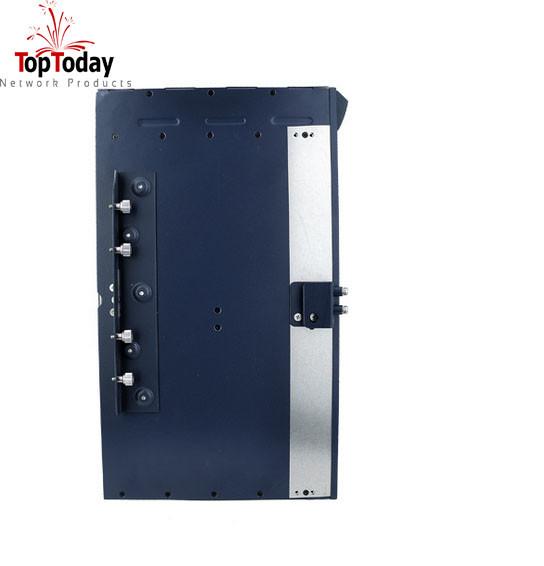

ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ZTE
Model Number :
C300, ZTE ZXA10 C300 Dimension:
MOQ :
Negotiable
Price :
Negotiable
Brand :
ZTE
Dimension :
(mm): 889.0(H)*482.6(W)*270.0(
Application :
GPON, EPON, XG-PON, XGS-
Selling Units :
Single item
Single package size  :
62X60X52 cm
Single gross weight :
40.000 kg
Package Type :
new and original in box
Description
ZTE ZXA10 C300 EPON GEPON 8 Port GPON Optical Line Terminal
Place of Origin Guangdong,China
Brand Name ZTE
Model Number C300,ZTE ZXA10 C300 Dimension:
Brand ZTE
Dimension: (mm): 889.0(H)*482.6(W)*270.0(
Application: GPON, EPON, XG-PON, XGS-

ZTE ZXA10 C300 configuration:

2 SCXM/SCXN control board; (SCXL For Option)

2 GUFQ board(4SFP Slot), 2 uplink modules on each;

(HUTQ( 10G Uplink)

GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)

2 PRWG power boards; (AC to DC Power Converter have to buy separate)

2 Power cables

1 RJ-45 first turn 9-pin RS-232 female network cable

Product Features

Unified platform architecture

Delivers integrated access for GPON, EPON, P2P, 10G-EPON, XG-PON1 and TWDM-PON, achieves initial investment protection and smooth evolution.

Excellent capability

Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth, high-density service cards, and non-blocking switching capability.

Higher reliability and protection

Provides boards redundancy and hot swappable, supports type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.

Perfect clock/time synchronization

Provides BITS, 1PPS+ToD, IEEE 1588V2 and synchronous Ethernet to deliver comprehensive time and clock synchronization.

Powerful QoS control and TDM capability

Supports three-level H-QoS based on service provider, user and service, provides TDM service bearing with STM-4, STM-1, E1 and T1.

Eco-friendly design

Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.
