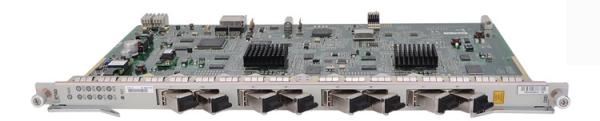

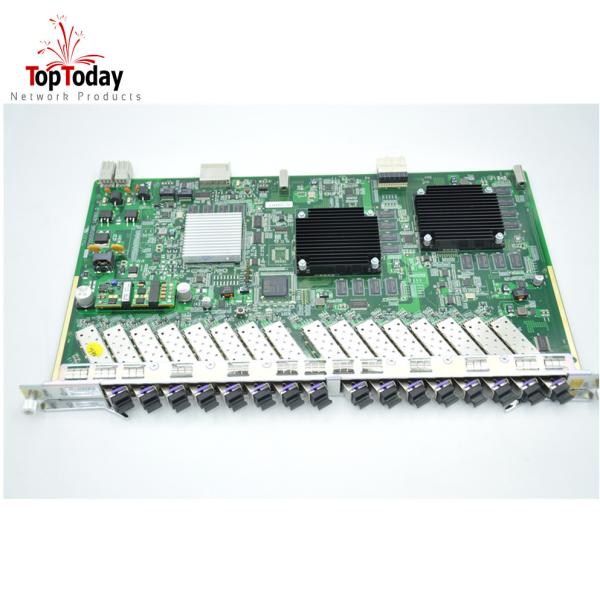

ZTE ZXA10 C300 C320 16 Ports GPON Optical Line Terminal
ZTE ZXA10 C300 C320 16 Ports GPON Optical Line Terminal
ZTE ZXA10 C300 C320 16 Ports GPON Optical Line Terminal
ZTE ZXA10 C300 C320 16 Ports GPON Optical Line Terminal
Specifications
Brand Name :
ZTE
Model Number :
ETGO
MOQ :
Negotiable
Price :
Negotiable
Brand :
ZTE
Product name :
ZTE ETGO
Type :
singal board
Warranty :
1 year
Selling Units :
Single item
Single package size  :
65X35X5 cm
Single gross weight :
3.000 kg
Package Type :
NEW IN THE BOX.
Description
EPON Interface CardsOverviewOriginal ZTE ZXA10 C300 C320 GPON EPON OLT 16ports EPON board ETGO ETGHThe EPON interface cards provide EPON access. The ZXA10 C300 supports the following EPON interface cardsETGH: 16-port EPON interface cardThe ZTE GTGO is an 8-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.
The ZTE GTGO is an 8-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.

• High Density:
- 8 GPON ports per card, up to 1:128 split ratio
• GPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
- Newly developed lower power GPON MAC chip
- Reduce 30% power consumption on industry average.
ZTE OLT GPON EPON corresponding service board series:
Model
Description
Apply to OLT model
GTGO GPON business board
8ports contains 8pcs SFPs modules C++
C300 C320
GTGH GPON business board
16ports contains 16pcs SFPs modules C++
ETGOD EPON business board
8ports contains 8pcs SFPs modules PX20+
ETGHDEPON business board
16ports contains 16pcs SFPs modules PX20+

ZTE ZXA10 C300 C320 16 Ports GPON Optical Line Terminal

• High Density:
- 8 GPON ports per card, up to 1:128 split ratio
• GPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
- Newly developed lower power GPON MAC chip
- Reduce 30% power consumption on industry ave
