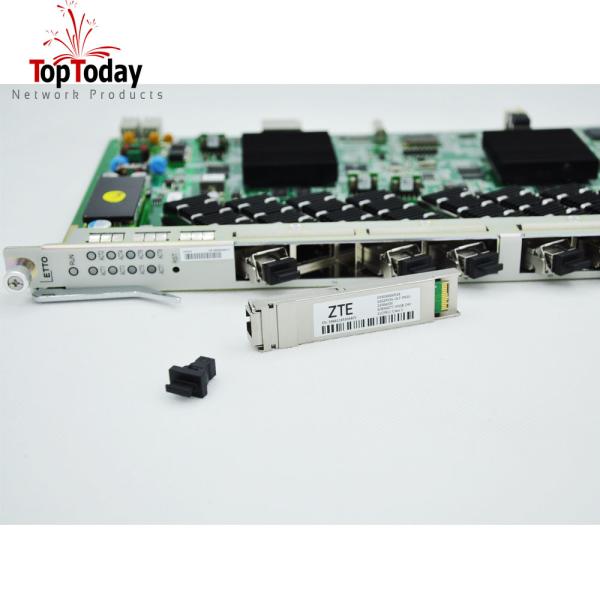

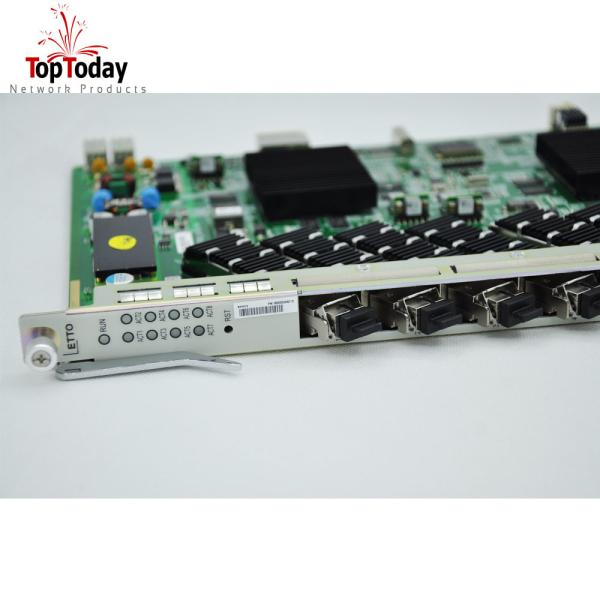

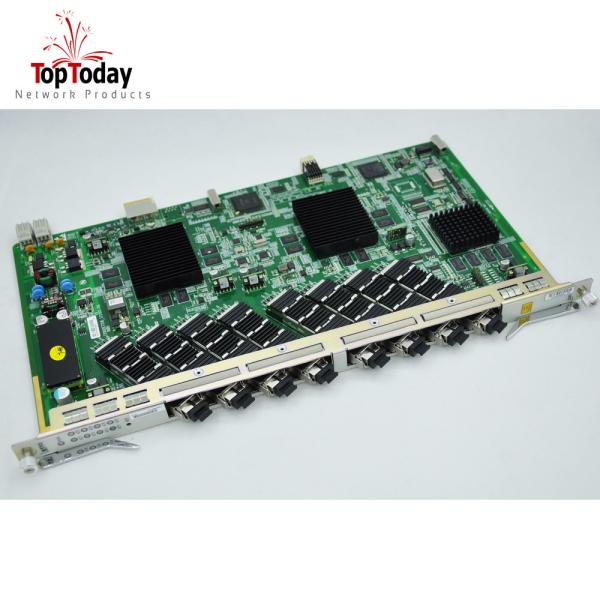

10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
10G SFP 8 Port GPON Business Board Optical Line Terminal
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ZTE
Model Number :
ETTO
MOQ :
Negotiable
Price :
Negotiable
Product name :
ZTE
Model :
ETTO
Application :
Network
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
39X48X9 cm
Single gross weight :
3.000 kg
Package Type :
New and original in box
Description

Original China Brand ZTE ETTO 10G epon sfp business board 8 ports sfp card gor ZTE C300Original China Brand ZTE ETTO 10G epon sfp business board 8 ports sfp card gor ZTE C300Original China Brand ZTE ETTO 10G epon sfp business board 8 ports sfp card gor ZTE C300Original China Brand ZTE ETTO 10G epon sfp business board 8 ports sfp card gor ZTE C300Original China Brand ZTE ETTO 10G epon sfp business board 8 ports sfp card gor ZTEETTO single board is a 8-port 10G EPON OLT interface board,which cooperates with ONU to realize EPON access service.

Product Features

High Density,energy Saving,low power consumption,support 1024 access users

Manual shutdown of idle PON port to avoid power waste

Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 40 km,simplified network planning

Intelligent Management Channel

Level 4 HQoS to Improve User Experience

9216 Jumbo frame,greatly improving transmission efficiency

Easy to operate and maintain

Real-time hooligans ONU detection and isolation to ensure stable operation of business

Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time

1:128 eOTDR,Accurate Fault Responsibility Division and Fast Fault Location

External interface

8 10G EPON Port (XFP Optical Module):

Maximum spectral ratio:1:128

Specification ETTO
Port quantity 8
MAX Split ratio 1: 128
Forwarding Rate 80Gbit/s
Rate model Symmetric Rate model

Asymmetric Rate Model
Maximum Number of LLID 256
Maximum Number of Service Flows Supported by the Board 16368
Maximum frame length 2052 bytes
Maximum Number of MAC 16384
Maximum differential fibre distance (km) 40
Board supporting downstream FEC Yes
Board supporting upstream FEC Yes
CAR Yes
Temperature query and high temperature alarm Yes
Automatic power shutdown in case of a high temperature Yes
Rogue ONT detection Yes
1588v2

EPON model:Yes

10G EPON model:No
High temperature automatic concern Yes
Rogue ONT Detection and Isolation Support Yes
Working temperature -40℃~+65℃
Maximum Power waste 65w
Dimensions (W x D x H) 490 mm x 325mm x 75mm
