FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei
Model Number :
GPHF
MOQ :
Negotiable
Price :
Negotiable
Product name :
GPHF
Brand :
huawei
Package :
New In Sealed Box
Application :
FTTH System
CONDITION :
New and original
Selling Units :
Single item
Single package size  :
50X8X33 cm
Single gross weight :
3.000 kg
Package Type :
new in the huawei box .
Description
FTTH Huawei MA5800T GPSF GPHF 16 Port GPON OLT

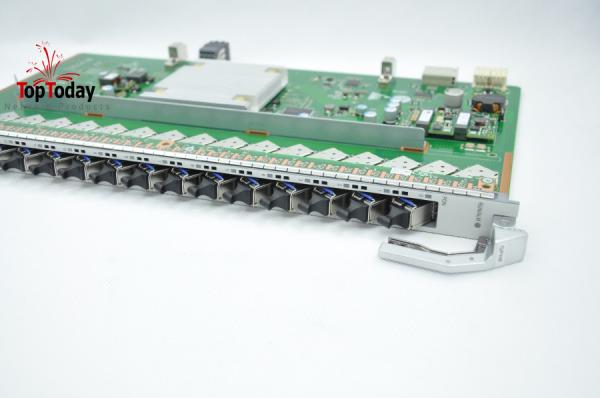

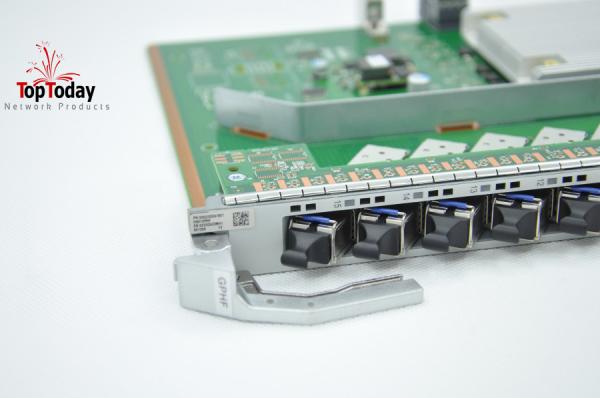

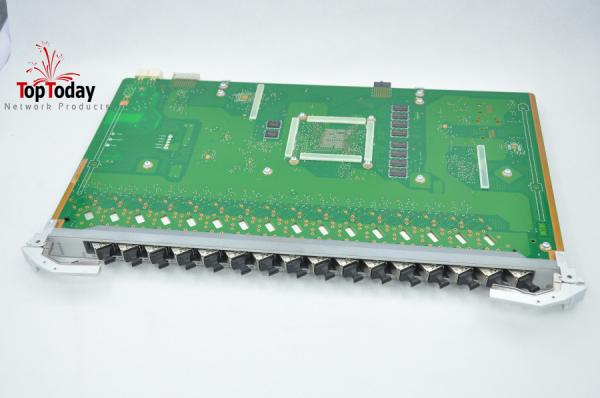

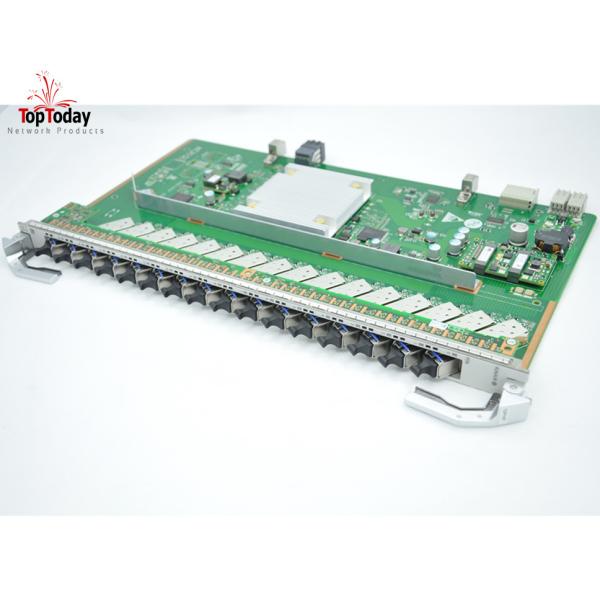

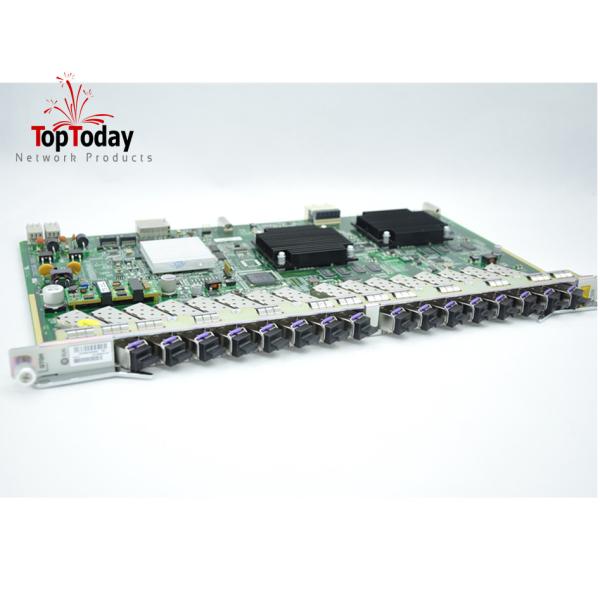

The H901GPHF board supports the following features and specifications:

  • 16 GPON SFP ports
  • A maximum of 1:128 split ratio
  • Class B+/C+/C++ one-fiber bi-directional optical modules
  • Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
  • ONU-based traffic shaping
  • Temperature reading and high-temperature alarm
  • Automatic power-off in case of high temperature
  • Upstream and downstream forward error correction (FEC)
  • Type B/Type C protection
  • L3VPN and D-CCAP networking
  • A maximum of 20 km transmission distance
  • Rogue ONU detection
  • Optical power budget of the GPON port
    • Class B+ optical module with a 28.5 dB power budget (used in most cases)
    • Class C+ optical module with a 32 dB budget (used for long-distance transmission)
    • Class C++ optical module with a 35 dB budget (used for long-distance transmission)
Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPBD : Static: 45 W, Maximum: 51 W
H805GPBD : Static: 43 W, Maximum: 49 W
Maximum Frame Size For V800R011C00 and earlier versions: 2000 bytes
For V800R012C00 and later versions: 2004 bytes
Operating temperature -25°C to +65°
