FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
Specifications
Brand Name :
HuaWei
Model Number :
CR53-P10-8xPOS/STM4-SFP
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Model number :
CR53-P10-8xPOS/STM4-SFP
Description :
8-port OC-12c/STM-4c POS-SFP flexible card
Weight (without packaging materials) :
0.5 kg
TYPICAL POWER CONSUMPTION :
22.4 W
Typical Heat Dissipation :
72.68 BTU/hour
Storage temperature :
-40°C to +70°C(-40°F to 158°F)
Dimensions (w x d x h, without packaging) :
169 mm x 189.9 mm x 18.4 mm
Warranty :
1 Year
Description

FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

HuaWei router NE40E-X8 series interface board CR53-P10-8xPOS/STM4-SFP (8-port OC-12c/STM-4c POS-SFP flexible card)

Overview

CR53-P10-8xPOS/STM4-SFP Basic Information

Attribute Description
Description 8-port OC-12c/STM-4c POS-SFP flexible card
Part number 03030JUB
Model CR53-P10-8xPOS/STM4-SFP
Veneer category Flexible card insertion
Silk screen printing FPIC-8xOC12-POS

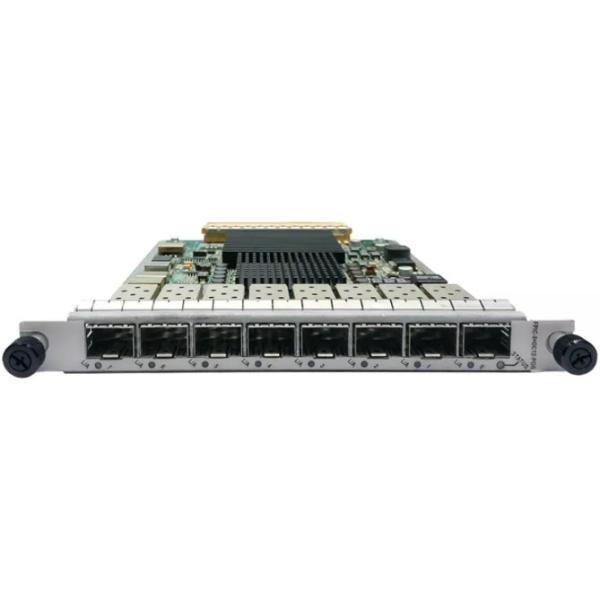

CR53-P10-8xPOS/STM4-SFP appearanceFCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

CR53-P10-8xPOS/STM4-SFP LED Description
Led silkscreen The name of the led Led color Led status Status description
L/A Port connection/data sending and receiving status led Green Solid on Indicates that the link is already connected.
Green Flashing Indicates that there is data sent and received.
- Always extinguished Indicates that the link is not connected.
STATUS STATUS INDICATOR Green Flash, flash twice per second (2Hz) Indicates that the device is not yet registered while booting.
Green Slow flashing, flashing every two seconds (0.5Hz) Indicates that the system is in a healthy state.

CR53-P10-8xPOS/STM4-SFP interface description

The interface name Connector type Description Parts that can be used
0~7 SFP 622M POS OPTICAL SIGNAL INPUT AND OUTPUT INTERFACE 622Mbps eSFP optical module
CR53-P10-8xPOS/STM4-SFP interface properties
Attribute Description
Working mode Full duplex
Complies with standards IEEE 802.3
Support frame formats PPP,HDLC

CR53-P10-8xPOS/STM4-SFP functions and features

Functions and features Description
Basic functionality SUPPORTS WIRE-SPEED DELIVERY AND RECEIVING OF 8 622M POS PORTS.
Reliability and availability Hot-swappable support.
Whether hashing is supported Not
Whether port rate adaptation is supported Not
Link protocol PPP,HDLC

CR53-P10-8xPOS/STM4-SFP Specifications

Project Description
Dimensions (w x d x h, without packaging) [mm] 169 mm x 189.9 mm x 18.4 mm
Weight (without packaging materials) [kg] 0.5 kg
TYPICAL POWER CONSUMPTION [W] 22.4 W
Typical Heat Dissipation [BTU/hour] 72.68 BTU/hour
LONG-TERM OPERATING AMBIENT TEMPERATURE [°C] 0°C~45°C
SHORT-TERM OPERATING AMBIENT TEMPERATURE [°C] -5°C~55°C

FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

FAQ

1. what's the way to pay?

We support T/T, WESTERN UNION,Paypal

2.What's your shipping way?

Shopped by air sea express

3. What is the product used for packing?

We always use catron, Unless you have different packing needs
