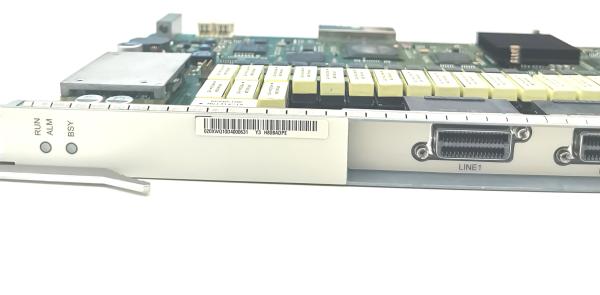

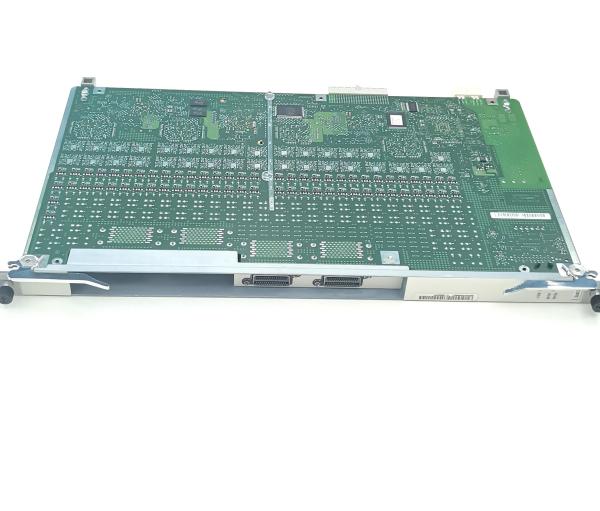

ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board
HuaWei MA5600T service board H80BADPE 64-channel voice board ADPE
Description
The H80BADPE board is an 64-port ADSL2+ over POTS Service Board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service. work for MA5600, MA5680T
The H80BADPE board is an 64-port ADSL2+ over POTS Service Board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service.
Specifications
| | | MA5603T | |
| Dimensions (W x D x H) | 442mm×275.8mm×441.7mm | 442mm×283.2mm×263.9mm | 442 mm x 244.5 mm x 88.1 mm |
| Height | 10U | 6U | 2U |
| Power | –48V DC power input | –48V DC power input | –48V DC power input
Or
110/220V AC power input |
| Board configuration | 2 slots for control boards
14 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards. | 2 slots for control boards
6 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards. | 2 slots for control boards
2 slots for service boards
1 slots for the power interface board. |
| Maximum number of GPON ports in a subrack | 224 | 96 | 32 |
| Maximum number of ADSL2+ ports in a subrack | 896 | 384 | 128 |
| Maximum number of VDSL2 ports in a subrack | 896 | 384 | 128 |
| Maximum number of POTS ports in a subrack | 896 | 384 | 128 |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | 8 | 8 | |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | 4 | 4 | |
| Board | Power Consumption | Maximum Frame Size |
| H808ADIF | * Static: 12 W* Maximum: 49.2 W | 1800 bytes |
| H808ADLE | * Static: 12.4 W* Maximum: 56.8 W | 1800 bytes |
| H805ADLF | * Static: 15 W* Maximum: 46 W | 1800 bytes |
| H808ADLF | * Static: 12 W* Maximum: 50.4 W | 1800 bytes |
| H802ADPD | * Static: 25 W* Maximum: 82.5 W | 1800 bytes |
| H805ADPD | * Static: 12 W* Maximum: 66 W | 1800 bytes |
| H807ADPD | * Static: 20 W* Maximum: 41 W | 1800 bytes |
| H802ADQD | * Static: 25 W* Maximum: 82.5 W | 1800 bytes |
| H802ADKM | * Static: 28 W* Maximum: 81 W | 1800 bytes |
| H80BADPE | * Static: 12.4 W* Maximum: 56.8 W | 1800 bytes |
| H807ADPE | * Static: 20 W* Maximum: 41 W | 1800 bytes |
| H808ADPM | * Static: 15 W* Maximum: 62 W | 1800 bytes |
| H807ADPM | * Static: 22 W* Maximum: 43 W | 1800 bytes |
| H802P2CA | * Static: 9 W* Maximum: 10 W | 2004 bytes |
