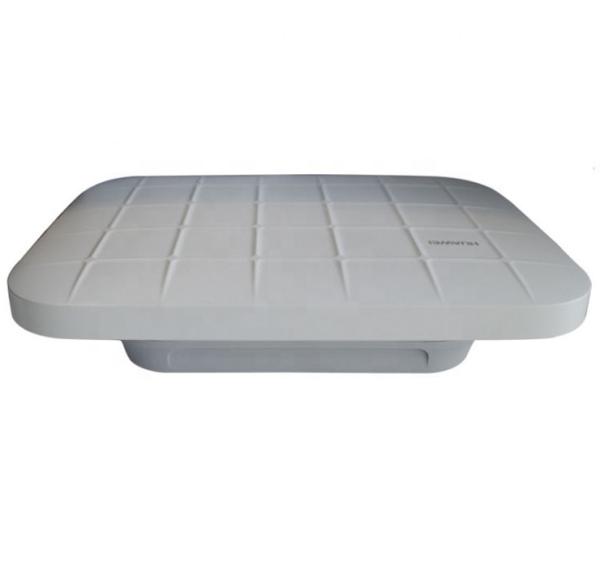

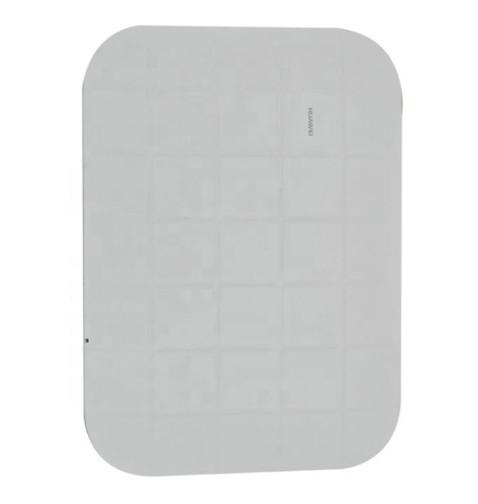

AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
AP4050DN-HD Indoor Dual Band Wireless LAN Access Point
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei
Model Number :
AP4050DN-HD, AP4050DN-HD
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Use :
FTTX
Antenna Type :
Built-in high-density smart antennas
Maximum Transmit Power :
2.4 GHz: 22 dBm (combined power) 5 GHz: 22 dBm (combined po
Radio Protocols :
802.11a/b/g/n/ac/ac wave2
Operating Temperature :
re: -10°C to 50°C
MIMO Spatial Streams :
2 x 2:2 MU/SU-MIMO
Dimensions (H x W x D) :
65 mm x 240 mm x 334 mm
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

Original Huawei AP4050DN-HD indoor dual band wireless LAN access point with built-in intelligent high-density antenna

AP4050DN-HD Access Point — Huawei products

AP4050DN-HD Access Point

Huawei AP4050DN-HD is a wireless access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP4050DN-HD provides a rate of up to 1.267 Gbit/s. It uses built-in high-density smart antennas and is applicable to indoor high-density stadiums.

Huawei AP4030TN is a wireless access point in compliance with 802.11ac standards. It supports Software-Defined Radio (SDR) and uses a triple-radio frequency design with each radio frequency supporting 2 x 2 MIMO and two spatial streams. The AP4030TN provides a rate of up to 2.6 Gbit/s and is applicable to environments such as eClassroom, high-density venues, shopping malls, and supermarkets.Embedded smart antennas, purpose-built for high-density scenarios, reduce construction costs and mitigate interference between APs

  • Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability
  • PoE OUT is supported, saving costs in switch ports by 50%
  • Cloud-based AP management using the Agile Controller-Cloud Manager

AP4050DN-HD Basic specifications
Item
Description
Physical specifications
Dimensions (H x W x D)
65 mm x 334 mm x 240 mm
Weight
1.5 kg
System memory
* 256 MB DDR3L
* 64 MB NOR FLASH
Power specifications
Power input
* DC: 12 V ± 10%
* PoE power supply: in compliance with IEEE 802.3af/at
Maximum power consumption
* 11.8 W (in 802.3af PoE or DC mode)
* 13.9 W (in 802.3at PoE mode, excluding the output power of the PoE_OUT port)

NOTE:The actual maximum power consumption depends on local laws and regulations.
Environment specifications
Operating temperature
* -60 m to +1800 m: -10°C to +50°C
* 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.
Storage temperature
-40°C to +70°C
Operating humidity
5% to 95% (non-condensing)
IP rating
IP41
Atmospheric pressure
53 kPa to 106 kPa
AP4050DN-HD Radio specifications
Item
Description
Antenna type
Built-in dual-band directional antenna (beamwidth: 30 degrees)
Antenna gain
* 2.4 GHz: 13 dBi
* 5 GHz: 10 dBi
Maximum number of users
Fit AP: ≤ 512
Fat AP: ≤ 512
Cloud AP: ≤ 512
NOTE:The actual number of users varies according to the environment.
Maximum number of VAPs for each radio
16
Maximum transmit power
* 2.4 GHz: 22 dBm (combined power)
* 5 GHz: 22 dBm (combined power)

NOTE:The actual transmit power depends on local laws and regulations.
Maximum number of non-overlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
* 802.11b/g * 20 MHz: 3
* 802.11n * 20 MHz: 3
* 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
* 802.11a * 20 MHz: 13
* 802.11n * 20 MHz: 13
* 40 MHz: 6
* 802.11ac * 20 MHz: 13
* 40 MHz: 6
* 80 MHz: 3
NOTE:The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping
channels varies in different countries. For details, see the Country Codes & Channels Compliance.

NOTICE:If the AP is delivered to the USA, pay attention to the following on channel and frequency band usage: 1. The country code of the
AP is fixed.
2. High power radars
working at frequencies in the range of 5.25 GHz to 5.35 GHz, 5.47 GHz to 5.6 GHz, and 5.65 GHz to 5.725 GHz can interfere with
or even damage APs working at the same frequency.
Channel rate supported
* 802.11b: 1, 2, 5.5, and 11 Mbit/s
* 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
* 802.11n: 6.5 to 400 Mbit/s
* 802.11ac Wave 2: 6.5 to 867 Mbit/s

AP4050DN-HD Indoor Dual Band Wireless LAN Access PointAP4050DN-HD Indoor Dual Band Wireless LAN Access Point

AP4050DN-HD Indoor Dual Band Wireless LAN Access PointAP4050DN-HD Indoor Dual Band Wireless LAN Access Point
