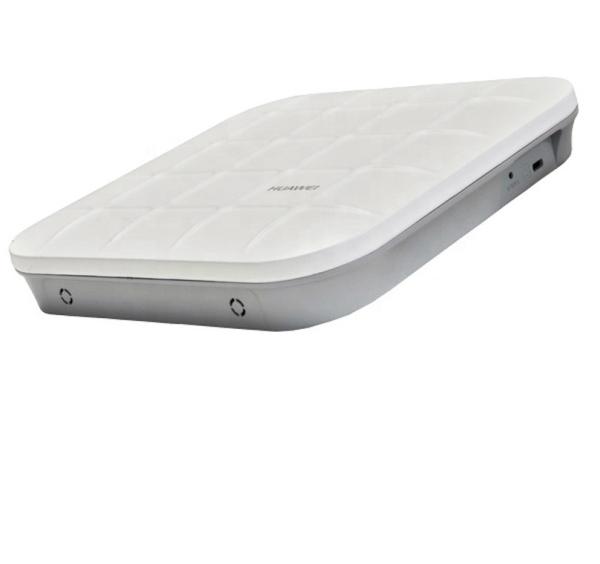

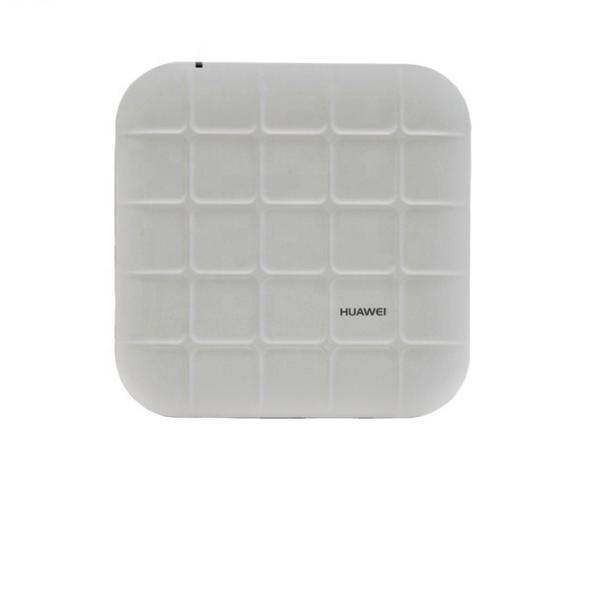

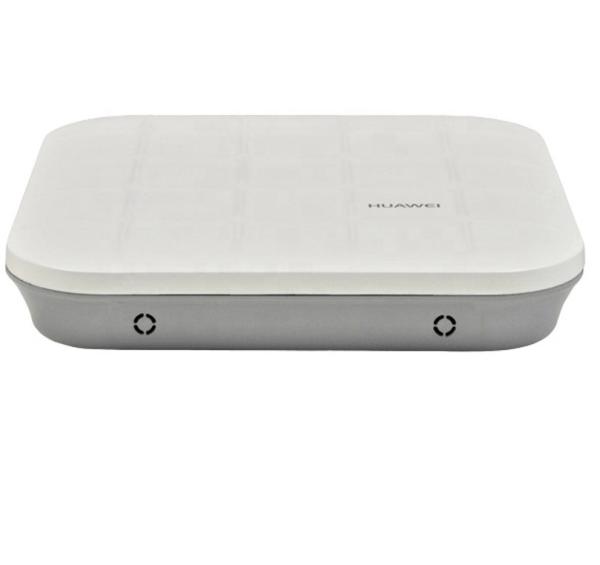

Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Huawei AP3010DN-V2 Indoor POE Wireless Access Point
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei
Model Number :
AP3010DN-V2, AP3010DN-V2
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Use :
FTTX
PoE :
8-port PoE or 4-port PoE+
Forwarding Capability :
4 Gbit/s
Maximum Number of Access Users :
2k
Forwarding Modes :
Direct forwarding (local forwarding) or tunnel forward
Ports :
6 *GE + 2 * GE Combo
Power Supply :
AC
Maximum Number of Managed APs :
256
AP-AC Networking :
Layer 2 or Layer 3 networking
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

Huawei AP3010DN-V2 indoor wireless AP access point enterprise dual band top absorption, fat and thin integration

AP3010DN-V2 is an economical grade 802.11n/ac product launched by Huawei. It is beautiful and practical, and is suitable for deployment in small and medium-sized enterprises, cafes, leisure centers and other business environments.

  • The latest generation of 802.11ac chip technology, 2.4GHz and 5GHz dual-band design;
  • Support 2×2 MIMO, dual frequency rate up to 1.167Gbps;
  • Signal enhancement design, double the coverage;
  • The maximum number of users in the whole machine reaches 128, and the access capability of super users is strong.

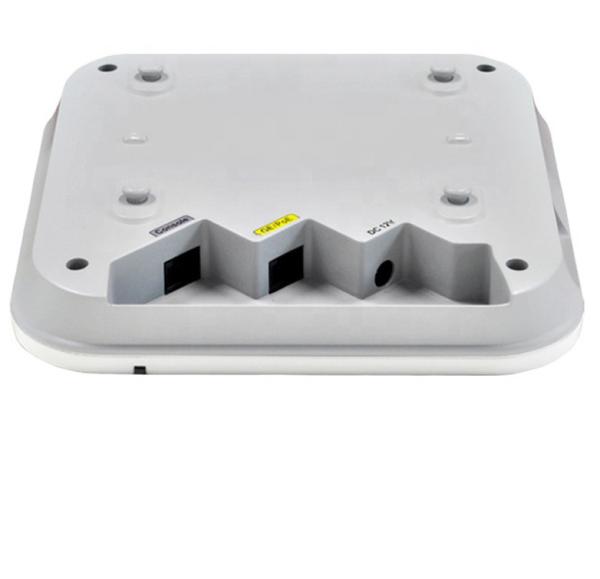

1. Power input interface: 12V DC.

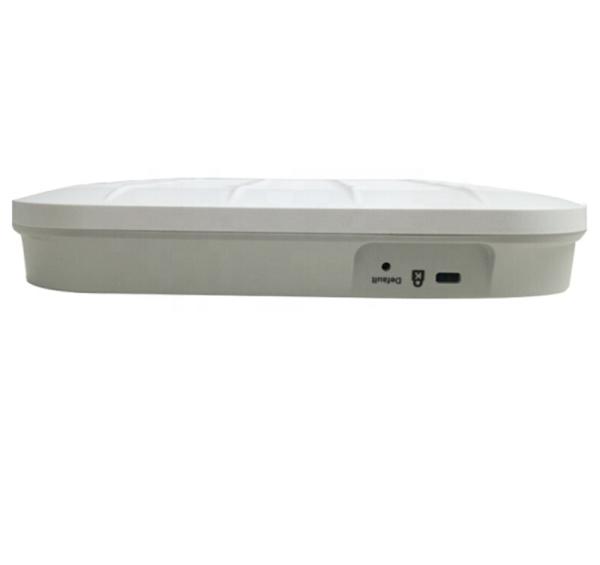

2. Default: reset button, long press for more than 3 seconds to restore the factory Default value.
3. GE/PoE: 10/100/1000m for cable Ethernet connection. The PoE power supply equipment can supply AP power through this interface.
4. Console port: control port, connect maintenance terminal, used for device configuration and management.
5. Lock the device interface: used to ensure the security of the device against theft.
The latest generation of 802.11ac chip technology, 2.4ghz and 5GHz dual-frequency design;
2×2 MIMO is supported, and the dual-frequency rate is up to 1.167Gbps.
Signal enhancement design, coverage doubled;
The maximum number of users of the machine reaches 128, with super user access capacity.
Specifications
AP3010DN-V2
Dimensions (H x W x D)
180mm×180mm×39.5mm
Power Input
DC 12 v + / - 10%
POE power supply: -48v DC
It meets 802.3af/at Ethernet power supply standard
Maximum Power Consumption
10.2W
Operating Temperature
0°C to 40°C
Antenna Type/gain
Built-in smart antennas/2.4G:4dBi 5G:6dBi
Maximum Number of Users
≤128
Maximum Transmit Power
23dBm (combined power)
MIMO: Spatial Streams
2x2:2
Radio Protocols
802.11a/b/g/n/ac
Maximum Rate
1.167Gbps

Huawei AP3010DN-V2 Indoor POE Wireless Access PointHuawei AP3010DN-V2 Indoor POE Wireless Access Point

Huawei AP3010DN-V2 Indoor POE Wireless Access Point


Huawei AP3010DN-V2 Indoor POE Wireless Access PointHuawei AP3010DN-V2 Indoor POE Wireless Access Point


Specifications
AP3010DN-V2
Dimensions (H x W x D)
180mm×180mm×39.5mm
Power Input
DC 12 v + / - 10%
POE power supply: -48v DC
It meets 802.3af/at Ethernet power supply standard
Maximum Power Consumption
10.2W
Operating Temperature
0°C to 40°C
Antenna Type/gain
Built-in smart antennas/2.4G:4dBi 5G:6dBi
Maximum Number of Users
≤128
Maximum Transmit Power
23dBm (combined power)
MIMO: Spatial Streams
2x2:2
Radio Protocols
802.11a/b/g/n/ac
Maximum Rate
1.167Gbps
