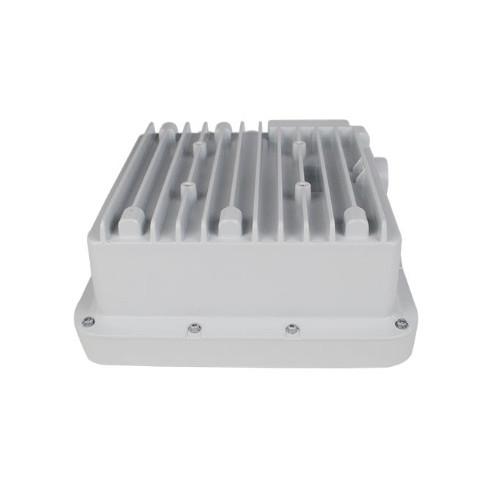

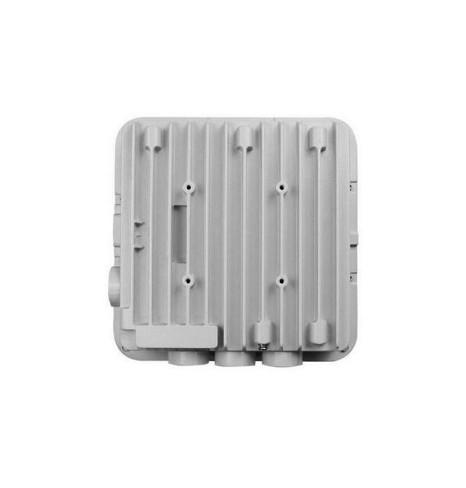

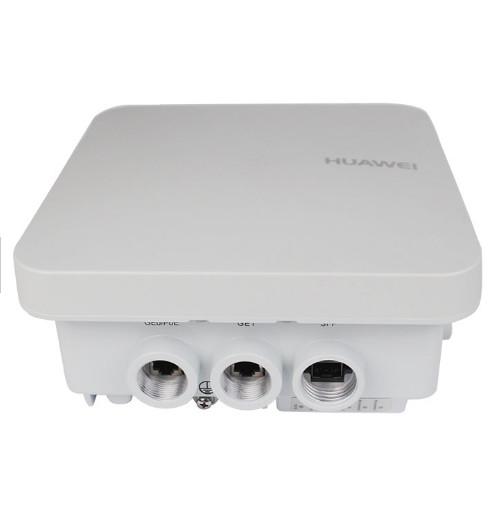

AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
AP8030DN AP8050DN AP8150DN POE Wireless Access Point
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei
Model Number :
AP8030DN/AP8050DN/AP8050DN- S/AP8150DN, AP8030DN/AP8050DN/AP8050DN- S/AP8150DN
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Use :
FTTX
Power Input :
PoE power supply: In compliance with IEEE 802.3 at
Dimensions (length x width x height) :
220mm x 220mm x 100mm
Wireless protocol :
802.11a/b/g/n/ac/ac wave2
Maximum power consumption :
18W
Number of simultaneous online users :
512
Maximum speed :
1.267Gbps
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

AP8050DN & AP8150DN Access Points

Original genuine Huawei AP8030DN/AP8050DN/AP8050DN- S/AP8150DN outdoor AP dual band wireless AP

Huawei AP8050DN and AP8150DN are the latest-generation 802.11ac wave 2 outdoor Access Points (APs) that support 2 x 2 MU-MIMO and two spatial streams. They are recommended for use in coverage scenarios (for example, high-density stadiums, squares, pedestrian streets, and amusement parks) and bridging scenarios (for example, wireless harbors, data backhaul, video surveillance, and train-to-ground backhaul).

Specifications AP8050DN AP8150DN
Dimensions (H x W x D) 100 mm x 220 mm x 220 mm
Power Input PoE power supply: In compliance with IEEE 802.3at
Maximum Power Consumption 18W

Note: The actual maximum power consumption depends on local laws and regulations
Operating Temperature -40°C to 65°C
Antenna Type Built-in antennas External antennas
Maximum Number of Concurrent Users ≤ 256
Maximum Transmit Power 2.4G: 27 dBm (combined power)
5G: 26 dBm (combined power)

Note: The actual transmit power depends on local laws and regulations		 2.4G: 26 dBm (combined power)
5G: 24 dBm (combined power)

Note: The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams 2 x 2:2
Radio Protocols 802.11a/b/g/n/ac/ac wave 2
Maximum Rate 1.267 Gbit/s 1.73 Gbit/s

Improved reliability and performance with surge protection, Bluetooth-based application extension, and reduced O&M

  • 802.11ac wave 2 standards compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radio frequencies; 1.267 Gbit/s for the device
  • Built-in 5 kA surge protectors, reducing network O&M costs
  • Provide 6 kA or 6 kV surge protection capability on an Ethernet interface, and IP67 protection level, meeting industry-level use requirements
  • The AP8150DN can switch from the 2.4 GHz frequency band to the 5 GHz frequency band. When working at dual 5 GHz frequency bands simultaneously, the AP provides a system rate of 1.73 Gbit/s
  • Built-in Bluetooth, allowing for Bluetooth-based application extension
