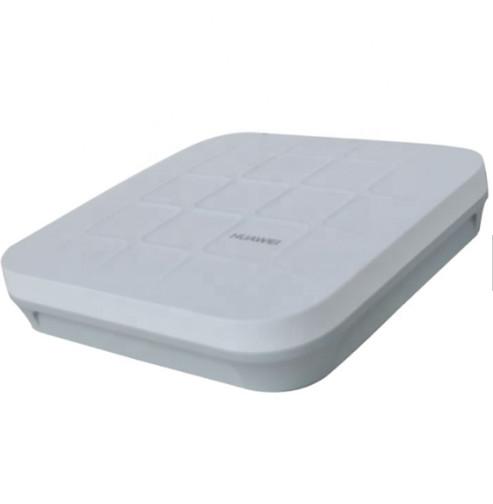

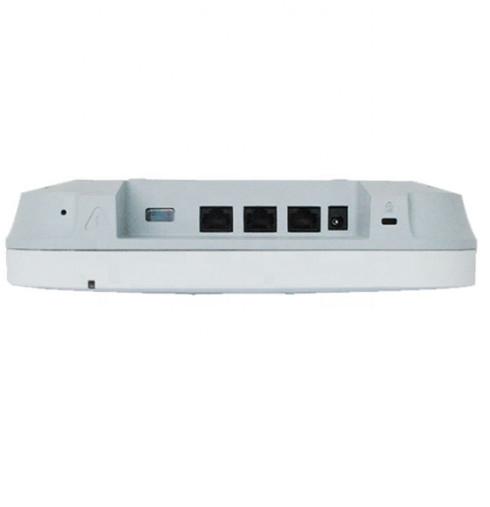

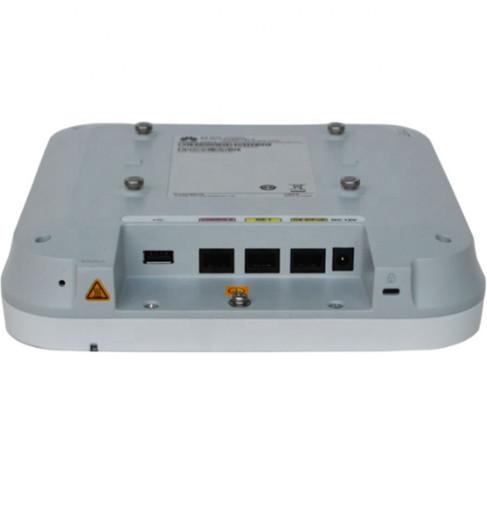

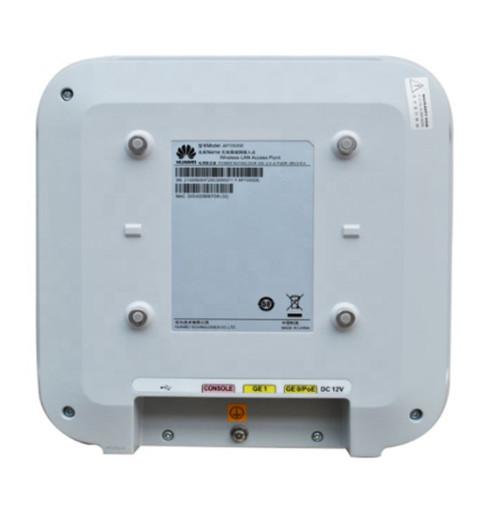

AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
AP7050DE Dual Band 802.11n POE Wireless Access Point
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Huawei
Model Number :
AP7050DE, AP7050DE
Certification :
CE FCC RoHS
MOQ :
Negotiable
Price :
Negotiable
Type :
Optical Fibers
Use :
FTTX
Dimensions (H * W *D) :
53 mm *220 mm *220 mm
Usage :
indoor
Weight :
1.3 kg
Function :
Wireless Access Point
Warranty :
1 Year
Selling Units :
Single item
Single package size  :
57X5X32 cm
Single gross weight :
3.000 kg
Package Type :
new in the box.
Description

AP7050DE Huawei genuine dual band wireless AP performance enhancement level 802.11n Wireless Access Point

AP7050DE Basic specifications
Item
Description
Physical specifications
Dimensions (H x W x D)
53 mm x 220 mm x 220 mm (2.09 in. x 8.66 in. x 8.66 in.)
Weight
1.3kg
System memory
* 512 MB DDR3L
* 16 MB NOR FLASH + 128 MB NAND FLASH
Power specifications
Power input
* DC: 12 V ± 10%
* PoE power supply: in compliance with IEEE 802.3at
Maximum power consumption
24 W (excluding the output power of the USB port)

NOTE:The actual maximum power consumption depends on local laws and regulations.
Environment specifications
Operating temperature
* -60 m to +1800 m: -10°C to +50°C
* 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.
Storage temperature
-40°C to +70°C
Operating humidity
5% to 95% (non-condensing)
IP rating
IP41
Atmospheric pressure
53 kPa to 106 kPa
AP7050DE Radio specifications
Item
Description
Antenna type
Built-in dual-band smart antenna (hardware)
Antenna gain
* 2.4 GHz: 2dBi
* 5 GHz: 3dBi
Maximum number of users
FIT AP: ≤ 512
FAT AP: ≤ 512
Cloud AP: ≤ 512
NOTE:The actual number of users varies according to the environment.
Maximum number of VAPs for each radio
16
Maximum transmit power
* 2.4 GHz: 26 dBm (combined power)
* 5 GHz: 27 dBm (combined power)

NOTE:The actual transmit power depends on local laws and regulations.
Maximum number of non-overlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
* 802.11b/g * 20 MHz: 3
* 802.11n * 20 MHz: 3
* 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
* 802.11a * 20 MHz: 13
* 802.11n * 20 MHz: 13
* 40 MHz: 6
* 802.11ac * 20 MHz: 13
* 40 MHz: 6
* 80 MHz: 3
* 160 MHz: 1
Channel rate supported
* 802.11b: 1, 2, 5.5, and 11 Mbit/s
* 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
* 802.11n: 6.5 to 800 Mbit/s
* 802.11ac wave2: 6.5 to 1733.3 Mbit/s

Huawei AP7050DE Access Point

Huawei AP7050DE is the latest-generation technology-leading wireless access point (AP). It provides secure gigabit wireless access in compliance with the 802.11ac Wave 2 standards. The AP supports 4 x 4 MIMO and four spatial streams and provides a rate of up to 2.53 Gbit/s. The AP has built-in smart antennas and supports smooth evolution from 802.11n standards to 802.11ac standards and meets the bandwidth requirements of large-bandwidth services such as High Definition (HD) video streams, multimedia, and desktop cloud services, delivering smooth and high-quality wireless services to enterprise users. With industry-leading capabilities in terms of signal coverage, access density, and operation stability, the AP provides high-quality mobile cloud access services to help customers build the optimal wireless network. As the 802.11ac Wave 2 AP that uses smart antenna technology, it is more intelligent, secure, and easier to use. The AP7050DE delivers industry-leading performance in a rugged, attractive enclosure and is ideal for indoor coverage scenarios, such as schools and large campuses.

Usage Scenarios AP7050DE

802.11ac Wave 2 standards compliance, MU-MIMO (4SU-4MU), delivering services simultaneously on 2.4G and 5G radios; at a rate of up to 800 Mbit/s at 2.4 GHz, 1.73 Gbit/s at 5 GHz, and 2.53 Gbit/s for the device.
Smart antenna array technology enables targeted signal coverage for mobile terminals, reduces interferences, and improves signal quality. Additionally, it implements millisecond-level switchover as terminals move.
Built-in Bluetooth to implement precise positioning with eSight.
Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability.
USB interface used for external power supply and storage.
Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.
AP7050DE Dual Band 802.11n POE Wireless Access PointAP7050DE Dual Band 802.11n POE Wireless Access PointAP7050DE Dual Band 802.11n POE Wireless Access Point

AP7050DE Dual Band 802.11n POE Wireless Access PointAP7050DE Dual Band 802.11n POE Wireless Access Point
