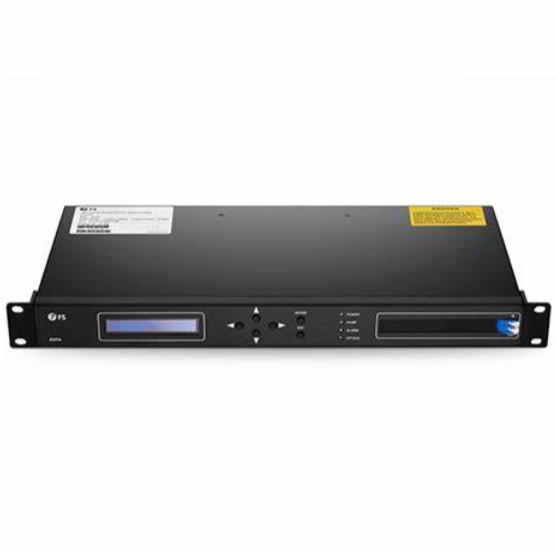

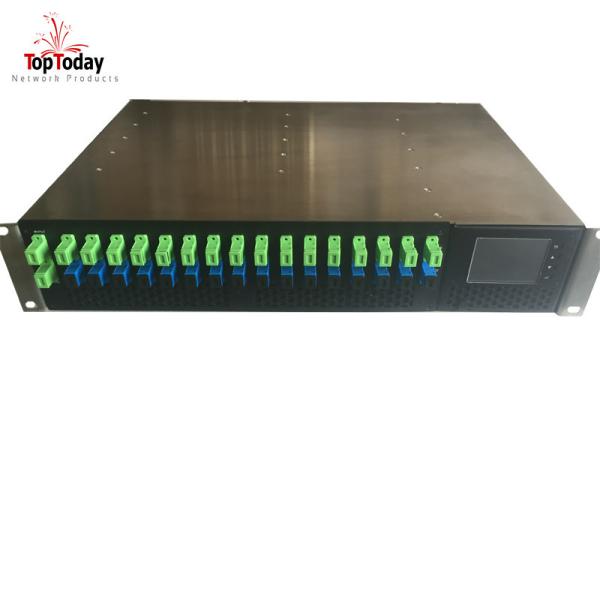

1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA
Specifications
Brand Name :
TPULINK
Model Number :
EDFA-24DB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
5-8days
Packaging Details :
new in the box .
Wavelength :
1528-1563nm (C-Band); 1571-1605nm (L-Band)
Product name :
EDFA Optical Amplifier
Optical connector :
SC/APC&SC/PC
Power supply :
220VAC
Noise figure :
5.5dB ( max 6.0)
Input optical power :
-3~10 dBm,-5dbm~+10dbm
Description

1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA

Descriptions

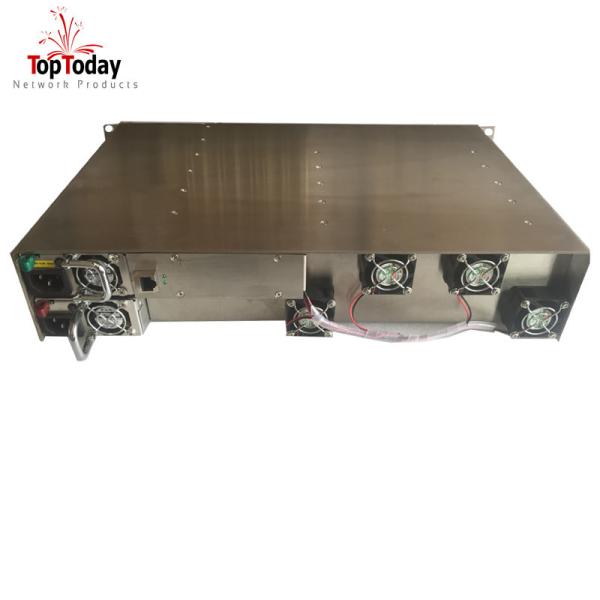

1. 15EAxx EDFA is based on the paragraph 08EAxx improvement model, mainly to solve the external hot backup power supply, users can configure backup power supply according to the power of arbitrary, damaged power supply does not need to open lid can be arbitrary replacement, light box adopts modular structure and convenient maintenance.

2. 15EAxx 1550nm EDFA is an important transmission equipment of 1550nm optical fiber communication system, mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long distance.

3. WS-15EAxx series EDFA optical amplifier technical performance indicators of erbium doped fiber amplifier and the technology can be comparable to similar imported models, and cost-effective, easy installation is choice equipment to build large and medium-size of1550nmcatv optical fiber transmission network.

EDFA Feature

♦ 1540~1563nm operating bandwidth for HA5400 EDFA

♦ 500~5000mW (27~37dBm) high output power

♦ 8~64 outputs is optional

♦ Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )

♦ High performance, high reliability

♦ APC, ACC, ATC controlled selection (HA5400/P)

♦ Powerful RS232 supervisory instruction

♦ Efficient space, flexible installation and easy operation

♦ Excellent P/P ratio

EDFA Parameter

Item

Unit

Technical parameter

Bandwidth

nm

1545~1565

Input optical power

dBm

-5 ~ +10

Max output power

dBm

40

Output power stability

dBm

±0.5

Noise

dB

≤ 5.0

Return loss

Input

dB

≥ 45

Output

dB

≥ 45

Optical connector

SC/APC&LCAPC

C/N

dB

≥ 50

C/CTB

dB

≥ 63

C/CSO

dB

≥ 63

Supply voltage

V

A:AC160V~250V(50Hz);B:DC48V

Consumption

W

≤ 90

Working temperature

℃

-10 - +42

Max relative humidity

%

Max 5% no condensation

Storage temperature

℃

-30 ~ +70

Devise size

mm

464(L)*440(W)*89(H)

Package size

mm

640(L)*640(W)*200(H)

1550nm 24dBm 26dBm catv optical amplifier EDFA dual pump and SNMP EDFA

Our service

1. Warranty 1 years: Direction modulation optical transmitter, High power optical fiber amplifier, Optical receiver, CATV trunk amplifier, FTTH optical receiver.

2. Bulk orders can deliver a certain number of wearing parts, such as power supplies, modules, etc.

3. The damaged products: during warranty period, we can provide parts to replace or repair for free. Outside the warranty period, lifetime warranty, charge a maintenance costs, round-trip freight shall be borne by the buyer. Bulk orders if had provided a certain percentage of free maintenance parts, no warranty.

4. Batch problem: If the products appear batch problems, can be returned.
5. OEM&ODM: We can help you to design and put your good idea into products.
6. Training service support: Provide free training service on installation and debugging.
