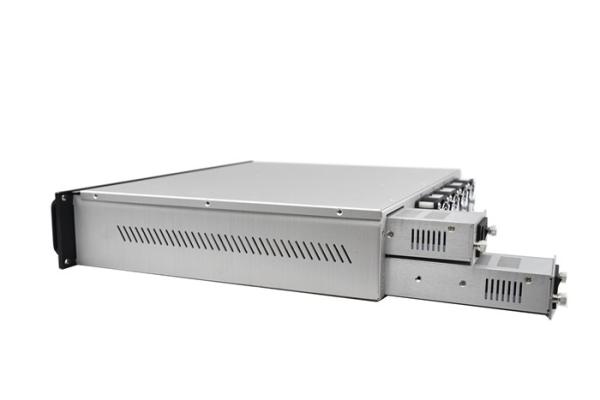

1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
Specifications
Brand Name :
TPULINK
Model Number :
EDFA 16port
Place of Origin :
China, Guangdong
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
PCS
Delivery Time :
5-8days
Packaging Details :
new in the box.
Product name :
EDFA
Application :
CATV/HFC/PON
Output power each port: :
20DB
Optical connector: :
SC/APC or SC/PC or LC/APC or LC/PC
Description

1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network

EDFA Features

♦ 1540~1563nm operating bandwidth for HA5400 EDFA

♦ 500~5000mW (27~37dBm) high output power

♦ 8~64 outputs is optional

♦ Low noise subnumber ( Typ ≤4.5dB, Max ≤5.0dB, Output ≥37dBm )

♦ High performance, high reliability

♦ APC, ACC, ATC controlled selection (HA5400/P)

♦ Powerful RS232 supervisory instruction

♦ Efficient space, flexible installation and easy operation

♦ Excellent P/P ratio

EDFA Parameter

Item

Unit

Technical parameter

Bandwidth

nm

1545~1565

Input optical power

dBm

-5 ~ +10

Max output power

dBm

40

Output power stability

dBm

±0.5

Noise

dB

≤ 5.0

Return loss

Input

dB

≥ 45

Output

dB

≥ 45

Optical connector

SC/APC&LCAPC

C/N

dB

≥ 50

C/CTB

dB

≥ 63

C/CSO

dB

≥ 63

Supply voltage

V

A:AC160V~250V(50Hz);B:DC48V

Consumption

W

≤ 90

Working temperature

℃

-10 - +42

Max relative humidity

%

Max 5% no condensation

Storage temperature

℃

-30 ~ +70

Devise size

mm

464(L)*440(W)*89(H)

Package size

mm

640(L)*640(W)*200(H)

Description

Unit

Value

Conditions / Notes

Optical Specifications

Fiber connector

nm

TVinput:1550nm

COM:1550/1490/1310nm SC/APC

OLT:1310/1490nm SC/UPC

Automatic Switch

ms

≤10

Automatic mode setting

Switch threshold

dBm

-2~+10

Factory default

Input Power

dBm

-3~+10 1550nm

recommend 0~+6dBm

Output Power

dBm

8*17,8*19,8*22

@+6dBm Input

Laser Bias current

Pump

8*17dBm

2500mA±200mA

@+6dBm input

Alarm range: Out of

1000mA~3500mA

Laser Bias current

Pump

8*19dBm

2900mA±200mA

@+6dBm input

Alarm range: Out of

1500mA~3900mA

Laser Bias current

Pump

8*22dBm

2900mA±200mA

@6dBm input

Alarm range: Out of

1500mA~3900mA

Output Power Stability

dB

0.1

@+6dBm Input

Noise Figure

dB

4(max 5.8)

@+6dBm Input

Isolation (Input/Output)

dB

30

Return Loss (Input/Output)

dB

55

Polarization Dependent Gain

dB

max 0.5

Polarization Mode Dispersion

ps

max 0.5

Electrical Specifications

Communication Interface

RJ45, RS-232

9600bps

Input voltage

VAC

90-265

-12/-48 V DC(optional)

Consumption

W

15 maximum

Fuse

A

2

Connector

IEC

Male power connector

Mechanical Specifications

Dimension (HxWxD)

mm

88 ´ 483 ´ 422

Carton:590*590*200

Weight

kg

Net weight 11.5,

gross weight :14.8

Mounting

19” EIA rack, 2U Rack

1550nm CATV 16 ports 22db EDFA WDM Fiber Optical Amplifier for CATV network
