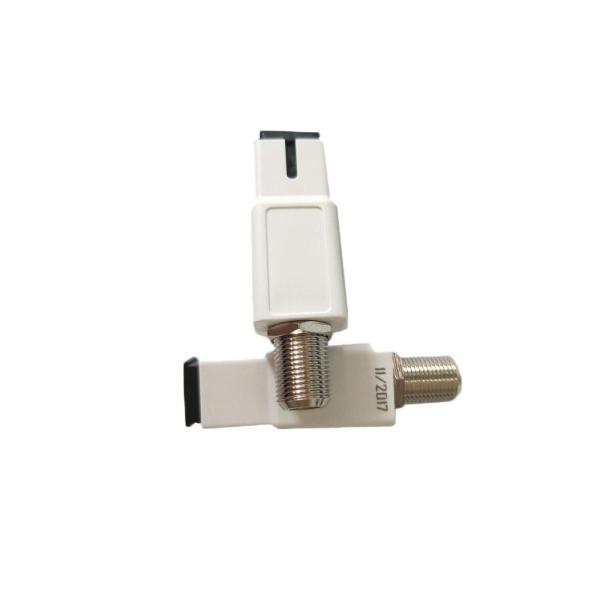

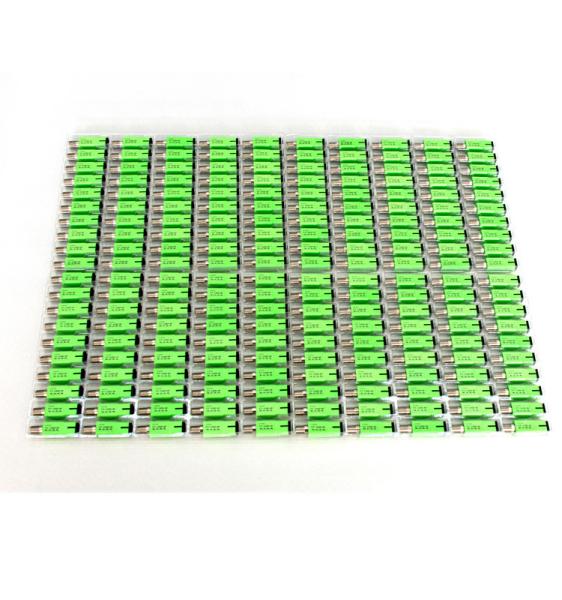

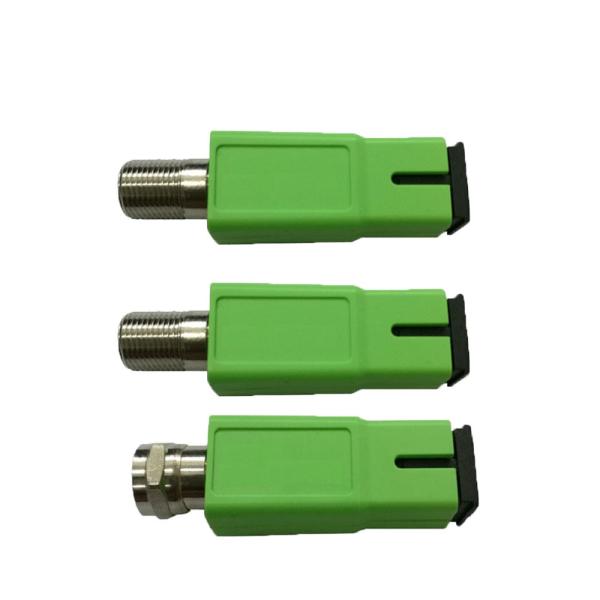

Ftth Optical Passive Node 1550nm Micro Mini Receiver
Ftth Optical Passive Node 1550nm Micro Mini Receiver
Ftth Optical Passive Node 1550nm Micro Mini Receiver
Ftth Optical Passive Node 1550nm Micro Mini Receiver
Ftth Optical Passive Node 1550nm Micro Mini Receiver
Ftth Optical Passive Node 1550nm Micro Mini Receiver
Specifications
Brand Name :
TOPULINK
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000
Delivery Time :
3-5Days
Packaging Details :
new in the box.
Product name :
1550nm micro mini receiver
Warranty :
1year
Optical Connector :
SC/APC SC/UPC
Application :
FTTH FTTB FTTX Network
input power range :
-15~+2dbm
Wavelength :
1310/1550nm
Description

1.No Power required

2.Work bandwidth 45~862MHz

3.Output Level=68d BμV (Pin=-1dBm)

4.OR101:CATV operating wavelength 1100~1620nm.

5.OR101-W: built-in 1310/1490nm filter,suitable for single-fiber triple wavelength system,CATV Operating wavelength 1550nm.

TECHNICAL INDEX

Optic feature Unit Index Supplement

CATV

Work wavelength

 (nm) 1310+1490&1310+1490+1550
Channel Isolation (dB) ≥40 1550nm & 1490nm
Responsibitity (A/W) ≥0.85 1310nm
≥0.9 1550nm
Receiving power (dBm) +2~-14 Digital TV (MER>29dB)
Optical return loss (dB) ≥55
optical connector SC/APC
RF Feature

Female-F

Male-F
Work bandwidth (MHz) 45~1050
Output level (dBμV) >68 Digital TV (Pin=-1dBm)
Return loss (dB) ≥14 47~862MHz
Output impedance (Ω) 75
Output port number 1
RF tie-in F-Female
OMI (%) 4.3

BER <1.0E-9 Pin:+2~-14dBm
Work temp (c) -20~+55
Storage temp (c) -40~85

Work

relative temp

 (%) 5~95

Size (L)×(W)×(H) (mm) 45×12×8 OR101(normal)
Size (L)×(W)×(H) (mm 45×12×8 OR101-15(with fiter)

Ftth Optical Passive Node 1550nm Micro Mini Receiver
