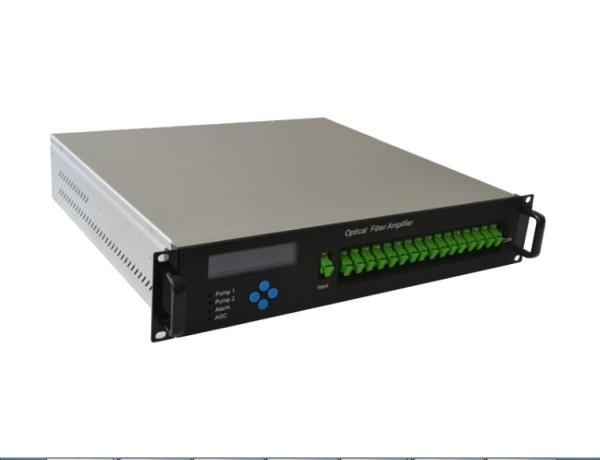

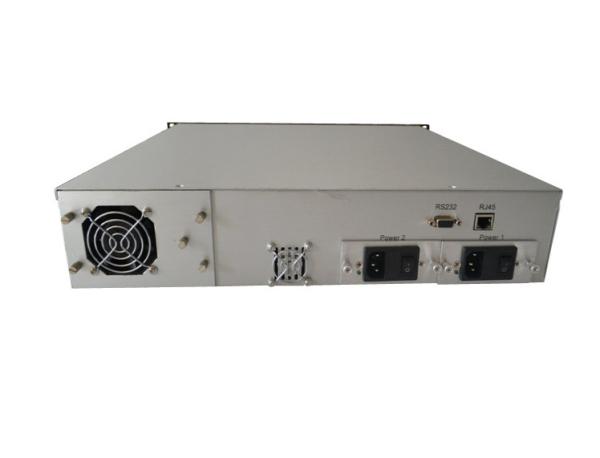

1550nm 32 Port 21dBm DWDM fiber cable EDFA Amplifier
1550nm 32 Port 21dBm DWDM fiber cable EDFA Amplifier
1550nm 32 Port 21dBm DWDM fiber cable EDFA Amplifier
1550nm 32 Port 21dBm DWDM fiber cable EDFA Amplifier
Specifications
Brand Name :
TPULINK
Model Number :
EDFA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs
Delivery Time :
5-8days
Packaging Details :
new in the box.
Wavelength :
1540~1565nm
Output port :
16port
Operating Temperature: :
-5~+65°c
Optical connector: :
SCAPC, SC/UPC
EDFA Noise Figure: :
6db
Description

1550nm optical amplifier 32 port 21dBm DWDM EDFA amplifier fiber cable TV splitter

Item Unit Technical paremeter Supplement
CATV operation wavelength nm 1545~1565 CATV
OLT pass wavelength nm 1310/1490 PON
Input optical power dBm -5 ~ +10
Max output power dBm 40
Output power stability dBm ±0.5
Noise dB ≤ 5.0 Input power0dBm,λ=1550nm
Return loss Input dB ≥ 45
Output dB ≥ 45
Optical connector SC/APC, SC/UPC
C/N dB ≥ 50
C/CTB dB ≥ 63
C/CSO dB ≥ 63
Supply voltage V AC170V~265V; AC90~135V; DC36~72V
Power Consume W ≤ 90
Working temperature ℃ -52

1550nm 32 Port 21dBm DWDM fiber cable EDFA Amplifier
