12-P-160 National Mud Pump Fluid End Module and Accessories
12-P-160 National Mud Pump Fluid End Module and Accessories
12-P-160 National Mud Pump Fluid End Module and Accessories
12-P-160 National Mud Pump Fluid End Module and Accessories
Specifications
Brand Name :
EASTLAND
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
12-P-160 Mud Pump Fluid Ends
12-P-160 National Mud Pump Fluid End Module and Accessories

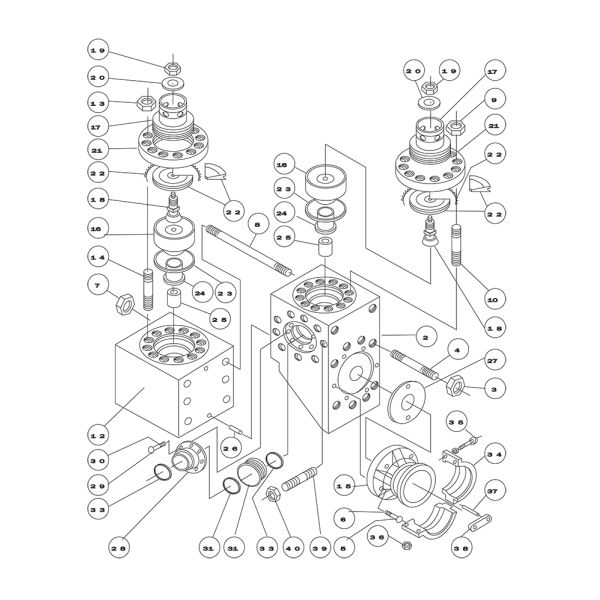

Item P/N Description Qty.
1 0-1292240 Discharge Module Studded, (incl. Items 2-10) 3
2 0-1292241 Discharge Module, Only 3
3 0-6300220 Nut, 1 3/8“ Hvy. Hex 24
4 0-2408029 Stud, 1 3/8“ X 6 3/4", Discharge to Frame 24
5 0-6300180 Nut, 1 1/8“ Hvy. Hex 18
6 0-2408028 Stud, 1 1/8“ X 6 3/8", Discharge to Liner Bushing 18
7 0-6300281 Nut, 1 3/4“ Hvy. Hex 18
8 0-2408033 Stud, 1 3/4“ X 21 1/8", Discharge to Suction 18
9 0-6300240 Nut, 1 1/2 Hvy. Hex 36
10 0-2408027 Stud, 1 1/2“ X 7 7/8" Top, Thread Ring 36
11 0-1292243 Suction Module Studded, (incl. Items 12-14) 3
12 0-1292244 Suction Module, Only 36
13 0-6300240 Nut, 1 1/2 Hvy. Hex 36
14 0-2408027 Stud, 1 1/2“ X 7 7/8" Top, Thread Ring 3
15 0-1293165 Bushing, Liner 3
16 0-1292174 Seal Retainer 6
17 0-1292172 Valve Cover 6
18 0-1292178 Screw, Wedge Adjusting 6
19 0-6300182 Nut, Wedge Adjusting 6
20 0-1292171 Washer, Wedge Adjusting Screw 6
21 0-1292176 Ring, Threaded 6
22 0-G-1292268 Wedge Assembly 6
23 0-1540127 Gasket, Valve Cover 6
24 0-1292140 Holder, Valve Guide Insert 6
25 0-1292141 Insert, Valve Guide 6
26 0-6511416 Pin Dowell 6
27 0-1292266 Plate, Wear 3
28 0-1292252 Connector, Discharge 2
29 0-7000-305-11 Screw Hex Head 16
30 0-7619050 Washer, Lock 16
31 0-1292253 Adapter, Discharge Connector 2
32 0-2410031-433 Packing, Rectangular 2
33 0-2410031-437 Packing, Rectangular 4
34 0-1292167 Clamp, Liner 3
35 7000491-10 Screw 7/8 X 4 ½“ Hex Hd. w/ Lock Washer 6
36 0-6309140 Nut, 7/8“ Lock Type 6
37 0-1292169 Pin, Liner Clamp 3
38 0-1292168 Connector, Liner Clamp 3
39 0-2408015 Stud 1 1/2“ x 7 ½" 16
40 0-6300240 Nut, 1 ½“ Hvy. Hex 16

I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories 12-P-160 National Mud Pump Fluid End Module and Accessories
