Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly
Specifications
Brand Name :
EASTLAND
Model Number :
TPK1300/1600
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
Lewco WH1300 Mud Pump Fluid End

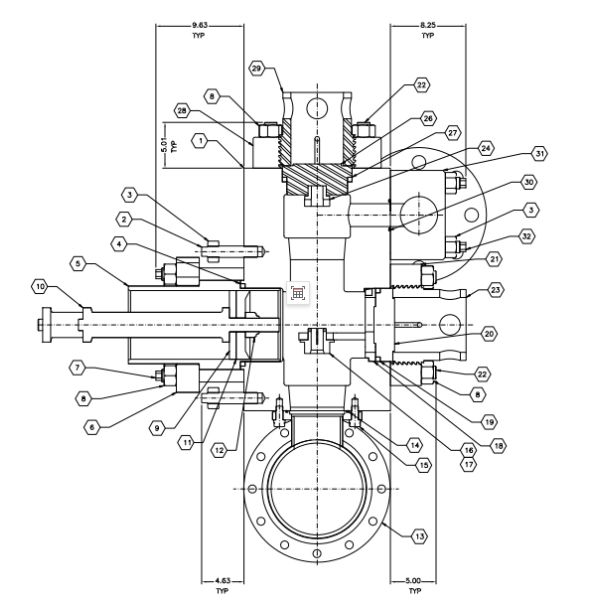

Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly

ITEM DESCRIPTION QTY.
1 machined fluid end 3
2 stud 18
3 nut 30
4 gasket liner 3
5 liner 3
6 liner lock flange 3
7 stud 24
8 nut hx 72
9 piston 3
10 piston rod 3
11 piston rubber 3
12 nut lock nyl ins 1.500 ng8 3
13 suction manifold 1
14 o-ring 3
15 CSCR FH .750 1.750 NC G8 18
16 bushing,valve guide suction 3
17 pin cotter 3
18 lower valve guide 3
19 gasket cylinder head 3
20 cylinder head 3
21 flange cylinder head 3
22 stud 48
23 lock cylinder head 3
24 bushing valve guide discharge 3
25

26 valve cover pot 3
27 gakset valve cover 3
28 flange valve cover 3
29 lock valve cover 3
30 o-ring 3
31 manifold discharge 1
32 stud 1.250 9.000 UN B7 12
33 assy,valve 6


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly
