Lewco W1612 Triplex Mud Pump Fluid End Module Assembly
Lewco W1612 Triplex Mud Pump Fluid End Module Assembly
Specifications
Brand Name :
EASTLAND
Model Number :
TPK1300/1600
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
Lewco WH1612 Mud Pump Fluid End

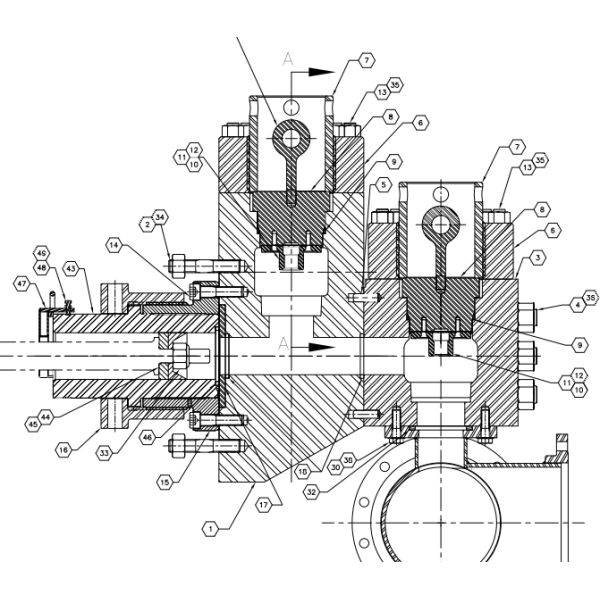

Lewco W1612 Triplex Mud Pump Fluid End Module Assembly

ITEM DESCRIPTION QTY.
1 discharge module 3
2 stud 1.375 6NC V TPR LCK 30
3 suction module 3
4 stud 1.750 8UN 21.00 V TPR LCK 18
5 pin,.875x2.75 6
6 flange,valve cover 6
7 lock,valve cover 6
8 valve cover 6
9 seal, valve cover 6
10 valve guide 6
11 bushing,valve guide 6
12 valve guide screw 12
13 valve cover stud 72
14 liner retainer socket head cap screw 18
15 liner lock flange 3
16 liner lock 3
17 wear plate, liner 3
18 wear plate and module gasket 6
19 discharge connector 2
20 discharge adapter 2
21 back-up ring 4
22 discharge spacer flange 2
23 discharge spacer flange seal 2
24 discharge connector / adapter packing 4
25 discharge connector / adapter packing 2
26 ring gasket 2
27 stud,1.500 6NC 7.500 V TPR LCK 16
28 discharge spacer flange socket head cap screw 16
29 discharge connector screw 16
30 bolt, HX .875 9NC 3.00 G8 24
31 suction manifold,front or side inlet 1
32 suction manifold gasket 3
33 piston rod nut 3
34 1.375 6NC HVY HX NUT 30
35 1.500 6NC HVY HX NUT 88
36 1.750 8NC HVY HX NUT 18
37 .500 lock washer 16
38 .875 lock washer 24
39 valve spring 6
40 valve insert
41 valve seat 6
42 valve complete 6
43 liner 3
44 piston assembly 3
45 piston rubber kits 3
46 liner gasket 3
47 baffle structure 3
48 bolt, HEX 3/8-16NC x 1-1/4 GR.8 9
49 NUT HEX 3/8-16NC GR.8 9


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly Lewco W1612 Triplex Mud Pump Fluid End Module Assembly
