PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
Specifications
Brand Name :
EASTLAND
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
PZ10/PZ11 Mud Pump Fluid Ends
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories

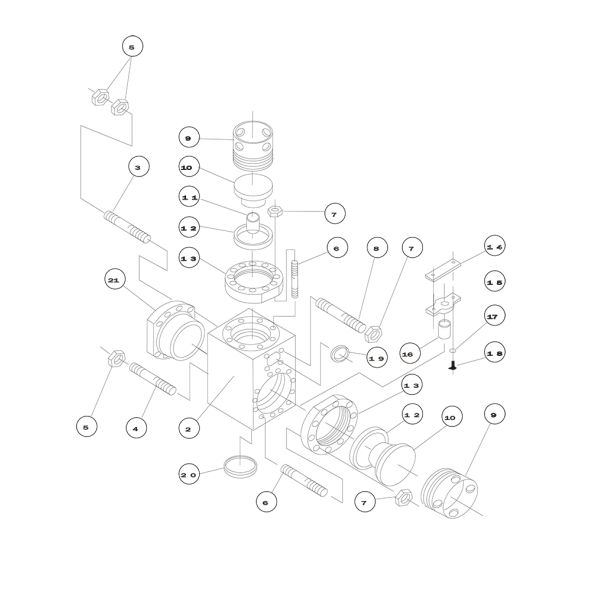

Item P/N Description Qty.
1 0202PZL029B Fluid Module Studded, (incl. Items 2-9) 3
2 　 Fluid Module, Only 3
3 201PZL110 Stud, Long, Moudle to Frame 24
4 205PZL110 Stud, Short, Moudle to Frame 24
5 50B36 Nut, Module to Frame & Liner Clamp 60
6 204PZL110 Stud, Valve Cover to Moudle 72
7 50B34 Nut, Valve Cover to Moudle & Module to Discharge 84
8 202PZL110 Stud, Module to Discharge Manifold 12
9 200PZL587 Cap, Valve Lock 6
10 200PZL147 Cover, Valve 6
11 2007674 Bushing, Valve Guide,Discharge 3
12 204PZL715 Gasket, Valve Cover 6
13 200PZL387 Thread Ring 6
　 200PZL483A Valve Guide Assembly (incl.Items 16-20) 3
14 2011701 Plate, Retainer 1
15 2011700 Valve Guide, Suction 1
16 2007674 Bushing, Valve Guide,Suction 1
17 95W2 Lock Washer,Valve Guide 2
18 655EE06S Screw, Valve Guide 2
19 25A135 Gasket, Discharge Manifold to Module 3
20 25G41 Gasket, Suction Manifold to Moudule 3
21 200PZL455 Liner Clamp 3
I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories PZ10 PZ11 Gardner Denver Mud Pump Fluid End Module and Accessories
