FB1300/1600 Mud Pump Fluid End and Accessories
FB1300/1600 Mud Pump Fluid End and Accessories
FB1300/1600 Mud Pump Fluid End and Accessories
FB1300/1600 Mud Pump Fluid End and Accessories
Specifications
Brand Name :
EASTLAND
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
FB1300/FB1600 Mud Pump Fluid Ends

FB1300/1600 Mud Pump Fluid End and Accessories

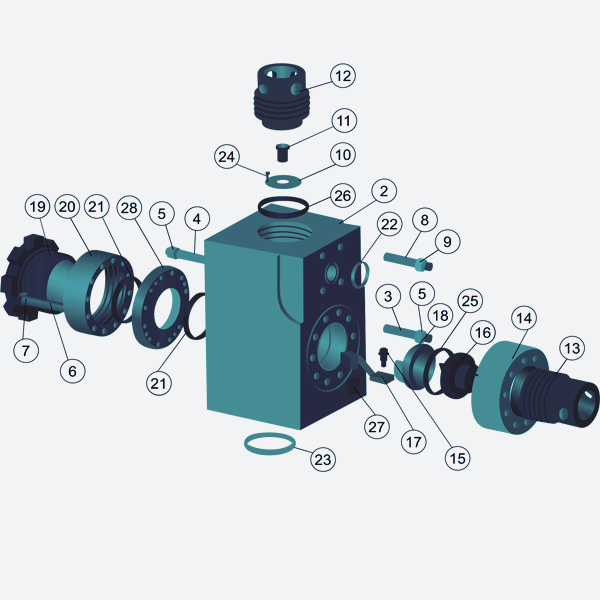

Item P/N Description Qty.
1 0-6316-0357-00 Fluid Module Studded, (incl. Items 2-9) 3
2 0-6316-0356-00 Fluid Module, Only 3
3 0-7507-2210-00 Stud, 1 1/2 - 8 X 8 5/8 30
4 0-7507-2201-00 Stud, 1 1/2 - 8 X 6 7/8 18
5 0-7601-0630-17 Nut, 1 1/2 - 8 Hvy. Hex 48
6 0-7507-2013-00 Stud, 1 - 8 X 9 36
7 0-7601-0610-18 Nut 1 - 8 Stud. Hex 36
8 0-7507-2108-00 Stud, 1 1/4 - 8 x 9 1/2 12
9 0-7601-0630-24 Nut, 1 1/4 - 8 Hvy. Hex 12
10 0-6397-0603-00 Retainer, Valve Guide 3
11 0-6397-0575-00 Upper Valve Guide 3
12 0-6316-0039-00 Valve Cover 3
13 0-6316-0362-00 Cylinder Head 3
14 0-6316-0361-00 Cylinder Thread Ring 3
15 0-6316-0360-00 Lock Bolt, Valve Guide 3
16 0-6316-0364-00 Cylinder Head Plug 3
17 0-6316-0354-00 Low Valve Guide & Bushing 3
18 0-6316-0363-00 Alignment Ring 3
19 0-6316-0367-00 Liner Lock 3
20 0-6316-0366-00 Liner Thread Ring 3
21 0-6316-0373-00 Seal 3
22 0-7602-1600-25 Seal, Discharge Manifold 3
23 0-7602-1600-61 Seal, Suction Manifold 3
24 0-7501-0051-00 Retainer Screw 12
25 0-6316-0369-00 Head Seal 3
26 0-6316-0092-00 Seal, Valve Pot Cover 3
27 0-6316-0096-00 Valve Guide Bushing 3
28 0-6316-0365-00 Wear Plate 3
I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories FB1300/1600 Mud Pump Fluid End and Accessories
