Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
Specifications
Brand Name :
EASTLAND
Model Number :
14P220
Certification :
API 7K
Place of Origin :
WEIFANG,CHINA
MOQ :
1 pcs
Price :
USD 2000-5000
Payment Terms :
T/T
Supply Ability :
100 pcs/month
Delivery Time :
10-20 days
Packaging Details :
iron tray
Description
Bomco F1600HL Mud Pump Fluid Ends

Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & SuctionBomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction

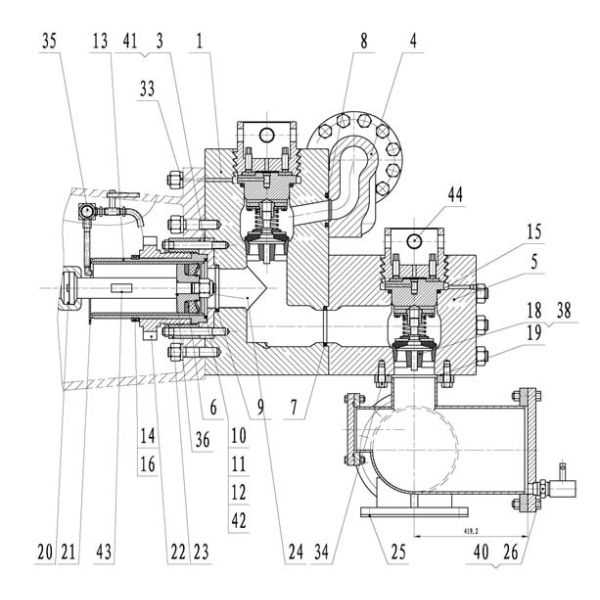

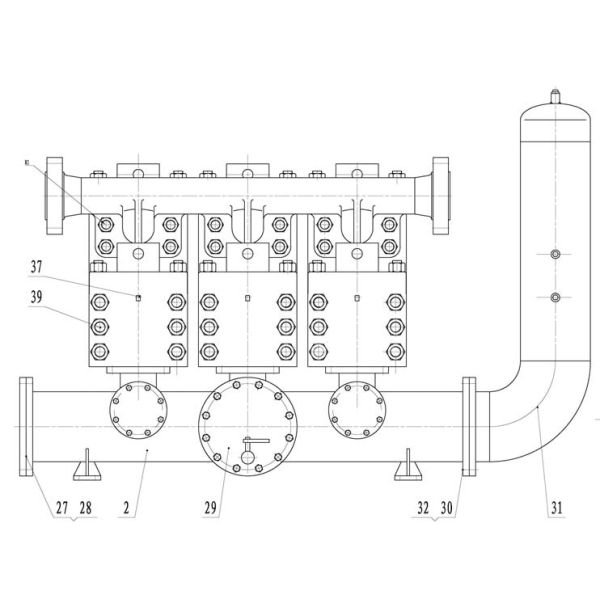

Item P/N Description Qty.
1 A H 1 6 0 2 0 1 - 0 1 0 4 0 0 D i s c h a r g e H y d r a u l i c c y l i n d e r a s s e m b l y 3
2 A H 1 6 0 2 0 1 - 0 1 0 5 0 0 B 1 S u c t i o n p i p e l i n e 1
3 A H 1 6 0 2 0 1 - 0 1 0 7 B 2 A n t i - a b r a s i v e φ 1 9 0 3
4 A H 1 6 0 2 0 1 - 0 1 0 8 D i s c h a r g e p i p e l i n e 1
5 A H 1 6 0 2 0 1 - 0 1 1 0 B 1 S u c t i o n H y d r a u l i c c y l i n d e r 3
6 A H 1 6 0 2 0 1 - 0 1 1 1 0 0 P i s t o n 3
7 A H 1 6 0 2 0 1 - 0 1 1 3 H y d r a u l i c c y l i n d e r s e a l i n g r i n g 3
8 A H 1 6 0 2 0 1 - 0 1 1 4 D i s c h a r g e p i p e s e a l i n g r i n g 3
9 A H 1 6 0 2 0 1 - 0 1 1 5 A n t i - a b r a s i v e s e a l i n g r i n g 3
10 A H 1 6 0 2 0 1 - 0 1 1 6 B 4 C y l i n d e r s l e e v e s e a l i n g r i n g ( φ 1 7 0 ) 3
11 A H 1 6 0 2 0 1 - 0 1 1 6 B 5 C y l i n d e r s l e e v e s e a l i n g r i n g ( φ 1 8 5 ) 3
12 A H 1 6 0 2 0 1 - 0 1 1 6 B 6 C y l i n d e r s l e e v e s e a l i n g r i n g ( φ 2 2 0 ) 3
13 A H 1 6 0 2 0 1 - 0 1 1 8 0 0 C y l i n d e r s l e e v e 3
14 A H 1 3 0 1 0 1 - 0 5 1 8 C y l i n d e r s l e e v e l o c k r i n g 3
15 A H 1 6 0 2 0 1 - 0 1 2 2 B 1 Va l v e d e c k s e a l i n g r i n g 6
16 5 3 0 3 0 1 0 1 2 0 0 0 0 7 0 0 1 5 O r i n g φ 2 0 0 * 7 . 0 0 F P M 3
17 A H 1 0 0 1 0 1 - 0 5 2 9 Va l v e s p r i n g 6
18 A H 1 6 0 2 0 1 - 0 1 1 9 0 0 B 1 Va l v e a s s e m b l y A P I 7 6
19 5 3 0 3 0 1 0 1 1 8 5 0 0 7 0 0 1 5 O r i n g φ 1 8 5 * 7 . 0 0 F P M 3
20 A H 1 3 0 1 0 1 - 0 5 1 9 0 0 C l a m p a s s e m b l y 3
21 A H 1 3 0 1 0 1 - 0 5 2 0 C y l i n d e r s l e e v e e n d c o v e r 3
22 A H 1 3 0 1 0 1 - 0 5 1 5 B 1 C y l i n d e r s l e e v e p r e s s u r e c o v e r 3
23 A H 1 3 0 1 0 1 - 0 5 1 4 C y l i n d e r s l e e v e f l a n g e 3
24 T 5 0 7 - 3 0 5 . 0 0 L o c k N u t M 3 9 * 3 3
25 A H 1 3 0 1 0 1 - 0 5 2 3 0 0 G a s k e t s e t 4
26 5 2 0 2 0 3 0 8 0 2 0 0 4 0 0 0 0 2 I n n e r j o i n t N P T 1 1 / 2 " 1
27 A H 1 0 0 1 0 1 - 0 5 2 6 S u c t i o n f l a n g e ( I I ) 1
28 5 3 0 3 0 1 0 1 3 4 5 0 0 7 0 0 1 5 O r i n g φ 3 4 5 * 7 . 0 0 F P M 3
29 A H 1 0 0 1 0 1 - 0 5 2 5 S u c t i o n f l a n g e ( I ) 1
30 4 2 0 2 0 1 0 1 1 1 2 7 0 9 0 0 6 0 B o l t M 2 7 * 9 0 - 8 . 8 - Z n . D 36
31 A H 0 0 0 0 0 5 - 0 8 0 0 S u c t i o n a i r d o m e 1
32 4 2 0 4 0 2 0 1 6 2 7 0 4 0 0 0 0 0 N u t M 2 7 - 8 - Z n . D 36
33 A H 1 0 0 1 0 1 - 0 5 2 7 W a s h e r 3 9 30
34 420201011122050060 Bolt M22*50-8.8-Zn.D 18
35 AH160201-012000B3 Spraying pipe assembly 1
36 AH100101-0515B1 Piston sealing ring 3
37 AH160201-0121 90°bend NPT3/8 3
38 AH000002-0900B1 HP valve assembly 6
39 170506010100243000 Loctite glue 243 1
40 441305011104164038 Ball valve Q11SF-16P NPT1 1/2" 1
41 AH160201-0107B1 Wear-resisting diskφ180 3
42 AH160201-0116B7 Cylinder sleeve lock ring(φ200) 3
43 AH130101-0516 Piston rod 3
44 AH160201-012300 Valve cover assembly 6
I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction Bomco F1600HL Drilling Mud Pump 7500PSI Module Dishcarge & Suction
