White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
White PTFE Plugged Bronze Bushings For Marine Industry
Specifications
Material :
Bronze+SL4 or PTFE
Application :
Marine Industry, Turbines, Port equipments
Description :
Oiles 500AB-SL4 bronze bearing
Avalibility :
Cylindrical bronze bearing, Collared bronze bushing, Bronze Thrust Washer
Lubrication :
SL4 or PTFE lurbicated
Model Number :
JDB-80
Advantage :
Perfect performance for a humid and seawater condition
Description
White PTFE Plugged Bronze Bushings For Marine Industry
JDB-80 White PTFE Lubricant Inlaid Bronze Oilless Bearing for Marine Industry

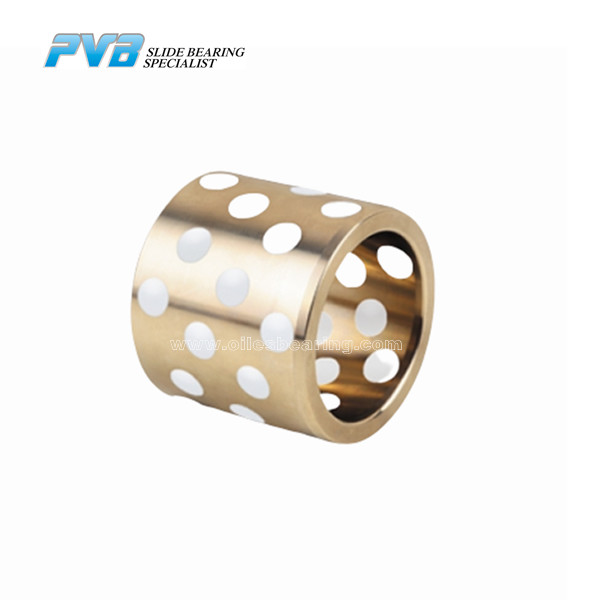

JDB-80 Oilless white PTFE plugged bronze bearing is made of aluminum bronze base material with white PTFE plugged. This type of self-lubricating bearing is specially designed for marine industry and underwater situations. It's also called 500 oilless bearing or marine industry bronze oilless bearing.
Material Specifications
CuAl10Ni5Fe5 + SL4 or PTFE
Other materials can be manufactured based on your design requirements.
Key Characteristics
  • Special suitability for humid or underwater applications
  • Excellent resistance to chemical attack and corrosion
  • Maintenance-free operation
Product Availability
  • Cylindrical oilless bushing, flanged oilless bearing, thrust washer, and oilless slide plate are standard fabrications
  • Special designs and materials can be manufactured according to your specifications
  • Custom materials can be produced based on your requirements
Applications
JDB-80 solid bronze oilless bearing is widely used in port machinery, marine industry, and wind power generators.
Technical Data
Lubrication Conditions Dry
Service Temperature Range (°C) -40 to +80
Allowable Maximum Contact Pressure P (N/mm²) 34
Allowable Maximum Velocity V (m/s) 0.25
Allowable Maximum PV Value (N/mm²・m/s) 1.65
Bronze Base Material International Codes
Common Name International Code
Standard China | Germany | Japan | European | British | Italy | American
GB1176-87 DIN | JIS | (EN 1982) | BS 1400 | JM | ASTM(UNS)
Manganese bronze ZCuZn25Al5Mn4Fe3 | CuZn25Al5 | CAC304/HBsC4 | HTB2 | JM-18 | C86300(SAE430B)
Nickel-Aluminum Bronze CuAl10Ni5Fe5 | G-CuAl10Ni | AlBC3 | CB333G | AB2 | JM7-15 | C95500
Leaded bronze / Gun Metal ZCuSn5Pb5Zn5 | CuSn5ZnPb | BC6 /BC6C | CC491K / CB491K | LG2 | JM1-15 | C83600(ASTM B 505)
Leaded bronze / Gun Metal ZCuSn7Zn4Pb7 | G-CuSn7ZnPb,RG-7 | CC493K | LG2 | JM-1 | C93200(SAE660)
Tin Bronze ZCuSn12 | G-CuSn12 | CAC503B | CC483K /CB483K | PB2 | JM3-15 | C90800(ASTM B 427)
High leaded tin bronze ZCuSn10Pb10 | CuSn10Pb10-C | CC495K / CB495K | LB2 | JM-15 | C93700 / SAE64
High leaded tin bronze CuSn7Pb15 | CuSn7Pb15-C | CC496K | AB2 | JM-4 | C93800
