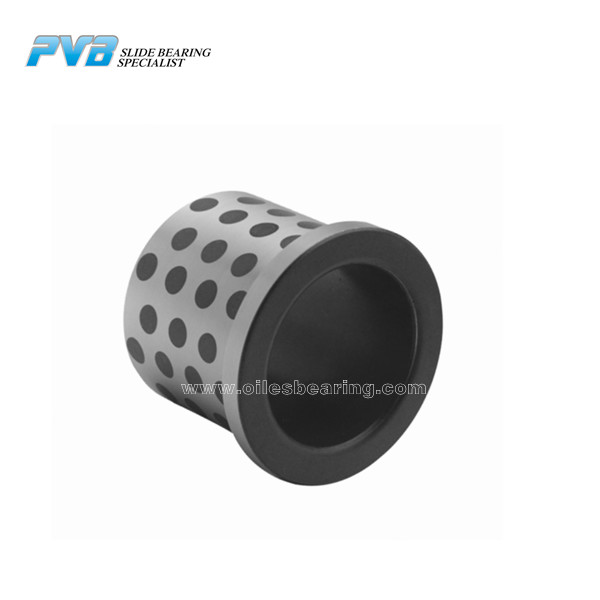

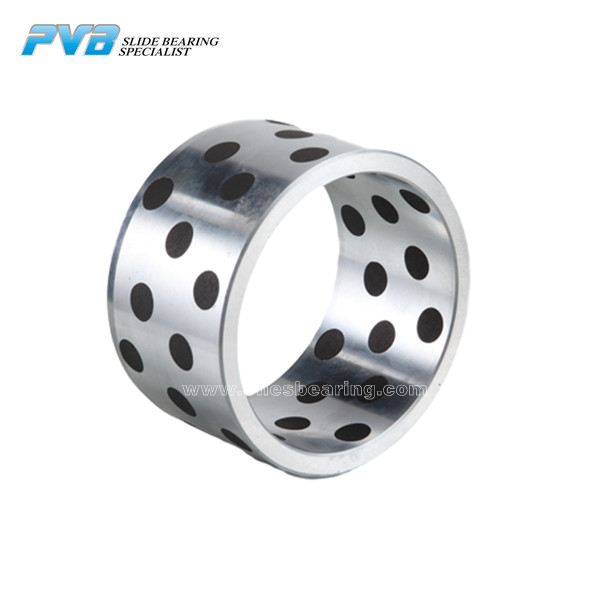

FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
Specifications
Model Number :
JDB-40
Description :
cast iron oiles bearing
Material :
FC250+Graphite
Application :
Punch Machine, Construction
Avalibility :
Cylindrical bronze bearing, Collared bronze bushing, Bronze Thrust Washer
Lubrication :
graphite lubricated,maintentance-free
Standard :
DIN 1850 / ISO 4379
Description
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
JDB-40 Cast Iron Graphite Inlaid Self lubricating Oilless Bushing
JDB-40 Cast iron oilless bearing is made of HT250 cast steel with graphite lubricant. This type cast steel oilless bearing is a cost saving type of cast bronze bushing. It's also called steel graphite oiles bearing, cast steel oilless bearing, graphite plugged self lubricating bushing, oilless guide bushes and solid lubricants sliding bearing.
Material
HT250 + graphite
Characteristics
  • Performs great for low and middle loads and low velocity operations
  • Excellent wear resistance at locations where proper oil film is hard to be formed due to reciprocating intermittent or oscillating motion
  • Cost lower than bronze alloy based bearings
Availability
  • Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication
  • Special designs can be made according to your design
Application
JDB-40 cast steel oilless bush is widely used in Guide post of mould, mold-frame of plastic injection machine etc.
Technical Data
Material HT250+Graphite
Density 7.35
HB Hardness ≥160
Tensile Strength MPa ≥150
Elongation % ≥12
Thermal Expansion Coefficient 0.8x10*%/°C
Max. Operation Temp. -40~+150°C
Max. load MPa 70
Max. speed m/s (Dry) 0.15
Max. PV (N/mm² *m/s) (Lubricated) 0.8
Mounting Suggestion
  • Housing - Ø: Mounting bevel, min. 1,5 mm x 15-45°
  • Shaft Material: Hardened steel, surface roughness < Rz 6,3
  • Shaft: Mounting bevel, 5 mm x 15°, edges rounded
  • Force fitting mandrel: The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting
Why Choose Us
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
More than 15 years experience
Advanced QC checking equipments
Professional manufacturer and exporter
Professional QC checking team
FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings FC250 Graphite Cast Steel Bearings Oilless Self Lubricating Sleeve Bearings
Professional production team, high quality
Customer focus sales team
Automated mass production, high efficiency
Perfect customer service
Product tags

solid lubricant bearings

,

oilless lubricating bronze bearing

,

plain bearing lubrication
