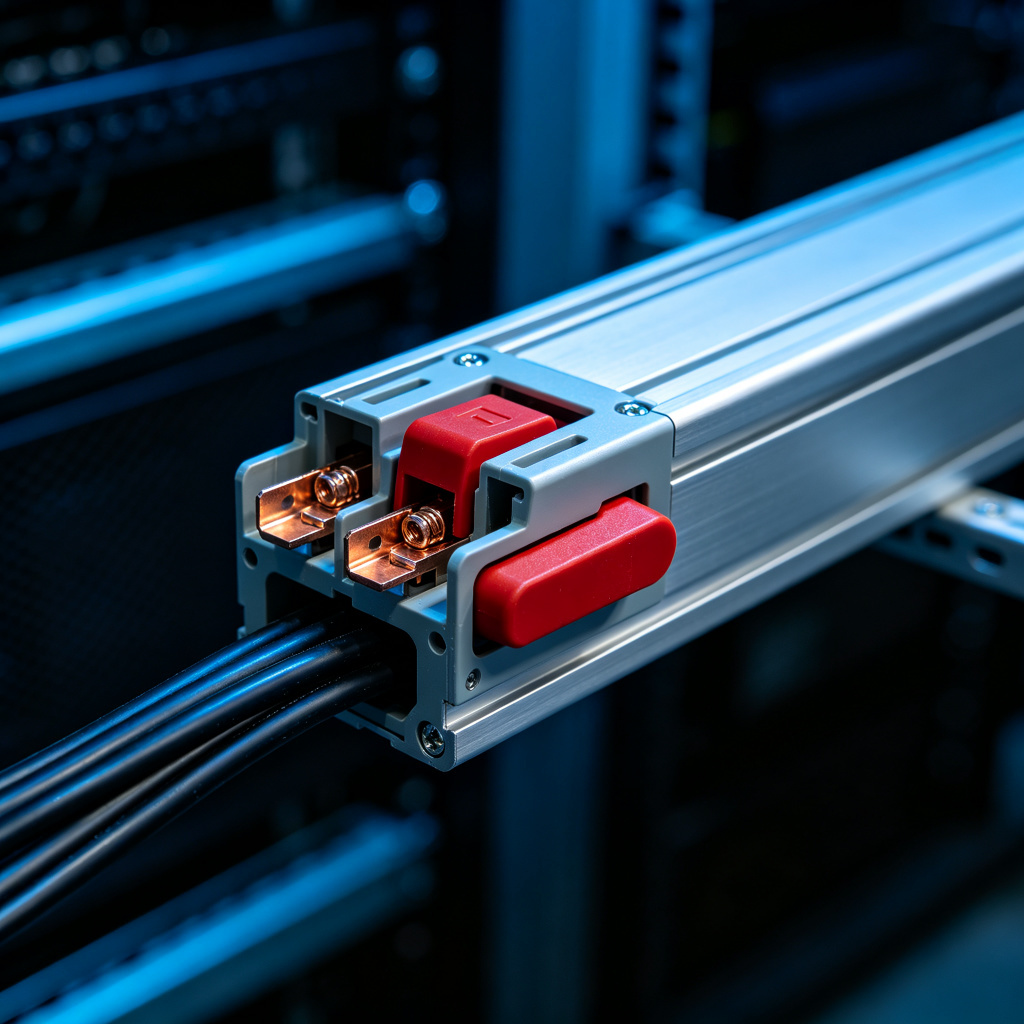

Full Copper Conductor Busway System 800A-5000A with Silver Plated Joints for AI Data Centers
Full Copper Conductor Busway System 800A-5000A with Silver Plated Joints for AI Data Centers
Specifications
Joint Treatment :
Silver plated bolted connections
Dielectric Withstand :
3,750V AC / 1 min
Price :
Negotiable
Supply Ability :
1500 Meters Per Day
Rated Voltage :
AC 690V
Insulation Class :
Class B (130°C)
Temperature Rise :
≤ 70K at rated current
Packaging Details :
Wooden Box
Conductor Material :
99.9% high-conductivity copper
Model Number :
OH-FCB-5000A
Payment Terms :
T/T
Delivery Time :
Depends On Total Quantity
Protection Grade :
IP54
Brand Name :
ohory
Rated Current :
800A - 5,000A
Application :
AI computing power centers, AI data centers, GPU clusters, high-density AI racks
Place of Origin :
Guangdong, China
MOQ :
188 Meters
Short-Circuit Withstand :
100kA / 1s
Certification :
ISO 9001/UL/IEC/CNAS/CMA
Description
Full Copper Conductor Busway 800A-5000A High Conductivity Silver Plated Joints For AI Data Center Efficiency
This full copper busway system is engineered specifically for AI data centers requiring maximum electrical efficiency. Rated from 800A to 5,000A, it utilizes 99.9% high-conductivity copper conductors with silver plated bolted joints to minimize contact resistance and energy loss throughout the entire power distribution system.
Core Advantages
  • Full Copper Conductors: 99.9% high-conductivity copper delivers lower resistance than aluminum equivalents at equal current rating
  • Silver Plated Joints: Silver plating on connection surfaces reduces contact resistance and prevents oxidation over the product lifetime
  • Energy Efficient Operation: Lower power losses translate directly into reduced electricity costs for AI computing facilities
  • Consistent Power Quality: Stable voltage delivery protects GPU servers from voltage dips caused by loose or corroded connections
Technical Specifications
Parameter Value
Rated Current 800A - 5,000A
Rated Voltage AC 690V
Dielectric Withstand 3,750V AC / 1 min
Short-Circuit Withstand 100kA / 1s
Insulation Class Class B (130°C)
Protection Grade IP54
Conductor Material 99.9% high-conductivity copper
Joint Treatment Silver plated bolted connections
Temperature Rise ≤ 70K at rated current
Applications
  • AI computing power centers and AI data centers
  • GPU cluster rooms and high-density AI server racks
  • UPS output to AI rack power distribution units (PDU)
  • Colocation and enterprise data halls with high-density AI workloads
Quality & Service
Manufactured under ISO 9001 quality management with UL/IEC/CNAS/CMA certified testing. OEM and ODM support available, with complete drawings and technical documentation provided upon request.
