Sandwich Busway System 1250A-5000A Low Impedance with Tool-free Tap-Off for AI Data Center Power Distribution
Sandwich Busway System 1250A-5000A Low Impedance with Tool-free Tap-Off for AI Data Center Power Distribution
Sandwich Busway System 1250A-5000A Low Impedance with Tool-free Tap-Off for AI Data Center Power Distribution
Sandwich Busway System 1250A-5000A Low Impedance with Tool-free Tap-Off for AI Data Center Power Distribution
Specifications
Supply Ability :
1500 Meters Per Day
Temperature Rise :
≤ 70K at rated current
Payment Terms :
T/T
Dielectric Withstand :
3,750V AC / 1 min
Model Number :
OH-SB-5000A
Rated Voltage :
AC 690V
Certification :
ISO 9001/UL/IEC/CNAS/CMA
MOQ :
188 Meters
Protection Grade :
IP54 (IP66 optional)
Insulation Class :
Class B (130°C)
Tap-Off Options :
Tool-free plug-in units every 500 mm (optional)
Delivery Time :
Depends On Total Quantity
Conductor Material :
High-conductivity copper, tin-plated joints
Price :
Negotiable
Brand Name :
ohory
Rated Current :
1,250A - 5,000A
Place of Origin :
Guangdong, China
Packaging Details :
Wooden Box
Application :
AI computing power centers, AI data centers, GPU clusters, high-density AI racks
Short-Circuit Withstand :
100kA / 1s
Description
Sandwich Busway System 1250A-5000A Low Impedance Low Voltage Drop For AI Data Center Power Distribution
Product Overview

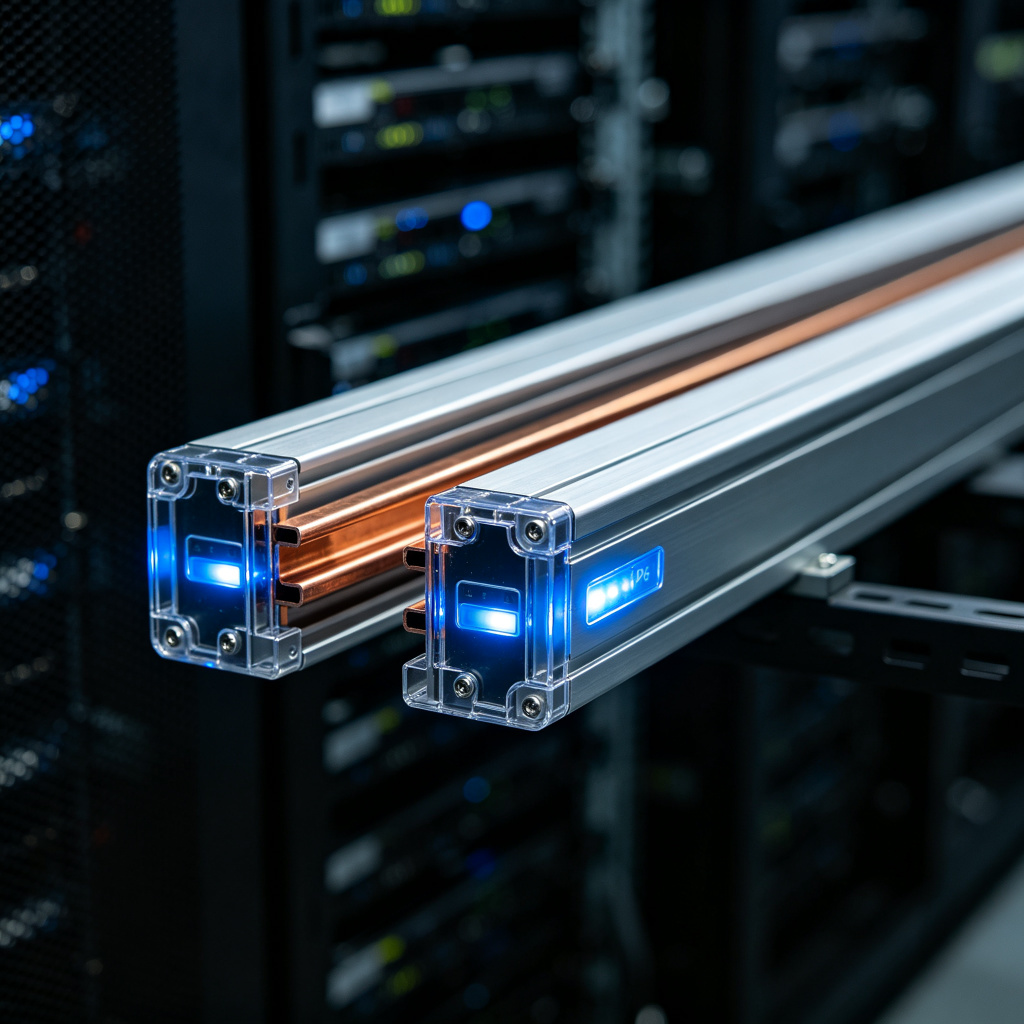

This sandwich-type busway system is a compact, low-impedance power distribution backbone purpose-built for AI computing power centers and GPU cluster facilities. Rated from 1,250A to 5,000A, it delivers stable power from the UPS output to high-density AI server racks with minimized voltage drop and reduced energy loss for reliable 24/7 operation of power-hungry AI infrastructure.

Core Advantages
  • Low Impedance, Low Voltage Drop: Optimized conductor geometry lowers reactance and voltage drop along long distribution runs, protecting sensitive AI servers and GPU nodes from voltage fluctuation.
  • 100kA Short-Circuit Withstand: Rigid sandwich construction with high-strength insulation delivers excellent mechanical and electrical strength under fault conditions.
  • Compact Space-Saving Design: Slim cross-section fits above racks and in shallow ceiling plenums, maximizing white space in the AI computing power center.
  • Flexible Tap-Off: Tool-free plug-in tap-off units can be installed every 500 mm, enabling rapid load reconfiguration for evolving AI workloads without power interruption.
  • Low Temperature Rise: High-conductivity copper conductors with tin-plated joints keep temperature rise within limits for continuous high-load AI computing operation.
Technical Specifications
Parameter Value
Rated Current 1,250A - 5,000A
Rated Voltage AC 690V
Dielectric Withstand 3,750V AC / 1 min
Short-Circuit Withstand 100kA / 1s
Insulation Class Class B (130°C)
Protection Grade IP54 (IP66 optional)
Conductor Material High-conductivity copper, tin-plated joints
Temperature Rise ≤ 70K at rated current
Tap-Off Options Tool-free plug-in units every 500 mm (optional)
Applications
  • AI computing power centers and AI data centers
  • GPU cluster rooms and high-density AI server racks
  • UPS output to AI rack power distribution units (PDU)
  • Colocation and enterprise data halls with high-density AI workloads
Quality & Service
Manufactured under ISO 9001 quality management with UL/IEC/CNAS/CMA certified testing. OEM and ODM support available, with complete drawings and technical documentation provided upon request.
