AI+ Intelligent Busway System for 100kW-Class High-Density Racks with Low Temperature Rise and Molecular-Shield Insulation
AI+ Intelligent Busway System for 100kW-Class High-Density Racks with Low Temperature Rise and Molecular-Shield Insulation
Specifications
Delivery Time :
Depends On Total Quantity
Operating Temperature :
-20°C to +60°C
Rated Voltage :
AC 690V
Payment Terms :
T/T
Place of Origin :
Guangdong, China
Supply Ability :
1500 Meters Per Day
Packaging Details :
Wooden Box
Supported Rack Class :
100kW-class high-density racks
Price :
Negotiable
Temperature Rise :
≤ 30 K at full load
Partial Discharge :
≤ 5 pC
Insulation Technology :
Molecular-Shield solid insulation
Protection Grade :
IP68
Brand Name :
ohory
Model Number :
AI+IB-100K
Power-Frequency Withstand :
8 kV
MOQ :
188 Meters
Certification :
ISO 9001/UL/IEC/CNAS/CMA
Rated Current :
1,250A - 6,300A
Application :
AI data centers, GPU clusters, HPC, 100kW-class high-density racks, UPS output to rack rows
Description
AI+ Intelligent Busway System 100kW Class High Density Rack Power Low Voltage Drop Backbone For GPU Clusters
Product Overview

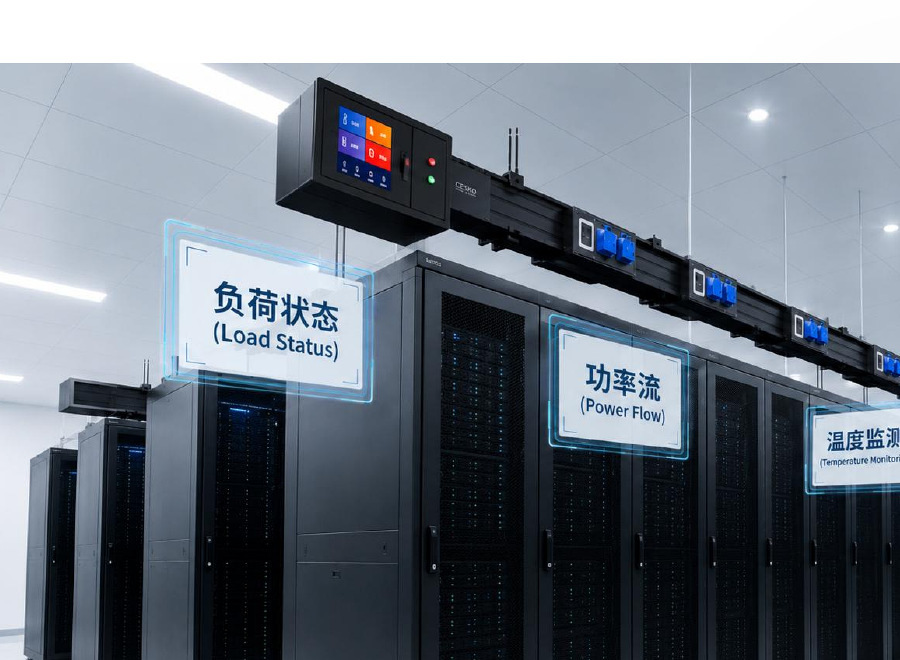

AI+ Intelligent Busway System for 100kW-Class High-Density Rack Power Distribution

Designed for the 100kW-class high-density rack era, this AI+ intelligent busway delivers the high continuous current capacity, low impedance and low temperature rise that AI server racks and GPU clusters demand, keeping voltage stable under sustained full-load computing.

Core Advantages
  • 100kW-Class Rack Ready: Continuous high-current backbone supports the densest AI rack deployments without voltage-drop pressure
  • Low Impedance Design: Optimized conductor geometry minimizes reactance and voltage drop along long rack rows
  • Low Temperature Rise: ≤30K temperature rise at full load protects connections during long-duration AI training
  • Dynamic Load Response: Handles rapid GPU workload start-stop cycles with stable power delivery
Technical Specifications
Parameter Value
Rated Current 1,250A - 6,300A
Supported Rack Class 100kW-class high-density racks
Rated Voltage AC 690V
Power-Frequency Withstand 8 kV
Partial Discharge ≤ 5 pC
Temperature Rise ≤ 30 K at full load
Protection Grade IP68
Operating Temperature -20°C to +60°C
Insulation Technology Molecular-Shield solid insulation
Applications
  • AI data centers and AI computing power centers
  • GPU clusters and HPC computing halls
  • 100kW-class high-density server racks
  • UPS output to high-density rack row power distribution
Quality & Service
Manufactured under ISO 9001 quality management with UL/IEC/CNAS/CMA certified testing. Intelligent busway system delivered with monitoring platform access, installation guidance and technical documentation. OEM and ODM support available.
