950.000kg Gross Weight Commutator Mica Undercutting Machine for Starter Armature
950.000kg Gross Weight Commutator Mica Undercutting Machine for Starter Armature
Specifications
Model NO. :
WIND-CU
Condition :
New
Customized Service :
Provided
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Package Size :
1500.00cm * 800.00cm * 1750.00cm
Package Gross Weight :
950.000kg
Description

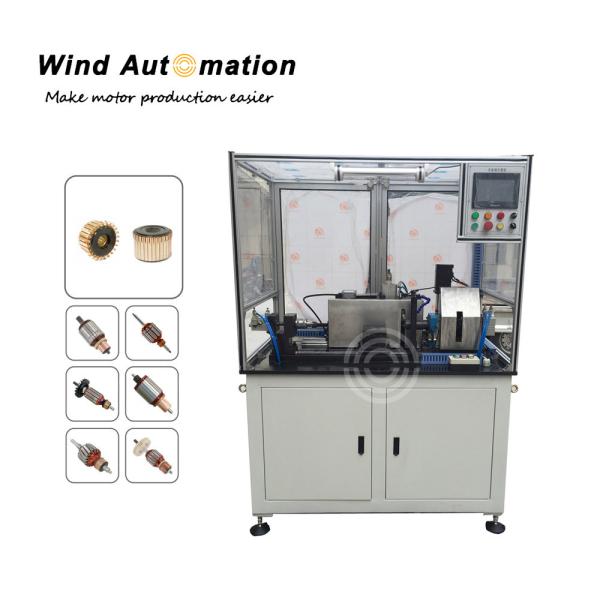

Commutator Mica Undercutting Machine For Starter Armature
950.000kg Gross Weight Commutator Mica Undercutting Machine for Starter Armature

This commutator undercutting machine is designed to undercut the DC motor armature mica. Laser sensor ensures high slot positioning accuracy, while Mitubushi servo motor and planetary reduction guarantee the high slot indexing accuracy. This will be no burrs after undercutting process.

(1) Specifications

Slots adjustable
RPM 2-99
Coletor 3000~5000 Adjustable
Rotor OD Less than 100mm
Power supply AC 380V
Total power 3KW
Mica length Less than 100mm
Number of recipes 10 sets
Armature max length Less than 200mm
Spare parts Cutter
Main part brand SMC
Productivity 2~3s/ slot



(2)Application
This machine is suitable for commutator of DC motors to do mica undercutting.

(3) Features

With vacuum cleaner
No burrs after undercutting process, brush deburring function to clean the copper surface after undercut
Automatic undercutt function for Mica with optical sensor/ Laser sensor to position slot
Use Mitubushi servo motor and planetary reduction to control indexing
Fast movement while undercutting
Can be customized accordingly
Precise control throughout entire undercutting procedure

(4)Competitive advantages
1.Laser sensor automatic positioning the first mica slot and each slots, precise than photoelectric detection.
2.Mitubushi servo motor and planetary reduction mechanism indexing ensure the accurate and reliable effect.
3.The system is extremely rigid, with less jumping and lifting cutter action during undercutting,so the trace path trajectory can be avoided during undercutting engraving, reducing the grooved burrs and improving the accuracy of the undercutting.
4.With strong industrial vacuum cleaner.
