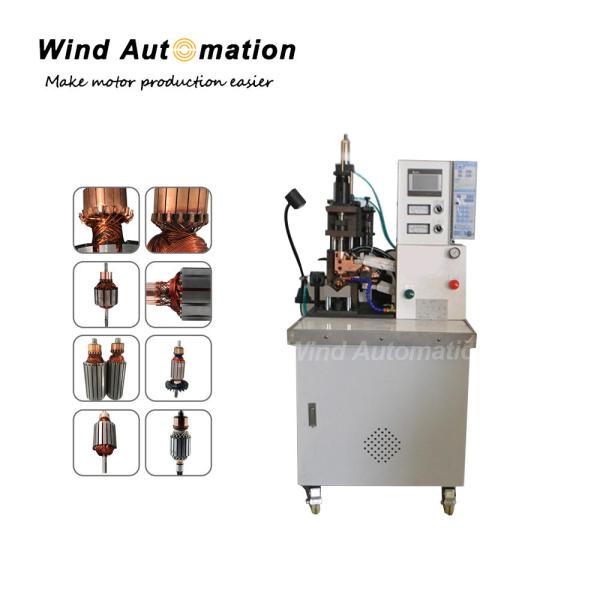

WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder
WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder
Specifications
Model NO. :
WIND-DC-CW003
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
High Frequency Type Armature Fusing machine Commutator Welder
WIND-DC-CW003 High Frequency Middle Size Armature Fusing Machine Commutator Welder
This fusing machine adopts inverter DC technology to do welding. Current is highly concentrated in the welding area, so as the welding period is extremely short. The strong cooling effect of this machine greatly reduces the changes of commutator thermal deformation and oxidation, thus improves the welding quality and efficiency.

(1) Specification
Armature OD 20~100mm
Commutator OD 8~70mm
Stack length 10~100mm
Wire diameter 0.05~1.2mm
Bar No. Random
Air supply 5~7Kg/m2
Power supply 380V 50/60Hz
Weight 350Kg
Dimension 1600x1000x2300mm

(2) Application
It is suitable for both hook and riser type commutator. It is suitable for home appliance, car and power tool motor armature.

(3)Features
High quality level of the welding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic welding, indexing, cooling

(4)Machine configuration
Touch screen
Self-developed welding power, 500~5000A
Mitsubishi PLC and servo positioning system
AIRTAC pneumatic components
Constant temperature water tank
