Specifications
Model NO. :
WIND-CU-8066
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

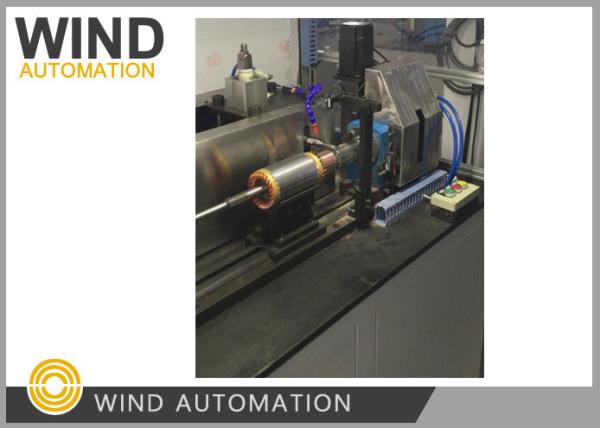

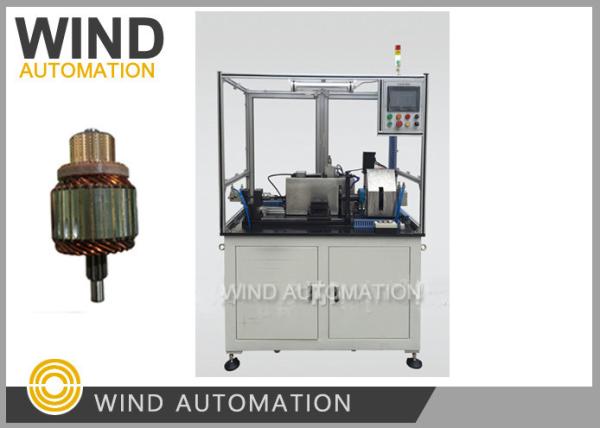

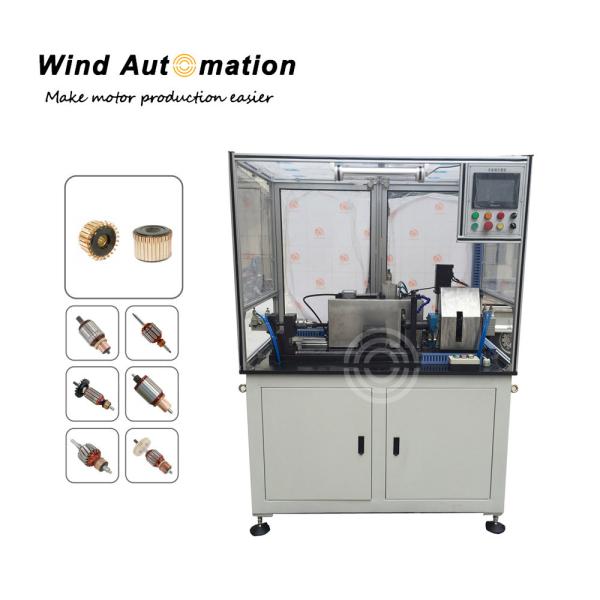

How To Undercut Engines Automatic Commutator Mica Undercutting Machine with Touch Screen
Boost Engine Performance with WIND-CU-8066 Commutator Mica Undercutting Slotting Machine
We can modify the program of machine to let it have more recipes per your requirement such as 30 recipes. Can add a device on the undercutting machine that sands the commutator after the undercutting process,this process can ensure that the commutator will not have any kind of burrs.

(1) Specification
WIND-CU-8066 WIND-CU-8066
2~99 2~99
3000~5000RPM Adjustable 3000~5000RPM Adjustable
30-80mm 30-80mm
<100mm <100mm
380V 380V
3KW
<100mm <100mm
10 Sets So only 10 differents kinds of armatures Can we make a store setup....is that right Yes, only 10 kinds can be stored in touch screen We need at least 50 recipes With 50 Recipies
<200mm We have armature lenght from 142 up to 450mm. (shaft lenght) The size is over standard range, a custom made undercutting machine is needed, Able to use big armatures up to 450mm shaf lenght
Yes, industrial vacuum clearner is included in Wind Automation offer industrial vacuum clearner is included in Wind Automation offer
The cutter Lifting action can ensure no burrs Please send me videos or more details Please check the video
(Armature shaft size below 18mm)		 The cutter Lifting action can ensure no burrs
About 1 minutes (For each slot 2~3 seconds) Production about 60 pieces per hour for a 25 slots armature
Cutter Please inform how many spares of cutters 2pcs
SMC SMC
PLC Tell me the PLC brand PLC brand is Mitsubishi PLC MITsubishi
Aluminium Profiles, stainless steel and steel sheet OK
You can choose from winding-machine.en.made-in-china.com RAL 9001 OK
Safety curtain Safety curtain OK
1300*950*1950mm 1300*950*1950mm 1400*1000*1950mm
60days 60days 90days
15 Month from B/L date 15 Month from B/L date

(2) Features
1. With Mitubishi PLC
2. Rise the cutter before slotting to prevent burr
3. The burr remover device can be added on tailor made machine
4. Machine has the device the recipe must allow to set number of revolution of the armature
while the device is turned on. For example, the armature spins three times CW and three CCW
5. Standard machine transmission mechanism might and part of machine configuration
should be changed to meet the biggest armature size and weight requirement.

6. Automatic undercut function for Mica with optical sensor.
7.Brush deburring function to clean the copper surface after undercut.
8. Fiber optic laser sensor to automatically identify mica slots to align the saw.
Retractable floating spindle follows most skewed mica slots and eliminate constant operator adjustment and indexing assembly.
9.Deburring/polishing attachment
10. Medium duty portable vacuum dust collector for operation on special 3 Ph. Electrics and Dust collector nozzle.
11.Limit switch stop to set length of cutting stroke.
