Specifications
Model NO. :
WIND-DNZ
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Spot Welder for Both Hook and Raiser Type Commutator
Middle Size Spot Welder for Both Hook and Raiser Type Commutator Starter Armature

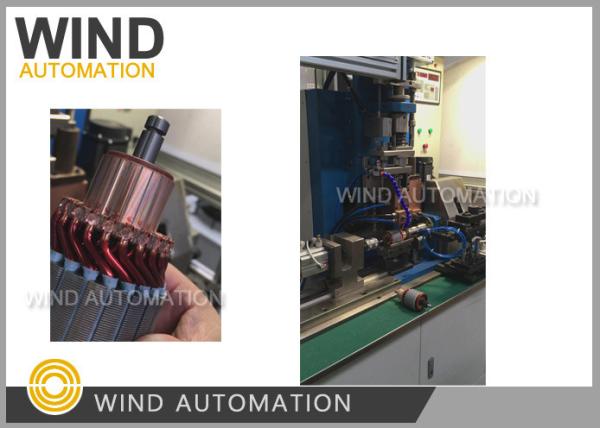

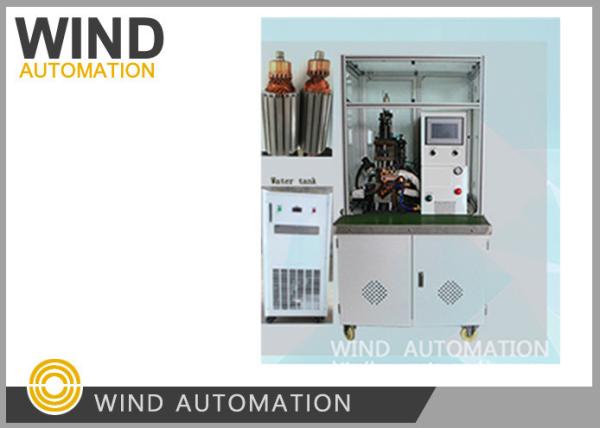

This spot welder is designed for fuse lead wires of armature to the commutator sections. The machine performs automatic fusing process after work piece loaded. It has a strong applicability and wide application. Inverter control system ensures the high quality of each single weld.

(1) Specification
Rotor OD <90mm
Spindle OD 6~12mm
Slot number 1-99
Productivity 1s/slot
Air source >0.5 MPa
Input Power Source AC 380V
Weight 1200 KG
Dimension 1200mm × 1100mm × 1700mm


(2)Application
This machine is suitable for starter rotors, automotive car motor.

(3) Features
Water cooling of the commutator bars prevents overheating
Suitable for any type of commutator
Automatic servo controlled indexing and initial positioning of the armature
Temperature control system monitors the temperature of the joint during welding
High quality level of the commutator fusing process
Displays diagrams of the fusing temperature, electrode force and indentation for each weld and for the whole armature.
Fully automatic fusing cycle after loading of the armature
Constant current and constant pressure control throughout entire welding procedure.
Quick and easy readjustment for other types of armatures
Can be customized accordingly

(4)Machine configuration
Mitsubishi PLC and servo motor
DC welding controller and inverter (110KVA)
Industrial cooling machine
Weinview touch screen
AIRTAC cylinder, SMC magnetic switch
Valve and pneumatic unit (triple piece)
Schneider low voltage electrical switch, master switch
