Advanced Industrial Portable Digital X Ray Machine For Accurate NDT Inspection In Petrochemical Industry

Main introduction:

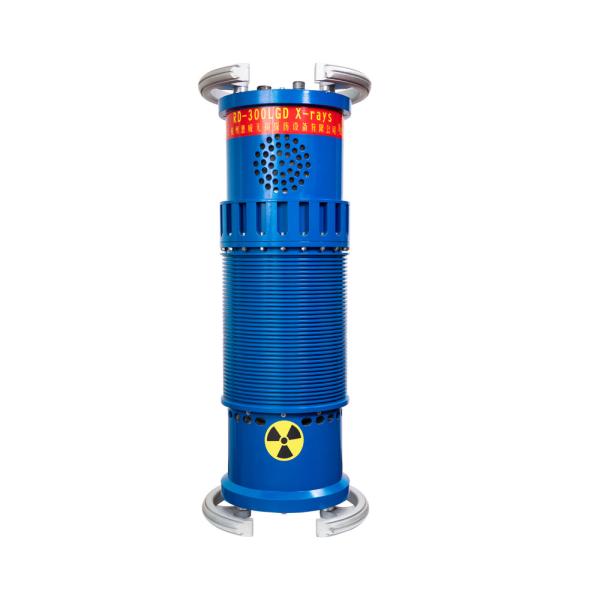

RD-300LG,the new model developed in 2021,with 300kv ceramic tube and directional or panoromic angle option. In China mainland market, the high working rate 4:1, and for overseas fields, 3:1. As one model of high quality standard x ray flaw detectors in P.R.China, the penetration thickness of A3 steel is 66mm. Widely used for petroleum oil & gas piping delivery inspection. ndt x-ray equipment

300KV directional or panoromic ceramic tube;
High Efficiency
30 minutes continuous working time, 3:1 working rate.
Automatic Door Closed Function
In working condition, door closed for operators' health and safety.
Strong penetration
80mm A steel penetration, very strong !
SF6 gas Insulation, anoid air cooling system.
Eco-friendly and user-friendly design;
Security and health to NDT operators;

RD-300LG Technical Parameter

Item	Technical Data
	AC Power	AC 220V+/-10%, 50Hz
Output	Tube current	5mA
	High voltage transfer input voltage fluctuation	+/- 1%

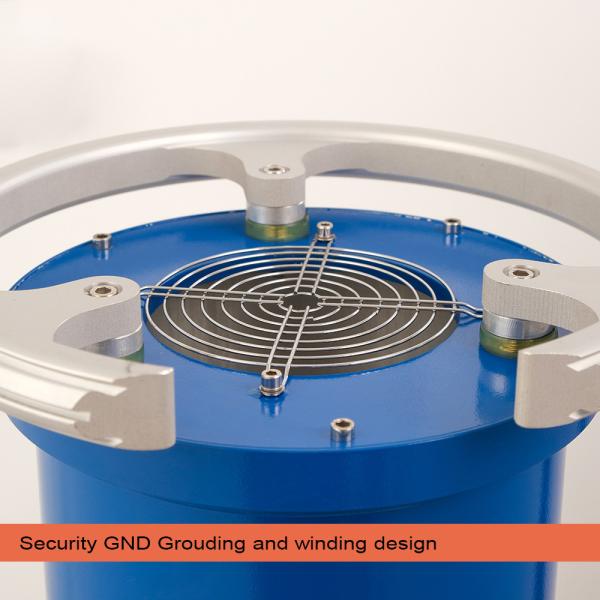

X Ray Generator	Cooling method	Force air cooling
	Insulated method	SF6 gas insulation
	Soft working pressure (20ºC)	0.35~0.45Mpa
Working Condition	Temperature	-30-40ºC
	Relative Humidity	<85%
	Altitude	1000m
Max Penetration Condition	Steel	A3(mm)
	Focal length	600m
	Exposure	≤30mAmin
	Film	Double-sided lead foil sensitization
	Darkroom treatment	20+/-2ºC, 5min
	Optic density	D≥2.0
The controller	Size
	Weight
	Timing error	5min +/- 10%
Working Rate	Working & rest 2:1 working rate, the max exposure time 9.5min

FAQ

Q1. Are you a factory or a trading company?
We are a factory with 35 years of experience.

Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2)According to customer order, the quantity still can be negotiated and we will product immeditaly if we dont have stock.

Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

Company profile

HUIWEI NDT EQUIPMENT Co.,Ltd, A factory which is a professional NDT Equipment factory established in 1993 certified ISO9001,ISO45001,ISO 14001 and verified by SGS.
We are a factory & enterprise high tech expertise and China TOP 1 quality manufacturing company, our service including reasearch&development, manufacturing, sales and rent, etc..
