X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
X Ray Pipeline Crawler 4WD Industrial Xray Equipment For Welds RD-2805TH
Specifications
Brand Name :
HUIWEI
Model Number :
RD-2805TH
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
12000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Product name :
Industrial x ray testing RD-2805TH,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
40mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
150-280kv
Exposure time :
5 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
ControllerWeight :
12kg
Focus Spot :
1.0*2.4
Generator Weight :
27kg
Description

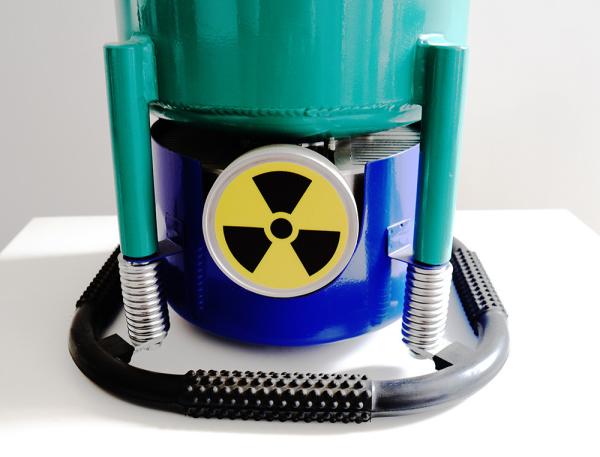

X Ray Pipeline Crawler 4WD Flaw Detector Ndt X Ray Equipment For Welds RD-2805TH

Main introduction:

RD-2805 is an X-ray machine with automatic intelligent training machine control system. Its biggest feature is its high intensity anti-interference ability. Its working mode is continuous 4:1 working exposure, and the maximum exposure time is 15 minutes. This series of models is divided into directional and circumferential radiation models. The radiation angle of the directional machine is 40 ± 5 °, the circumferential radiation angle is 360 °, and the maximum penetration of A3 steel thickness is 45mm.

This model is a classic model for field and aerial operations with small size, light weight (generator weight 26kg), strong penetration ability and high stability.

Main uses:

Applicable to the inspection of the processing and welding quality of hull, pipeline, high-pressure vessel, boiler, aircraft, vehicle, bridge and other materials, parts and components, internal defects, and the processing quality of various light metals, rubber, ceramics, etc. by the industrial departments of national defense, shipbuilding, petroleum, chemical, machinery, aerospace and construction.

RD-2805TH technical parameters

Project

RD-2805TH

input

Input power

Single-phase 50Hz AC 220± 10% V

Power supply capacity

No less than 2.0 KVA

output

X - ray tube voltage

150-280 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

1.0× 2.4

X-ray irradiation range

360°*25°

Ray generator

working pressure

Cooling mode

Insulation way

0.45MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

Φ280mm´280mm´620mm

27

Maximum penetration

Thickness steel A3(mm)

40 mm Fe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 2.5:1 Work and rest,Longest continuous exposure time 15mins

FAQ

1. Is your Company the Manufacturer or a Trading Company?

We are a manufacturer of NDT x ray equipment in China with experience engineer working over 30 years.

2. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.

3. Do you have any products that approved by ISO or CE?

Yes, all of our products were strictly approved by ISO and CE, and our HUIWEI products can be imported to the overseas market.
