Portable Digital X Ray Radiography Non Destructive Testing For NDT Field Oil Industry
Portable Digital X Ray Radiography Non Destructive Testing For NDT Field Oil Industry
Specifications
Brand Name :
HUIWEI
Model Number :
RD-1803T
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
17000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Power supply :
AC220V±10%
Function :
steel defect,NDT inspection welding
Color :
blue and white
Max.penetration :
55mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
170-350kv
Exposure time :
15 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
Focus Spot :
2.5*2.5
Generator Weight :
34kg
Power Source :
Electricity
Description

2025 BEST SELLER CHINESE PORTABLE DIGITAL DENTAL X RAY MACHINE FOR NDT FIELD OIL INDUSTRY

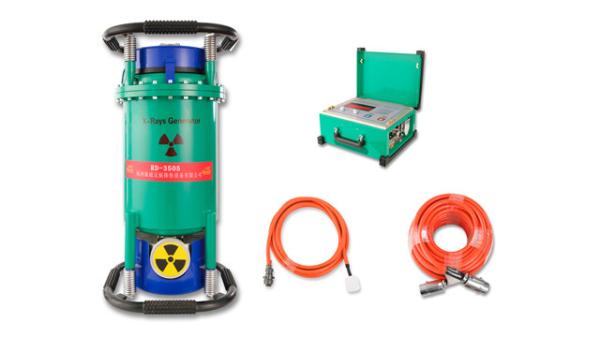

RD-3505 the technical parameters

Project

RD-3505

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

170~ 350 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

55 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins

Key Features of RD Series X-ray Flaw Detectors

1. Portable & User-Friendly:Designed for lightweight mobility, ensuring easy transportation and straightforward on-site operation.

2. Enhanced Radiation Safety:

◦ Includes a delay function to allow operators to retreat from hazardous areas before activation.

◦ Equipped with a comprehensive protection system (over-KV, low/mA, over-temperature) with audible-visual alarms.

3. Intelligent Thermal Management:

◦ Built-in over-temperature protection for the X-ray generator.

◦ Maintains a 1:1 radiation-to-cooling time ratio for consistent performance and longevity.

4. Robust Field Adaptability:

◦ Superior anti-interference capability, supported by a motor system for reliable operation in off-grid environments.

◦ Automatically performs hardware and software self-checks upon startup to ensure readiness.

5. Operator-Centric Design:

◦ Exposure parameters adjustable via intuitive keypad controls; gradual high-voltage ramp protects the generator.

◦ Durable construction enables convenient local operation and simplifies maintenance procedures.
