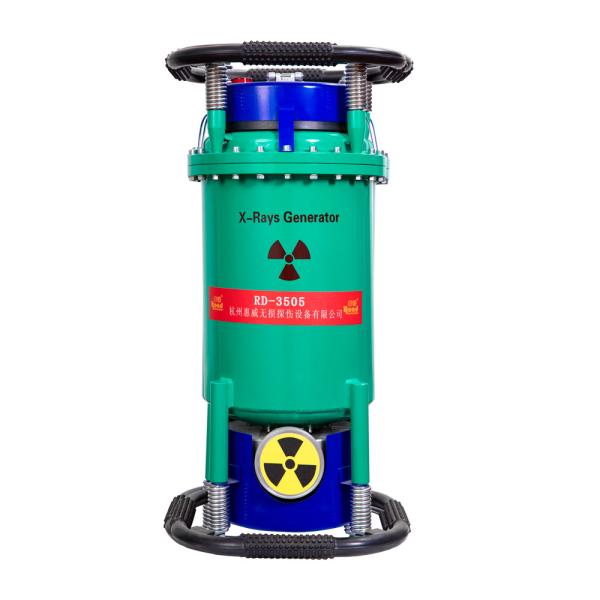

Super Light Portable X Ray Flaw Detector For Welding With 2.5mm Focus Spot Design RD-3505
Super Light Portable X Ray Flaw Detector For Welding With 2.5mm Focus Spot Design RD-3505
Specifications
Brand Name :
HUIWEI
Model Number :
RD-1803T
Certification :
ISO 9001, CE
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 set
Price :
17000usd/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500sets within one month
Delivery Time :
15working days
Packaging Details :
Standard export plywood package
Product name :
Industrial x ray testing RD-3505,x-ray welding machine ndt,X-ray Inspection Systems,NDT industrial film processing machine,industrial NDT equipment NDT x ray testing machine
Warranty :
12 Months
Usage :
spaceflight industry, welding engineering industry, shipbuilding industry inspection
Power supply :
AC220V±10%
Application :
Industrial field
Function :
steel defect,NDT inspection welding
Color :
Stainless Steel,Silver gray,blue and white
Max.penetration :
55mm(A3 STEEL)
Film type :
Any kinds of industrial film
Voltage :
170-350kv
Exposure time :
15 minutes
Name :
NDT industrial x-ray machine
Tube current :
5mA
Weight :
34kg
Focus Spot :
2.5*2.5
Generator Weight :
34kg
Description

PRODUCT DESCRIPTION


Super Light Portable X Ray Flaw Detector Machine for Welding with and 2.5mm Focus Spot Design RD-3505

WHAT IS NDT RT:

NDT RT stands for Non-Destructive Testing using Radiographic Testing. It is a method of examining the internal structure of materials or components without causing damage, using penetrating radiation like X-rays or gamma rays. This technique helps identify internal flaws and defects, ensuring the integrity and safety of various structures and components across different industries



RD-3505 the technical parameters

Project

RD-3505

input

Input power

Single-phase AC150-250V 50/60Hz

Power supply capacity

No less than 3.0 KVA

output

X - ray tube voltage

170~ 350 KVp

X ray tube current

5mA

mA Stability degree

± 1%

Ray tube

Focal size

2.5× 2.5

X-ray irradiation range

40±5°

Ray generator

working pressure

Cooling mode

Insulation way

0.35MPa ~ 0.5Mpa

Anode ground connection radiator Strong wind cold

Gas insulation SF6

Size

weight (kg)

φ320×640

34

Maximum penetration

Thickness steel A3(mm)

55 mmFe(5 min)

condition

focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5

sensitivity

superior 2%

controller

Size

weight

Circuit

325×270×180

< 9(kg)

Automatic control and protection

Environment

working temperature relative humidity

Altitude

-30°~ +40°

Not more than 85%

Not higher 1500m

methods

fully automatic 4:1 Work and rest,Longest continuous exposure time 15mins


FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. why should you buy from us not from other suppliers?
HANGZHOU HUIWEI NDT DEVICES CO.,LTD is a professional manufacturer specilizing in NDT equipment for 30 years long, integrating development and manufacturing in-house. and it is one of companies strong supported by country.

3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Escrow;
