Specifications
Model Number :
MBF40-11N
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
330*200*660mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1150*1970*1460mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description
Advanced 1100c Intelligent Nitrogen Box Furnace from Chitherm Mbf40-11n with Effective Chamber Dimensions of 330*200*660mm
1. Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 900ºC
  2. Max Temp.: 1100ºC
  3. Effective Dimensions: 330 × 200 × 660mm(W×H×D)

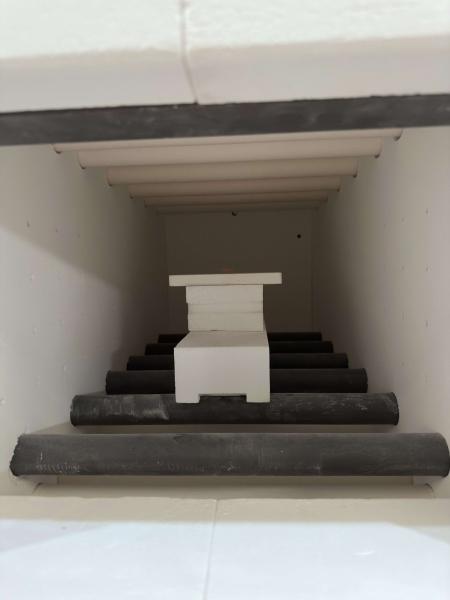

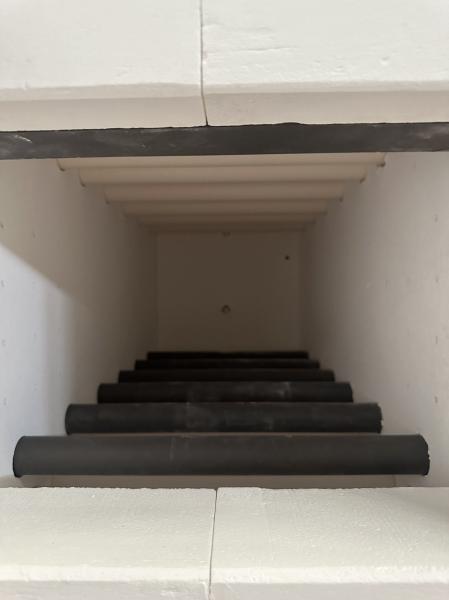

  4. Heating Method: SiC Rods
  5. Process Atmosphere: Nitrogen
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 800ºC test)
  8. Thermocouple: Type N
  9. Temperature control points: 3 points
  10. Temperature measurement points: 1 point
  11. Process Steps: 9 steps
  12. Oxygen Content: ≤ 20ppm+gas supply oxygen content
  13. Exhaust: One exhaust port with manual adjustment
  14. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  15. Max Heating Power: 25kW
  16. Insulation Power: ≤ 10kW
  17. Surface Temperature Rise: ≤ 35ºC
  18. Weight: about 700kg
  19. Furnace Dimensions: about 1150*1970*1460mm (W×H×D);
  20. Appearance Color: light gray
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements SiC Rods 1 Set
Thermocouple WATLOW/THERMOWAY, Type N 1 PC
Temperature Controller Azbil 1 Set
Monitor Proface touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 4 - 12m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 20m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 250Kg/m2 .
4.5 Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×2000mm×3000mm (W×H×D), installation area greater than 5m2.
