Specifications
Model Number :
MBF60-10
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
350*300*550mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
860*1750*1220mm
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description

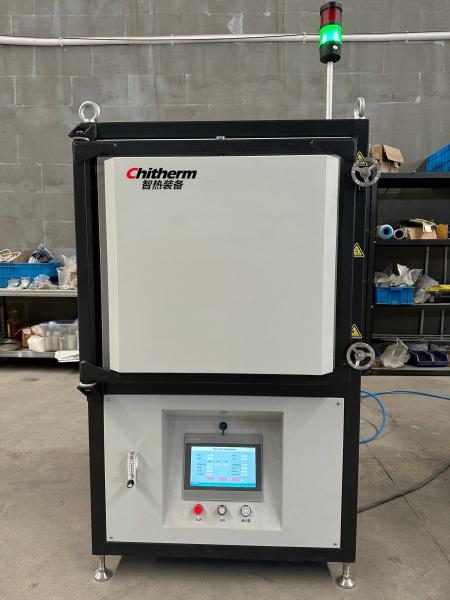

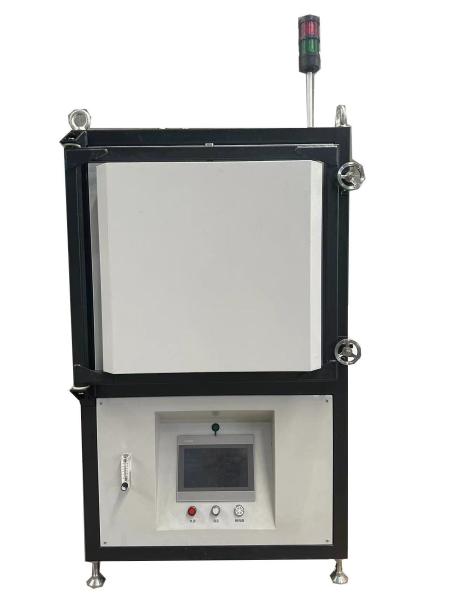

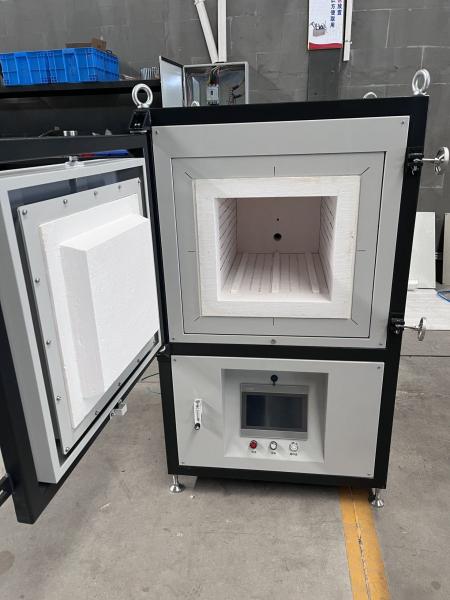

Air Atmosphere 860*1750*1220mm Chitherm Mbf60-10 Sintering Box Furnace for Industrial Applications
1. Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 900ºC
  2. Max Temp.: 1000ºC

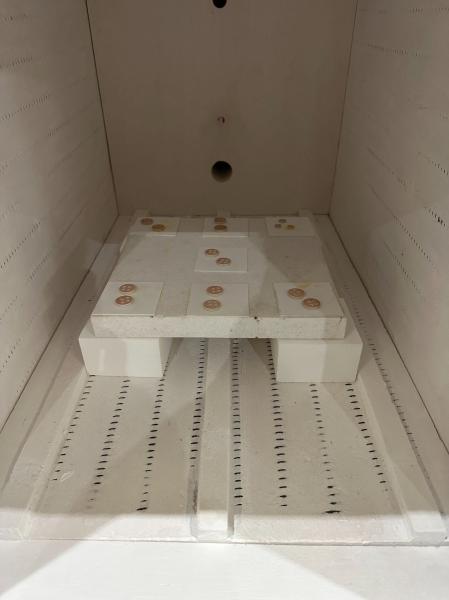

  3. Effective Dimensions: 350 × 300 × 550mm(W×H×D)
  4. Heating Method: Heating Plate within resistance alloy wires
  5. Process Atmosphere: Air
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 900ºC test)
  8. Thermocouple: Type K
  9. Temperature control points: 1
  10. Temperature measurement points: 1 point
  11. Process Steps: 9 steps
  12. Exhaust: One exhaust port with auto cover
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  14. Max Heating Power: 16kW
  15. Insulation Power: ≤ 8kW
  16. Surface Temperature Rise: ≤ 35ºC
  17. Weight: about 400kg
  18. Furnace Dimensions: about 860×1750×1220mm (W×H×D);
  19. Appearance Color: light gray
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Heating Plate within resistance alloy wires 1 Set
Thermocouple WATLOW/THERMOWAY, Type K 1 PC
Temperature Controller CHINO 1 Set
Monitor Proface 8" touch screen 1 Set
Spares SSR 1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3 - 6m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 250Kg/m2 .
4.5 Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 1800mm×1850mm×3000mm (W×H×D), installation area greater than 3.5m2.
