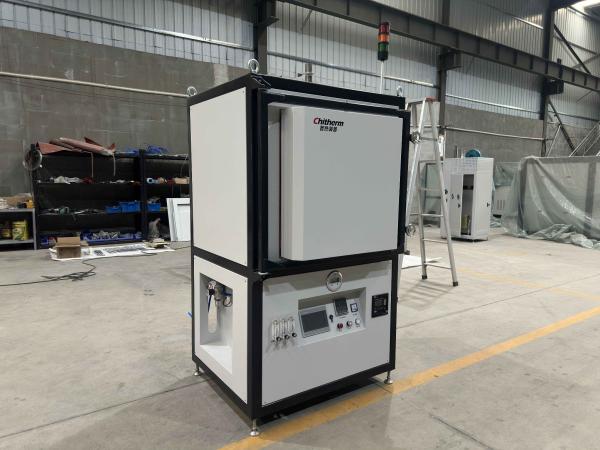

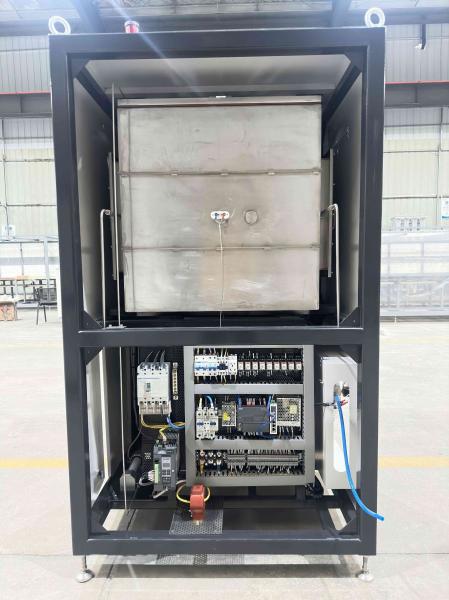

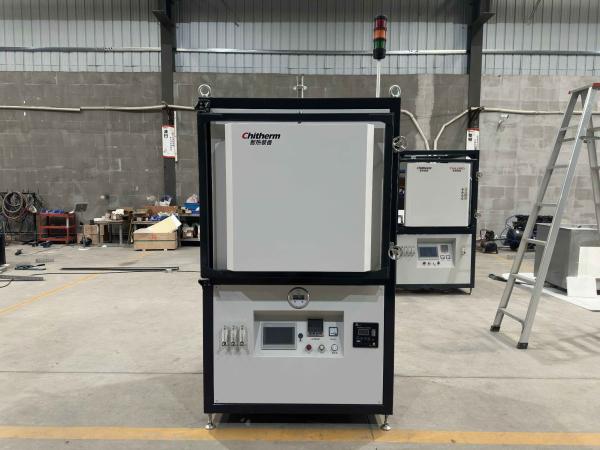

Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Nitrogen Controlled Atmosphere Box Furnace For Ceramic Filter Sintering 1000C
Specifications
Model Number :
MBF20-11N
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Nitrogen/Air
Effective Chamber Dimensions :
330*200*330mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1300*1900*1160mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Description
Ceramic Sintering Chitherm Mbf20-11n Controlled Atmosphere Box Furnace 50 Sets/Year Capacity and Performance

1. Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 1000ºC
  2. Max Temp.: 1100ºC
  3. Effective Dimensions: 330 × 200 × 330mm(W×H×D)
  4. Heating Method: SiC Rods
  5. Process Atmosphere: Nitrogen

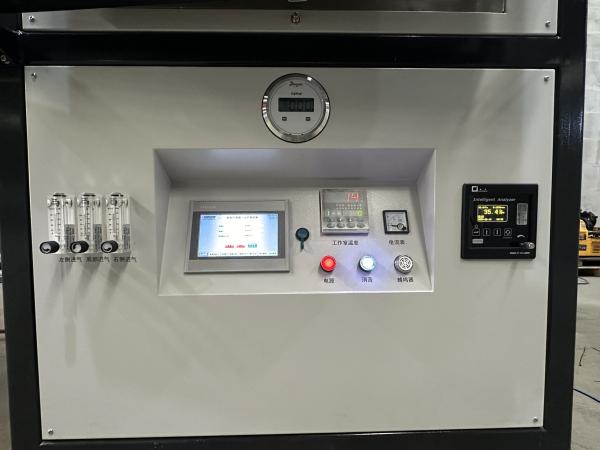

  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1000ºC test)
  8. Thermocouple: Type N
  9. Temperature control points: 3 points
  10. Temperature measurement points: 1 point
  11. Process Steps: 4×16 steps
  12. Oxygen Content: ≤ 20ppm+gas supply oxygen content
  13. Exhaust: One exhaust port with manual adjustment
  14. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  15. Max Heating Power: 12kW
  16. Insulation Power: ≤ 5kW
  17. Surface Temperature Rise: ≤ 35ºC
  18. Weight: about 650kg
  19. Furnace Dimensions: about 1300*1900*1160mm (W×H×D);
  20. Appearance Color: light gray
3. Delivery List

Item Note QTY
Basic Compositions Furnace
1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements SiC Rods 1 Set
Thermocouple WATLOW/THERMOWAY, Type N 1 PC
Temperature Controller Azbil 1 Set
Monitor Proface touch screen 1 Set
Spares SSR
1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 2 - 5m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 20m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 250Kg/m2 .
4.5 Power conditions: capacity greater than 16kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m2.
