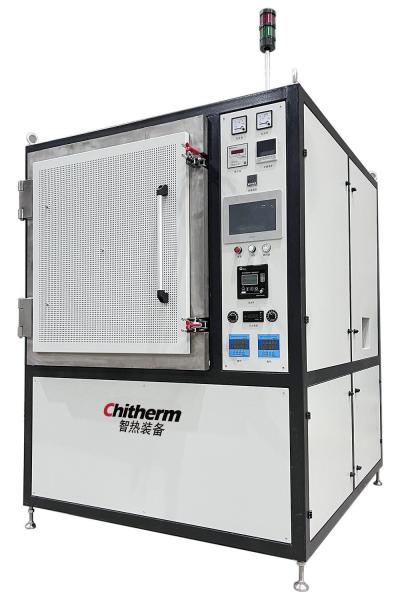

400*400*500mm W*H*D Effective Chamber Chitherm Hbf80-17nh Htcc Sintering Furnace for Precise Sintering Processes
1. Applications:
Mainly used for High Temperature Co-fired Ceramic (HTCC) in high temperature nitrogen and hydrogen atmosphere co-firing process, and also can be used for other related products in high temperature atmosphere sintering process.

2. Mainly Specifics:
  1. Rated Temp.: 1600ºC
  2. Max Temp.: 1700ºC
  3. Effective Dimensions: 400 × 400 × 500mm(W×H×D)

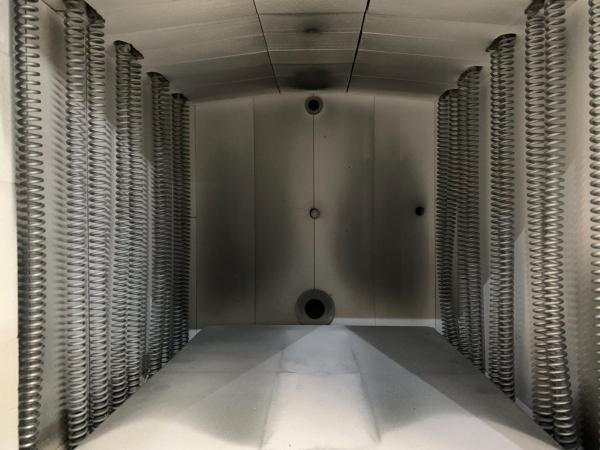

  4. Heating Method: U-shaped molybdenum coil
  5. Process Atmosphere: nitrogen/hydrogen (optional humidification function)
  6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
  7. Temperature Uniformity: better than ±5ºC (1600ºC insulation 2 small time and space furnace test)
  8. Thermocouple: B Type
  9. Temperature control points: 1
  10. Temperature measurement points: 1 point
  11. Number of Temp. Profiles: 19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
  12. Exhaust: One exhaust port with ignition device
  13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
  14. Max Heating Power: 25kW
  15. Insulation Power: ≤15kW
  16. Heating Rate: RT - 1000ºC ≤ 5ºC/min, 1000 - 1600ºC ≤ 2ºC/min
  17. Surface Temperature Rise: < 35ºC
  18. Weight: about 1600kg
  19. Furnace Dimensions: about 1570×2050×1830mm (W×H×D);
  20. Appearance Color: light gray

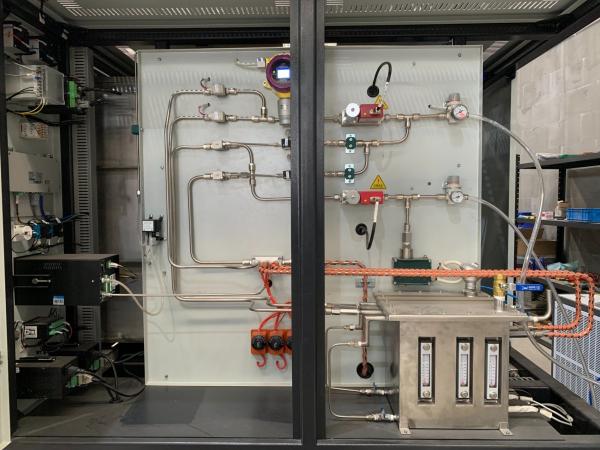

Industrial Chamber hydrogen Atmosphere Box Furnace For Precise HTCC Sintering
3. Delivery List
Item Note QTY
Basic Compositions Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts Heating Elements Molybdenum Coil 1 Set
Thermocouple Watlow, THERMOWAY, B Type 1 PC
Temperature Controller CHINO 1 Set

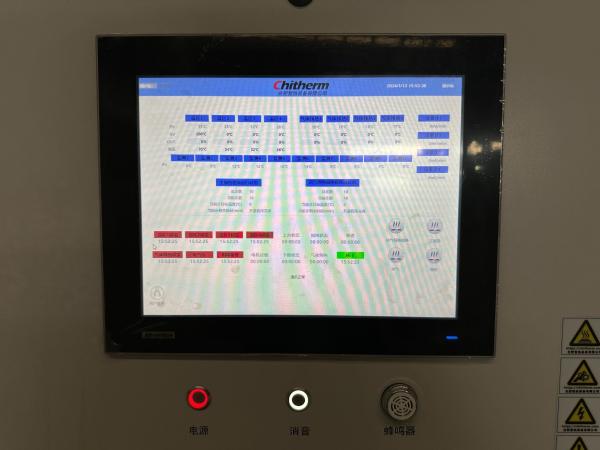

Monitor Proface 10" touch screen 1 Set
Vacuum Pump VALUE, 100m³/h 1 Set
Oxygen Analyzer CHANG'AI 1 Set
Mass Flowmeter HORIBA 2 Sets
Flow Indicator HORIBA 2 Sets
Dew Point Probe VAISALA 1 Set
Spares Heating Elements Molybdenum Coil 1 PC
4. Optional Items
Item Note QTY
Humidifier humidifying chambers: 2 (nitrogen, hydrogen)
Power: 2.5kW
Control Mode: PID Control		 1 Set
Hydrogen Alarm System Detection Range: 0 - 5000ppm
Resolution: 1ppm		 1 Set
Gas Treatment Equipment
(Connect to Furnace Exhaust)		 Burning Temp.: 750 - 850ºC
Max Power: 12kW
Burning Method: Electric heating
Control Mode: PID Control
Max Process Capacity: 50Nm3/h		 1 Set
Chiller Standard cooling capacity: 2451Kcal/h
Power Supply: 220V, 50Hz(TBD)
Power: 1.22kW
Pipe Type: 1/2"
Lift: 20m		 1 Set

5. Facility Requirements
5.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
5.2 Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m3 /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 0.6 - 6m3 /h;
5.3 Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
5.4 Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5.5 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m3 /h;
5.6 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m2 .
5.7 Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
5.8 Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 7m2.
