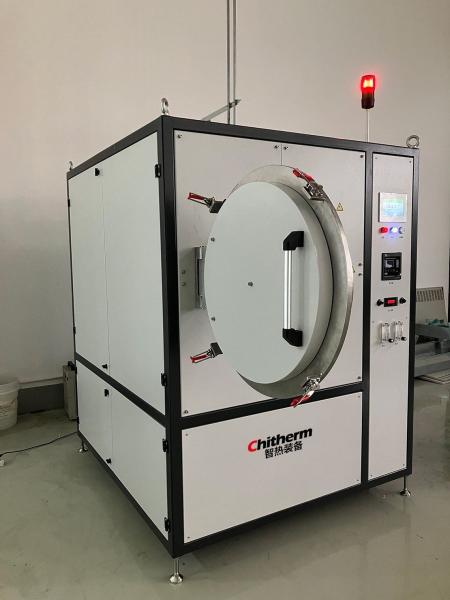

Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
Specifications
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Model Number :
Hwf100-10nh
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Nitrogen/Hydrogen
Effective Chamber Dimensions :
500*500*650mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1500*1950*2200mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
Electric Furnace 500*500*650mm W*H*D for Industrial Applications Hwf100-10nh Atmosphere Sintering Furnace Tank Furnace
1.Application field:

Mainly used for sintering processes of related materials under the protection of nitrogen or nitrogen-hydrogen atmospheres, and can also be applied to sintering processes of related materials under protective atmospheres.

2. Technical Specification:
  1. Rated Temp.: 900ºC
  2. Max Temp.: 1100ºC
  3. Atmosphere: N2, H2
  4. Oxygen Content: Measured by O2 content analyzer

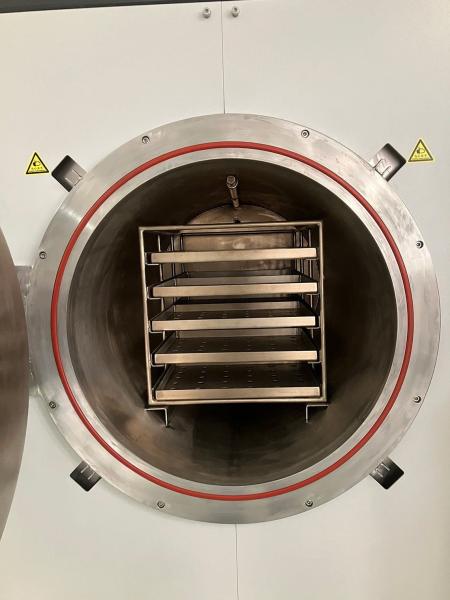

  5. Muffle Material: SUS 310S
  6. Vessel dimensions: φ630mm×900mm(d×D)
  7. Effective Chamber Dimensions: 400×400×650mm(W×H×D).
  8. Cooling method: Natural cooling.
  9. Heating element: FEC ceramic fiber heater.
  10. Temperature control stability: ±1°C, with PID parameter self-tuning function.
  11. Temperature uniformity: ±5°C (tested under no-load condition at 900°C for 1 hour).
  12. Temperature control thermocouple: K-type thermocouple.
  13. Temperature control points: 3 independent control points (front, middle, rear).
  14. Temperature control segments: 9 segments.
  15. Sintering atmosphere: Nitrogen + Hydrogen.

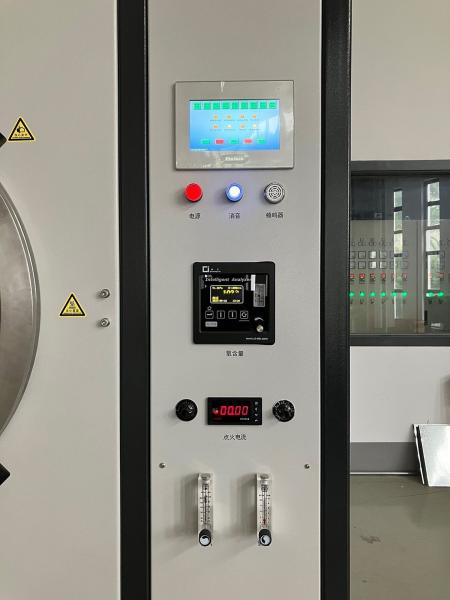

  16. Oxygen content detection: Equipped with a micro-oxygen analyzer to monitor furnace oxygen content.
  17. Oxygen content: 20ppm + oxygen content of gas source.
  18. Exhaust gas treatment: Ignition device installed at the exhaust port to burn residual hydrogen in exhaust gas.
  19. Alarm protection: Over-temperature, thermocouple break, low air pressure, low water pressure, ignition alarm, and over-temperature alarm with power cutoff protection.
  20. Design power: 30kW.
  21. Typical no-load heat preservation power: ≤15kW.
  22. Heating rate: ≤5°C/min.
  23. Surface temperature rise: <35°C.
  24. Weight: 1100kg
  25. Appearance Colour: Light Grey
  26. External Dimensions: 1500mm×1950mm×2200mm (W×H×D)

Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components micro-oxygen analyzer 1 SET
Temperature Controller 1 SET
Thermocouple Type K 3 PCs
Spare Parts SSR 1 PC

Nitrogen Atmosphere Sintering Electric Muffle Furnace Tank for Ceramic Sintering
4. Facility Requirements
  1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
  2. N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
  3. H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m3/h
  4. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 1-3L/min
  5. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10m3/h
  6. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2;
  7. Power Condition(TBD): capacity > 40kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  8. Installation Site: 3200mm×2500mm×3000mm(D×W×H), with an installation area greater than 8m2.
