1100ºC Hwf100-10nh Atmosphere Sintering Furnace Nitrogen Electric Muffle Furnace
1100ºC Hwf100-10nh Atmosphere Sintering Furnace Nitrogen Electric Muffle Furnace
Specifications
Brand Name :
Chitherm
Model Number :
Hwf100-10nh
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
Customized
Delivery Time :
Customized
Packaging Details :
Customized
Fuel :
Electric
Atmosphere :
Nitrogen/Hydrogen
Effective Chamber Dimensions :
500*500*650mm(W*H*D)
Origin :
China
HS Code :
8514101000
Place Style :
Vertical
Description
1.Application field

This equipment is specifically designed for medium-temperature heat treatment processes (up to 1000°C) of electronic components, including the atmospheric processing of electronic ceramics, dielectric materials, and conductive elements in nitrogen/hydrogen environments. The system provides precise thermal control for sensitive electronic material treatments while maintaining optimal atmospheric conditions.

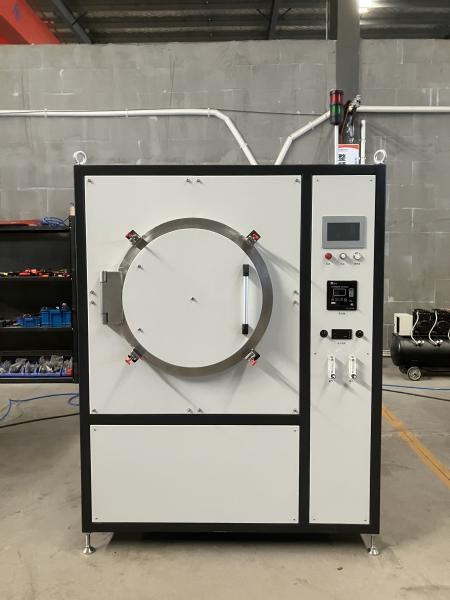

1100ºC Hwf100-10nh Atmosphere Sintering Furnace Nitrogen Electric Muffle Furnace


2. Technical Specification:

Model Number: HWF100-10NH
The dimensions of the tank are 630 × 900 (d × D).
The effective dimensions of the furnace chamber are 400 × 400 × 650 mm (W × H × D).
Maximum operating temperature: 1000°C
Long-term working temperature: 900°C
Heating method: FEC ceramic fiber heater
Refractory thermal insulation, alumina products
Cooling method: in-furnace cooling
Number of temperature control points: Three independent temperature control points at the front, middle, and rear.
Temperature control instrument: Japanese YAMATA intelligent temperature controller
Number of program segments: 9
Operating power supply: 380±10%V power supply, 3-phase 5-wire, 50Hz
Maximum power: 30kW
Thermal insulation power: ≤15kW

3. FAQ

  1. ​​Product Range​​: We manufacture premium thermal processing equipment including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

  2. ​​Pre-Sales Support​​: Our team provides expert consultation services and customized solutions to help clients select optimal equipment configurations for their specific thermal processing requirements.

  3. ​​Competitive Advantages​​: As an integrated R&D/manufacturing/sales enterprise, we leverage patented technologies and core engineering capabilities to deliver innovative furnace solutions with superior performance characteristics.
