HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
Specifications
Brand Name :
Chitherm
Model Number :
Hwf100-10nh
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Nitrogen/Hydrogen
Effective Chamber Dimensions :
500*500*650mm(W*H*D)
Transport Package :
Wooden Packaging
Specification :
1500*1950*2200mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
The HWF100-10NH Atmosphere Sintering Furnace adopts high-quality heating elements and a multi-layer fiber insulation structure, equipped with a high-precision PID intelligent control system. The entire process of heating, holding and cooling is programmable, with a temperature control accuracy of up to ±1℃. The furnace features excellent temperature uniformity, ensuring uniform heating of workpieces, effectively reducing deformation, cracking and performance fluctuations, and meeting high-standard sintering requirements.
The equipment is designed with an excellent sealing structure and vacuum replacement capability. It can be filled with inert gases such as nitrogen and argon or custom mixed atmospheres to form a stable and controllable protective atmosphere, which effectively isolates oxygen and impurities, fundamentally prevents high-temperature oxidation, decarburization and discoloration of materials, and ensures the sintered parts have a smooth surface, pure composition and stable performance.
The atmosphere and pressure inside the furnace can be precisely adjusted to adapt to the process curves of different materials.

Product Description

1.Application field:

Mainly used for sintering processes of related materials under the protection of nitrogen or nitrogen-hydrogen atmospheres, and can also be applied to sintering processes of related materials under protective atmospheres.

Detailed Photos

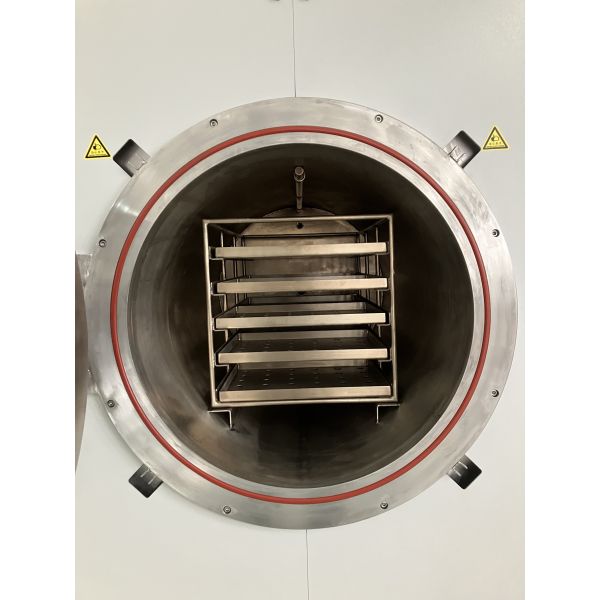

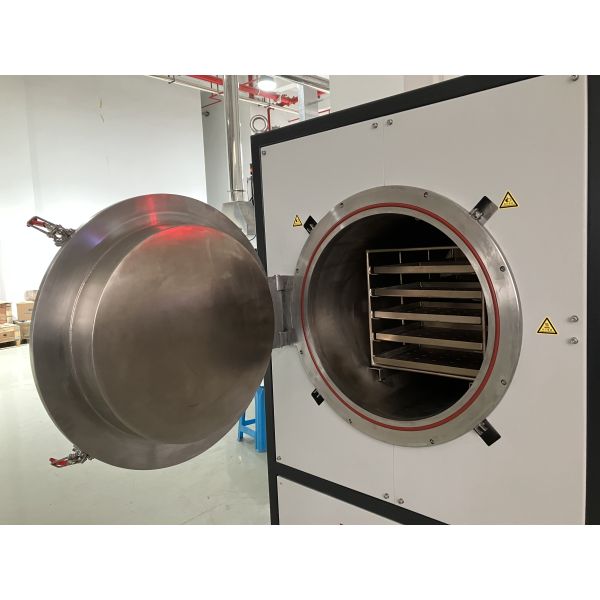

HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace


Product Parameters

2. Technical Specification:

Product Model: HWF100-10NH
Operating Temperature: 900°C
Maximum Temperature: 1000°C
Effective Chamber Size: 400×400×650mm (W×H×D)
Heating Element: FEC Ceramic Fiber Heater
Processing Atmosphere: Nitrogen/Hydrogen
Exhaust System: Exhaust port installed at the top of the chamber
Cooling Method: Natural cooling with the furnace
Temperature Control Points: Independent control at front, middle, and rear (3 points)
Temperature Control Segments: 9 segments
Temperature Stability: ±1°C, controlled by Yamatake Smart Program Controller with PID auto-tuning function
Temperature Uniformity: Better than ±5°C (tested at 900°C for 1 hour in an empty furnace)

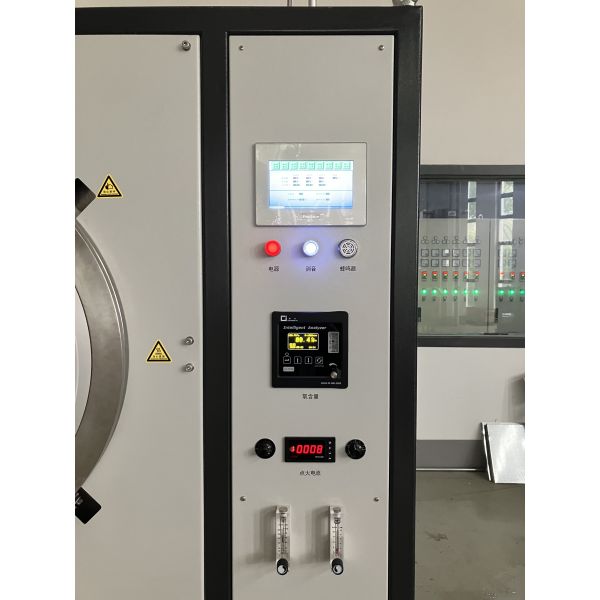

Control Method: Touchscreen + PLC centralized control
Alarm Protection: Audible and visual alarms for overtemperature and thermocouple breakage, with overtemperature alarm power-off protection; loud audible alarm
Surface Temperature Rise: ≤35°C
Maximum Heating Power: 30kW
Heat Preservation Power: ≤15kW
Power Requirements: Capacity above 40kVA, 3-phase 5-wire, 220/380VAC, 50Hz
Reference External Dimensions: 1500×1950×22000mm (W×H×D)

3. Delivery List
Table 1 Delivery list

Item Note Qty.
Basic Components Furnace
1 SET
inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components micro-oxygen analyzer
1 SET
Temperature Controller
1 SET
Thermocouple Type K 3 PCs
Spare Parts SSR
1 PC

Certifications

HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace

HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace

4. Facility Requirements

  1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
  2. N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
  3. H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m3/h
  4. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 1-3L/min
  5. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10m3/h
  6. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2;
  7. Power Condition(TBD): capacity > 40kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  8. Installation Site: 3200mm×2500mm×3000mm(D×W×H), with an installation area greater than 8m2.

    Packaging & Shipping

    HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace

    Company Profile

    Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

    Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc.

    We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.

    HWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering FurnaceHWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering FurnaceHWF100-10NH Type Atmosphere Sintering Furnace | Vacuum Atmosphere Sintering Furnace
